Design and function
Assembly/disassembly
5.1.2
Cooling module assembly
•
Position the welding machine on the module as shown in fig.
•
Turn the wing-tip handle clockwise (B2) to close the fastening.
•
Engage the locking hook in the recesses in the side walls of the welding machine.
•
Lay the wing-tip handle down flat (C2).
12

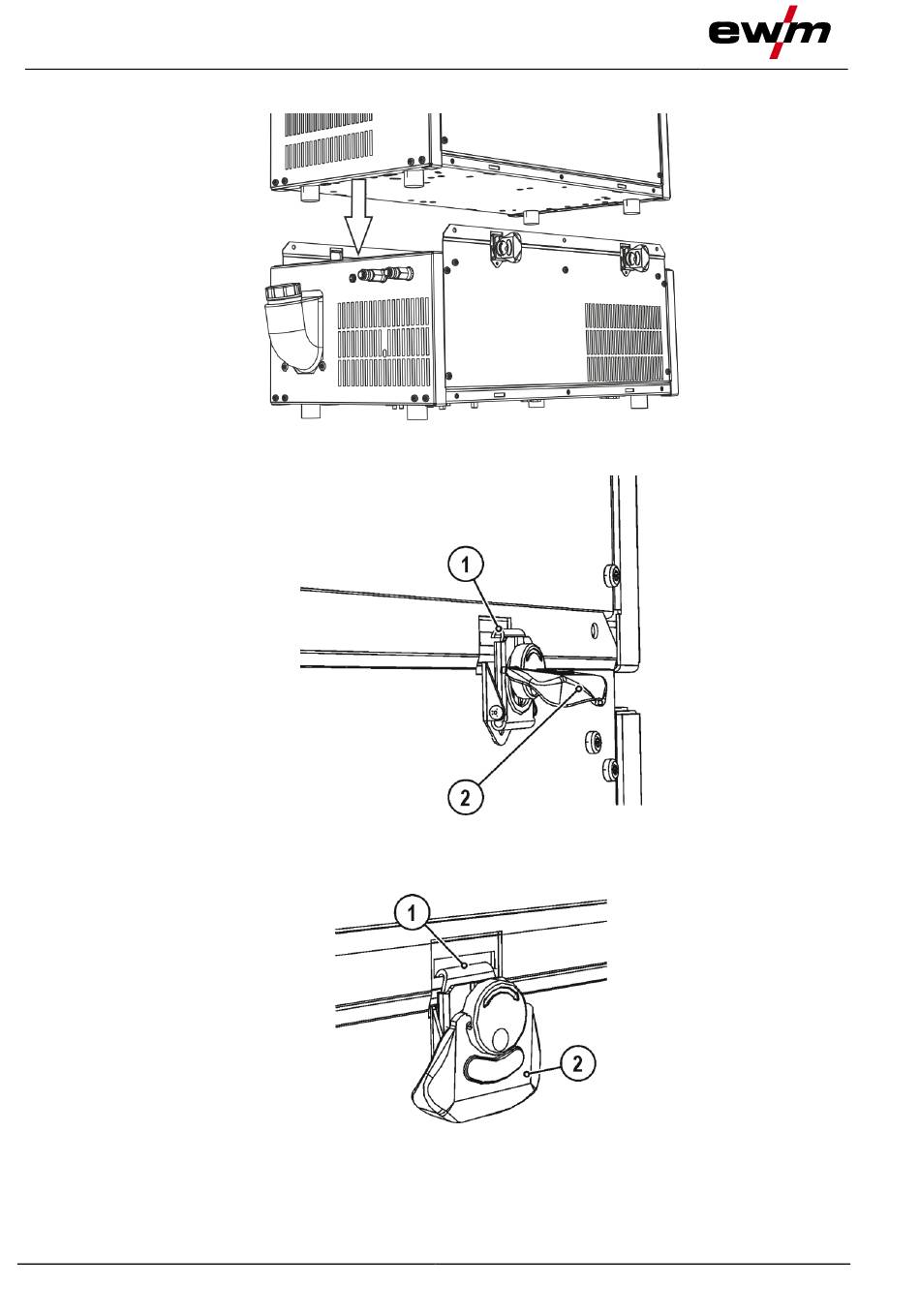

Figure 5-2
Figure 5-3
Figure 5-4
099-008268-EW501
29.06.2017
