ASSEMBLY INSTRUCTION

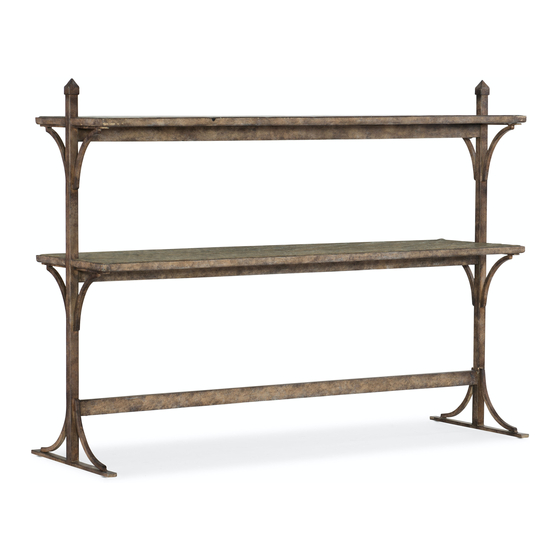

ITEM# 6960-85003-80 South 77 Metal and Wood Console
** Please make sure you have all parts indicated below prior to assembly.
This console is heavy and can best be assembled with the help of two or more people.

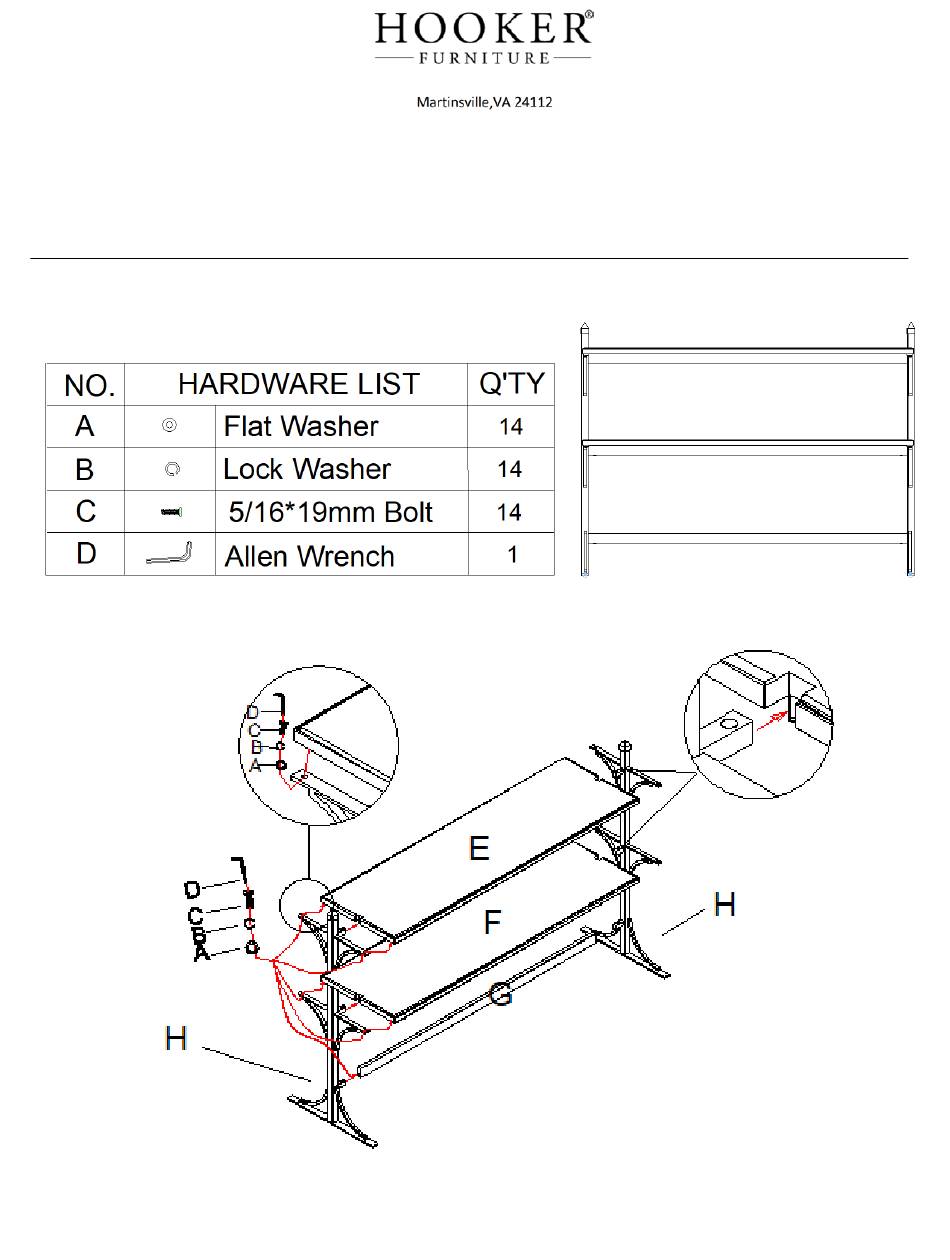

Diagram 1

1/2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the South 77 6960-85003-80 and is the answer not in the manual?

Questions and answers

Related Manuals for Hooker Furniture South 77 6960-85003-80

Summary of Contents for Hooker Furniture South 77 6960-85003-80

  • Page 1 ASSEMBLY INSTRUCTION ITEM# 6960-85003-80 South 77 Metal and Wood Console ** Please make sure you have all parts indicated below prior to assembly. This console is heavy and can best be assembled with the help of two or more people. Diagram 1...
  • Page 2 Diagram 2 Assembly Steps: 1. Place top panel (E), center shelf (F) and bottom stretcher (G) between metal frames (H) and make sure all pre-drilled holes are in alignment. (See Diagram 1) 2. Insert flat washers (A), lock washers (B) and bolts (C) through underneath of all pre-drilled holes at metal frames (H) to holes at top panel (E), center shelf (F) and bottom stretcher (G).
