ASSEMBLY INSTRUCTION
Item#:5820-75206-84

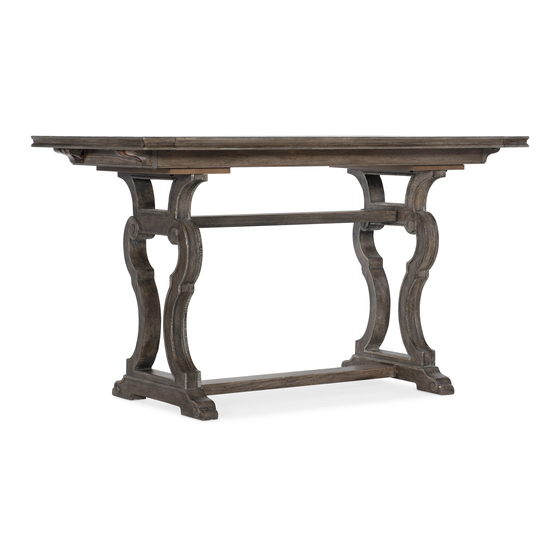

Friendship Table
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.

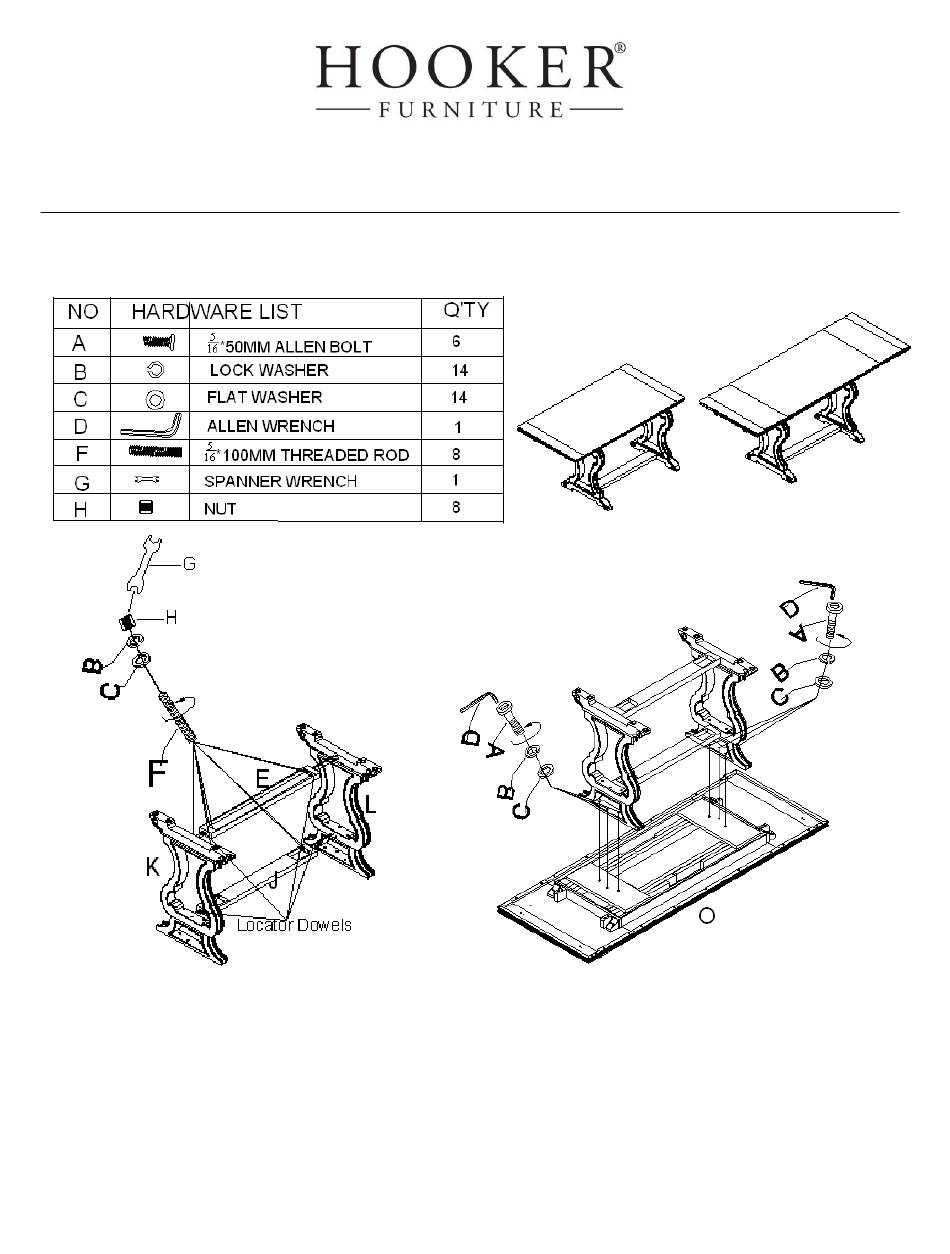

Diagram 1
Diagram 2
Note:
1. Leaves cannot be switchable. Follow numbers on leaves and top when assemble
2. Height of this table can be adjusted with or without extension block. (30" and 36" heights)
3.Please follow numbers on the side frames and letters on the top & bottom stretcher during
assembly.
1/3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5820-75206-84
Summary of Contents for Hooker Furniture 5820-75206-84
- Page 1 ASSEMBLY INSTRUCTION Item#:5820-75206-84 Friendship Table ** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people. Diagram 1 Diagram 2 Note: 1.
- Page 2 Assembly steps with extension blocks: 1. Put two side frames (K & L) upside down on a soft surface to prevent it from being scratched. 2. Place the ends of top stretcher (J) & bottom stretcher (E) into side frames ( K&L ) to make sure all pre-drilled holes are in alignment , first insert bolts (F), flat washers (C) and lock washers (B), nuts (H), tighten bolts by turning with spanner wrench (G) to assemble the top stretcher (J) (See Diagram 1).
- Page 3 Instruction for table leaves: 1. There are latches at the bottom of table top, turn off the latches as shown in Diagram 5. 2. Pull out table top as the arrow direction shown in Diagram 6. 3. Place table leaves between and push table tops together. 4.
