ASSEMBLY INSTRUCTION

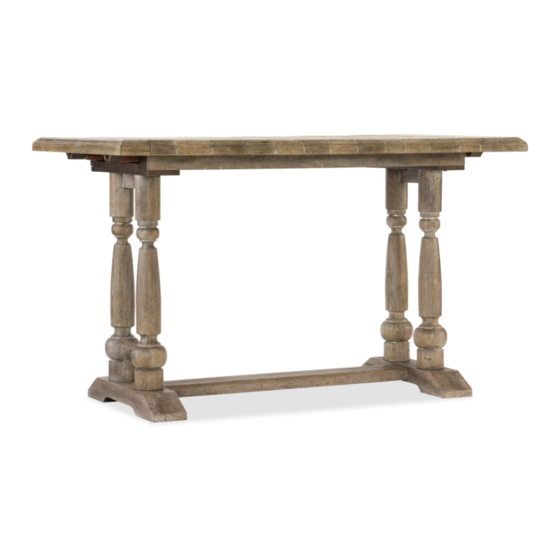

Item# 5750-75206-MWD Friendship Table
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Note:
Height of this table can be adjusted with or without extension block. (30" and 36" heights)
Assembly steps with extension blocks:
1 .Attach
mounting bridge

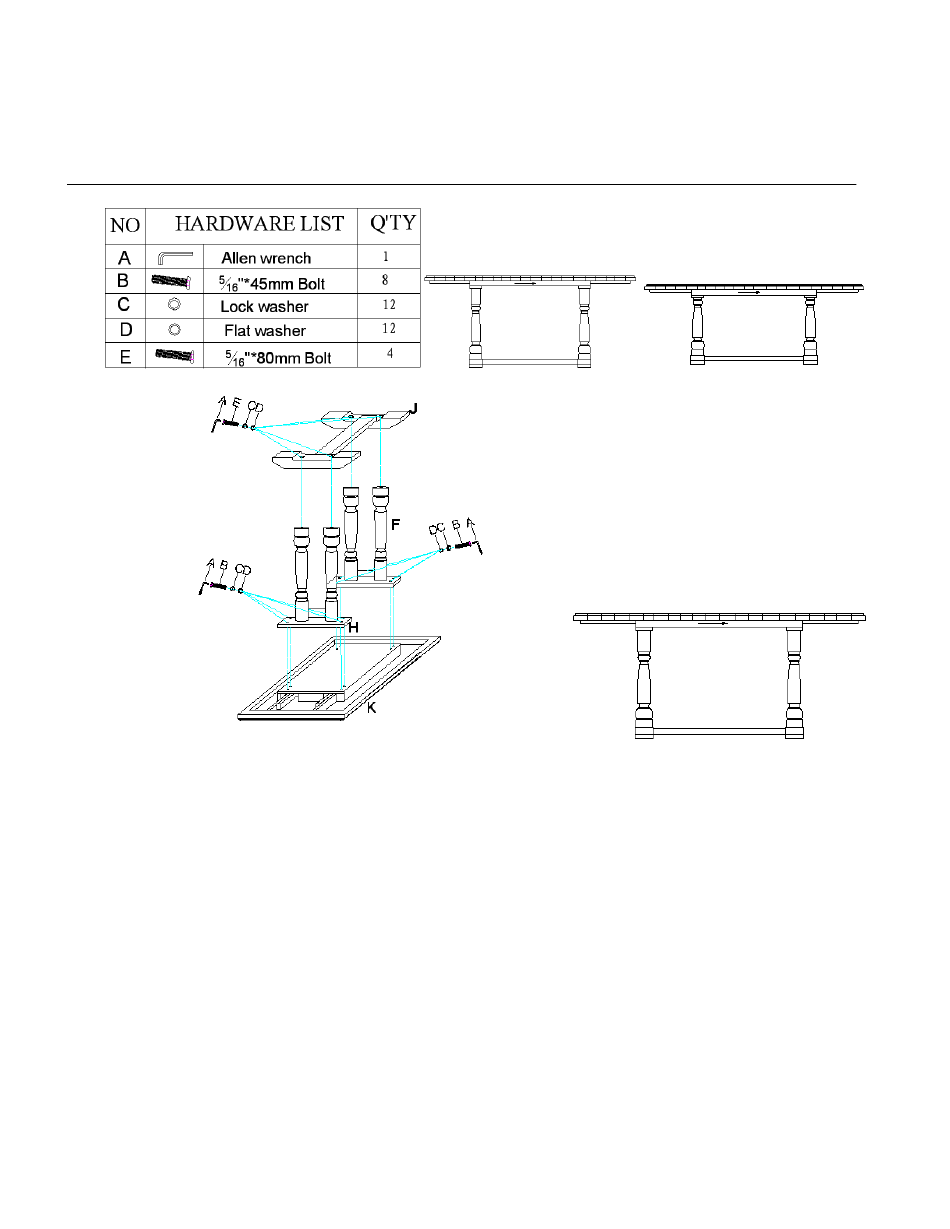

washers (C) and flat washers (D), tighten with allen wrench (A) (See Diagram 1)
2 .Attach
base frame
washers (D), tighten with allen wrench (A) (See Diagram 1)
3.Turn table upright.
Diagram 1
(H) with legs (F) to table top (K) by inserting bolts (B), lock
(J) to legs (F) by inserting bolts (E), lock washers (C) and flat
1/3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5750-75206-MWD
Summary of Contents for Hooker Furniture 5750-75206-MWD
- Page 1 ASSEMBLY INSTRUCTION Item# 5750-75206-MWD Friendship Table ** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people. Diagram 1 Note: Height of this table can be adjusted with or without extension block. (30” and 36” heights) Assembly steps with extension blocks: 1 .Attach...
- Page 2 Assembly steps without extension blocks: Diagram 2 Diagram 3 Diagram 4 Unscrew bolts (B), lock washers (C) and flat washers (D) from mounting bridge (H). Remove extension blocks (G) from legs(F) in counter clockwise direction with care. 3. Attach (H) to legs (F) by inserting bolts (B), lock washers (C) and flat mounting bridge washers (D), tighten with allen wrench (A) (See Diagram 3).
- Page 3 Instruction for table leaves: 1. There are latches at the bottom of table top, turn off the latches as shown in Diagram 5 Diagram 5 Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution.
