ASSEMBLY INSTRUCTION

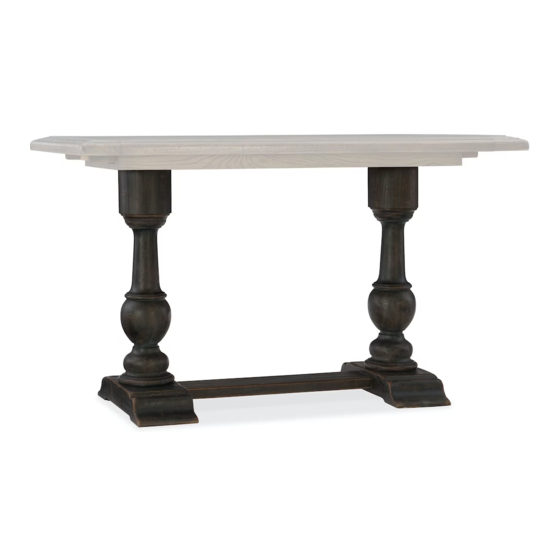

ITEM# 5960-75206B-BLK Balcones 60in Friendship Table Base
5960-75206T-BRN Balcones 60in Table Top w/2-12in Leaves

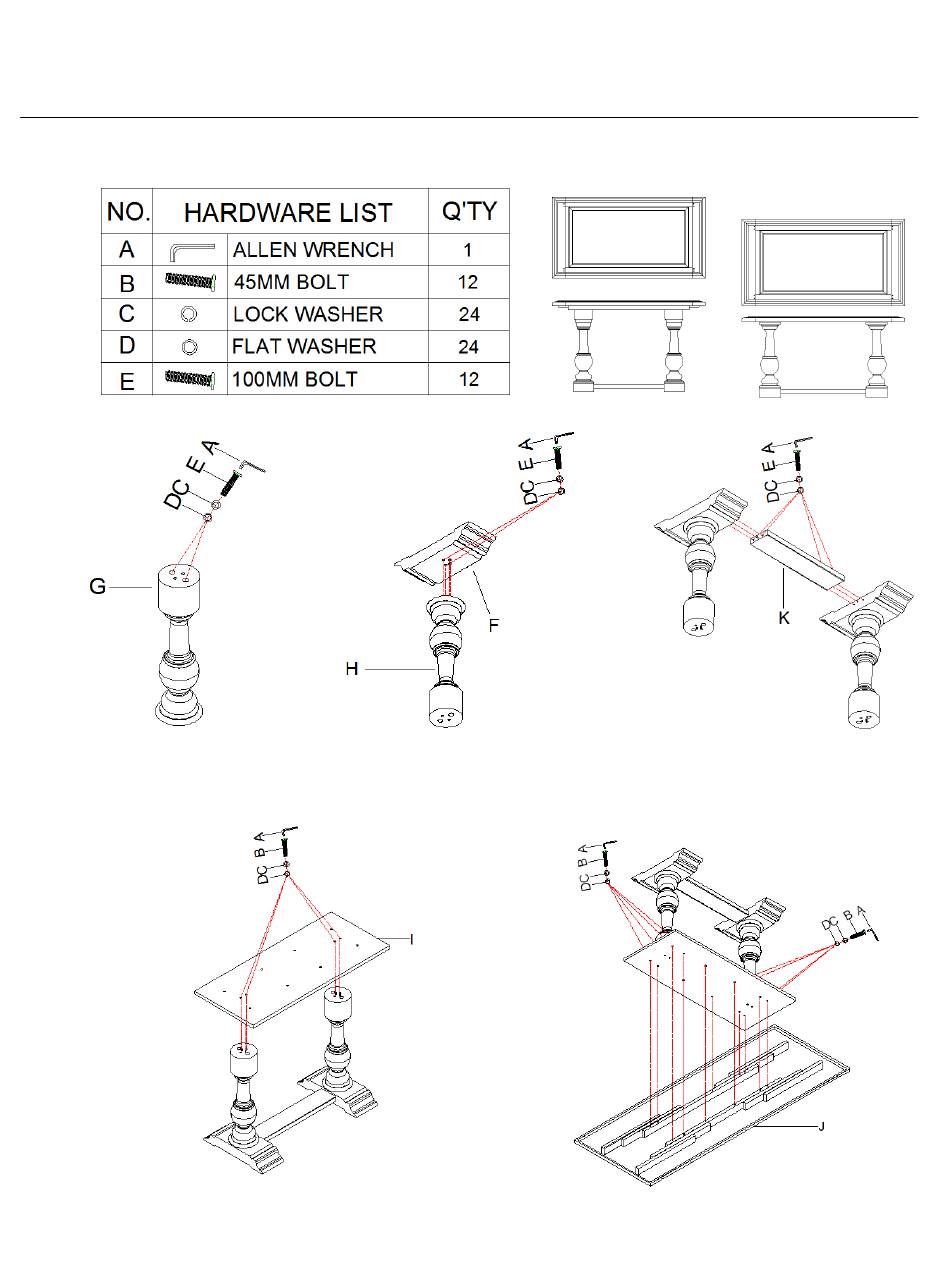

** Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.
Diagram 1
Diagram 2
Diagram 3
Diagram 5
Diagram 4
1/3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5960-75206B-BLK
Summary of Contents for Hooker Furniture 5960-75206B-BLK
- Page 1 ASSEMBLY INSTRUCTION ITEM# 5960-75206B-BLK Balcones 60in Friendship Table Base 5960-75206T-BRN Balcones 60in Table Top w/2-12in Leaves ** Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more people.
- Page 2 Note: 1. Leaves cannot be switchable. Follow numbers on leaves and top when assemble. 2. Height of this table can be adjusted with or without the extension blocks. Assembly steps with extension blocks: 1. Tighten extension blocks (G) on posts by inserting bolts (E), lock washers (C) and flat washers (D), sure bolts with allen wrench (A) in clockwise direction.
- Page 3 Instruction for table leaves: 1. There are latches at the bottom of table top, turn off the latches as shown in Diagram 10. 2. Pull out table top as the arrow direction shown in Diagram 11. 3. Follow numbers on table leaves and top, place table leaves between and push table tops together.
