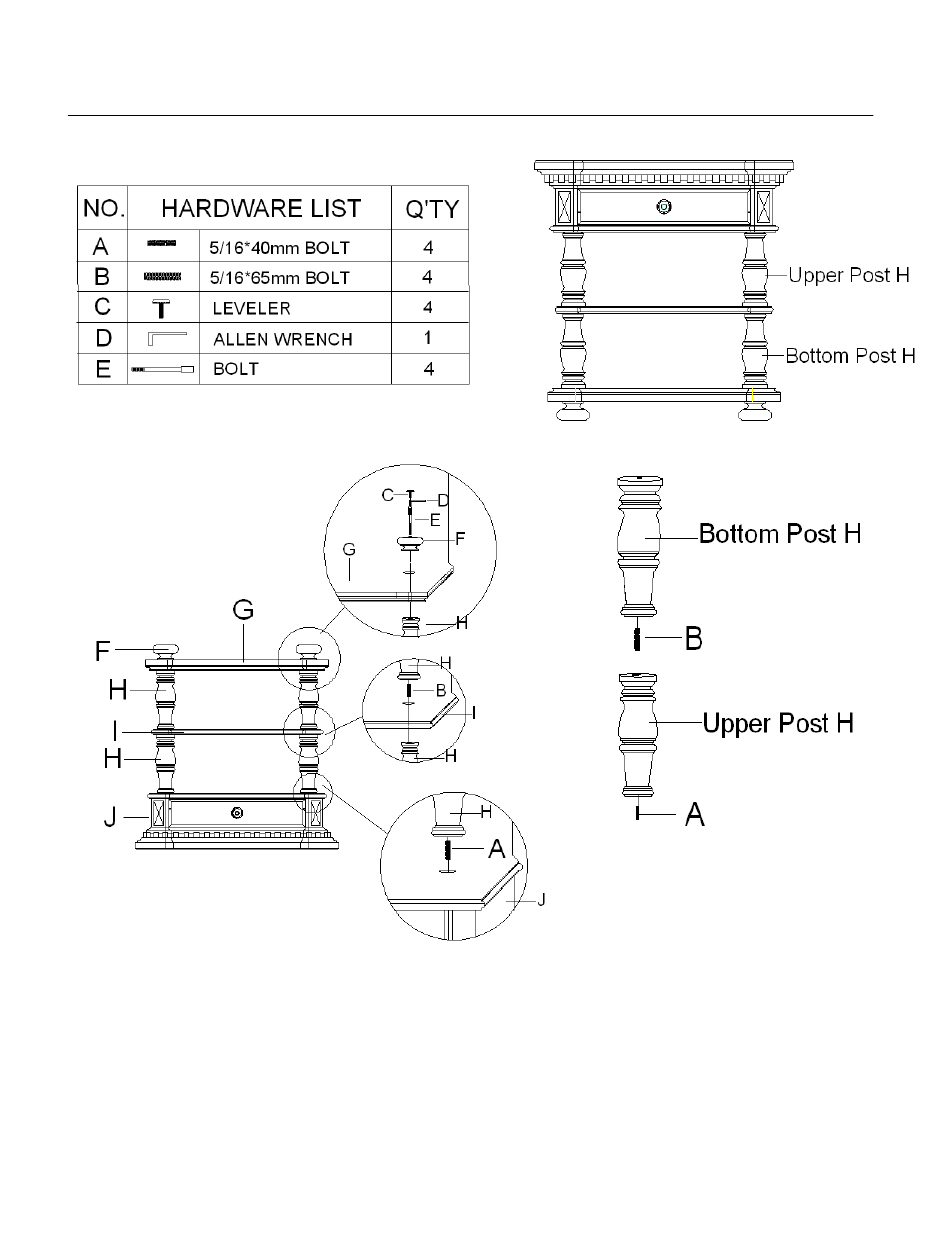

ASSEMBLY INSTRUCTION
** Please make sure you have all parts indicated below prior to assembly.
Diagram 4
Diagram 2
Assembly Steps:
1. Place table top upside down on a soft surface to prevent from scratching.
2. There are 8 pcs of posts (H) with same specification and profile. Please screw bolts (A) into
the thinner end of 4 upper posts, then screw bolts (B) into the thinner end of 4 remaining
bottom posts. (See diagram 1).
3. Then tighten up 4 upper posts (H) into table top (J) in clockwise direction tightly. (See diagram
2).

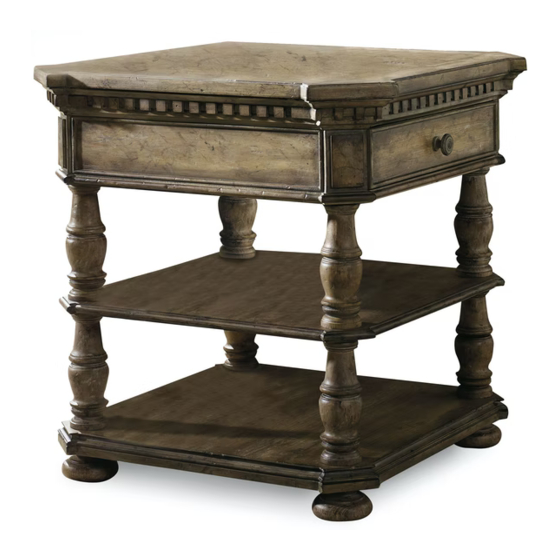

Item#: 5107-80113 End Table
Diagram 3
1/2
Diagram 1
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5107-80113
Summary of Contents for Hooker Furniture 5107-80113
- Page 1 ASSEMBLY INSTRUCTION Item#: 5107-80113 End Table ** Please make sure you have all parts indicated below prior to assembly. Diagram 4 Diagram 3 Diagram 1 Diagram 2 Assembly Steps: 1. Place table top upside down on a soft surface to prevent from scratching.
- Page 2 4. Place shelf (I, 3/4” T) on upper posts (H), then tighten up remaining 4 bottom posts (H) through the shelf (I) into upper post (H) in clockwise direction.( See diagram 3) 5. Assemble bottom panel(G, 1 1/4” T) and bun feet (F) to upper posts(H) by using bolts (E) and allen wrench (D) turning in clockwise direction tightly.
