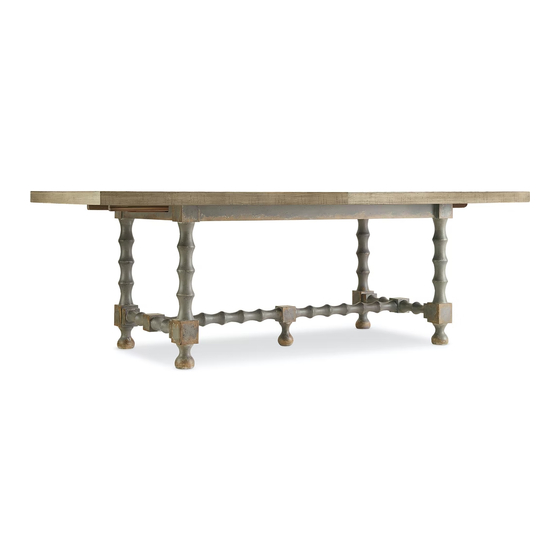

Item#: 5805-75200T - 85 - 84in Trestle Table Top w/2-18in Leaves-Natural
5805-75200B - 95 - 84in Trestle Table Base - Gray
5805-75200T- 80 - 84in Trestle Table Top w/2-18in Leaves- Flaky White
5805-75200B -99 - 84in Trestle Table Base - Black
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Assembly steps:
1.Place table top upside down on a soft surface to prevent it from being scratched.
( F & H )
side frames
turning with allen wrench (D) in a clockwise direction (see diagram 1).Do not tighten up at this
step.
ASSEMBLY INSTRUCTION
Diagram 1
to table top (L) using bolts(C), lock washers (B), flat washers (A), by
Diagram 2
1/2
Attach
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5805-75200T-85
Summary of Contents for Hooker Furniture 5805-75200T-85

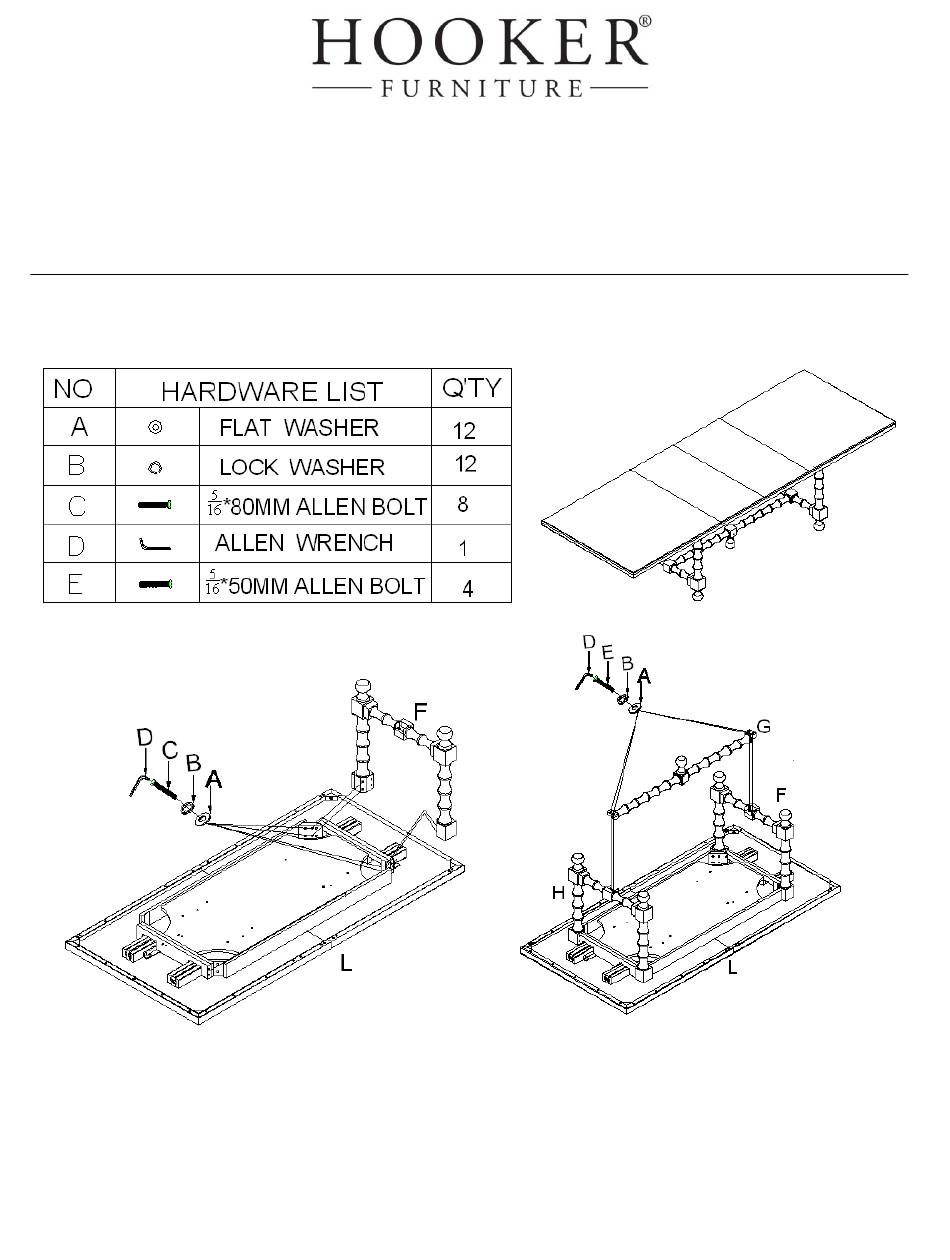

- Page 1 ASSEMBLY INSTRUCTION Item#: 5805-75200T - 85 - 84in Trestle Table Top w/2-18in Leaves-Natural 5805-75200B - 95 - 84in Trestle Table Base - Gray 5805-75200T- 80 - 84in Trestle Table Top w/2-18in Leaves- Flaky White 5805-75200B -99 - 84in Trestle Table Base - Black ** Please make sure you have all parts indicated below prior to assembly.
- Page 2 2.Attach stretcher (G) to side frames ( F & H ) to make sure all pre-drilled holes the ends of are in alignment, well insert bolts (E), lock washers (B) and flat washers (A), tighten all bolts by turning with allen wrench (D) in clockwise direction (See Diagram 2). Tighten all bolts 4.Turn table upright.
