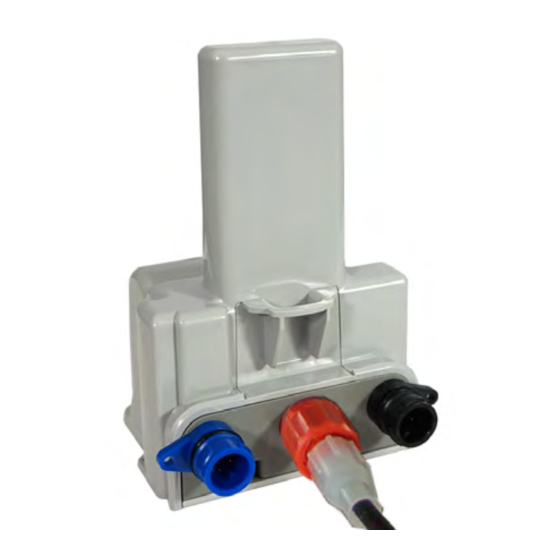

ITRON OpenWay Riva Installation Manual
Gas disconnect
Hide thumbs
Also See for OpenWay Riva:
- Installation manual (43 pages) ,
- User manual (13 pages) ,
- Installation manual (30 pages)
Related Manuals for ITRON OpenWay Riva
Summary of Contents for ITRON OpenWay Riva
- Page 1 OpenWay Riva OpenWay Riva Gas Disconnect Installation Guide knowledge to shape your future INSTALLATION GUIDE...
- Page 2 All other product names and logos in this documentation are used for identification purposes only and may be trademarks or registered trademarks of their respective companies. For more information about Itron or Itron products, go to www.itron.com. If you have questions or comments about a software or hardware product, contact Itron Technical Support Services. Contact Email: support@itron.com...
-
Page 3: Table Of Contents
Electrostatic Discharge Electrostatic Ignition Hazard Device Cleaning Do Not Drop Product Notification OWRGD Installation Guide Overview Audience About the OpenWay Riva Gas Disconnect OWRGD Models OWRGD System Security Transmission Mode Operational States OWRGD functional specifications OWRGD Operational Specifications Related Documents... - Page 4 OpenWay Riva Gas Disconnect Installation Guide Table of Contents Installing the OWRGD in the Pipe Installing the Flood Sensor Connecting the Flood Sensor to the OWRGD Connecting the Flood Sensor Inline Connector OWRGD Operations OWRGD Secure Commands Obtaining Security Material...
-
Page 5: Important Safety And Compliance Information
To ensure system performance, this device and antenna shall not be changed or modified without the express approval of Itron. Per FCC rules, unapproved modifications or operation beyond or in conflict with these instructions for use could void the user's authority to operate the equipment. -
Page 6: Canada, Ised Spectrum Compliance
OpenWay Riva Gas Disconnect Installation Guide 1 Important Safety and Compliance Information Canada, ISED Spectrum Compliance Compliance Statement Canada Déclaration de Conformité This device complies with Innovation, Science and Le présent appareil est conforme aux CNR d'Industrie Economic Development Canada (ISED) license- Canada applicables aux appareils radio exempts de exempt RSS standard(s). -
Page 7: Telemetering Equipment Classification
Itron. Any unauthorized modification will void the user's authority to operate the equipment. In the event of malfunction, all repairs should be performed by Itron. It is the responsibility of users requiring service to report the need for service to Itron. -
Page 8: Electrostatic Discharge
Warning! These instructions are not intended to replace any utility or company- established meter installation procedures. These instructions are provided for additional information when the OpenWay Riva Intelis Gas Meter is installed. The meter installation must comply with all country, state, and local building and safety regulations as well as federal regulations including Section 192.353 of Title 49 of the... - Page 9 Storage range: ■ -40° F (-40° C) to +158° F (70° C) Direct inquiries as to the selection and application of gas meters to your local Itron sales representative or Itron Support. ■ Itron does not endorse or warrant the completeness or accuracy of any third-party meter installation procedures or practices, unless otherwise provided in writing by Itron.
-
Page 10: Owrgd Installation Guide Overview
This installation guide provides instructions for physically installing, commissioning, connecting, decommissioning, and physically disconnecting the OWRGD valve. Audience This installation guide is intended for Itron personnel, third-party OpenWay Riva system installers, and end-users of the OWRGD valve. 14 August 2020... -
Page 11: About The Openway Riva Gas Disconnect
A bout the OpenWay Riva Gas Disconnect The Itron OpenWay Riva Gas Disconnect ( OWRGD) valve is integrated in the piping that distributes natural gas to provide a safe secure device to stop the gas flow in the piping serving a residential or commercial structure. -
Page 12: Owrgd Models
OpenWay Riva Gas Disconnect Installation Guide 3 About the OpenWay Riva Gas Disconnect When the OWRGD is mounted in horizontal piping, mount the device with the top surface (the area with the product label) away from walls and structures. When the OWRGD is mounted on vertical piping, do not mount the device in a vertical downflow position (with the flow arrow point down). -
Page 13: Owrgd System Security
3 About the OpenWay Riva Gas Disconnect OWRGD System Security The OWRGD is a component of Itron's OpenWay Riva system. The OpenWay Riva system enhanced security, provided by Itron Security Manager (ISM), applies to the RF communications between the network or handheld and the OWRGD. There are two fundamental security processes used in the Itron Security Manager to ensure system communication confidentiality and validity. -
Page 14: Owrgd Operational Specifications
Frequency hopping spread spectrum 902.2 to 927.75 MHz in the ISM band Data integrity Verified in every data message Related Documents Document title Document part number Customer setup to order secured OpenWay Riva modules TDC-1748-XXX First article review form TDC-1749-XXX OpenWay Riva Collection Manager Device Interface Guide TDC-1786-XXX ... - Page 15 OpenWay Riva Gas Disconnect Installation Guide 3 About the OpenWay Riva Gas Disconnect Document title Document part number Field Deployment Manager Tools Application Guide TDC-1713-XXX Field Deployment Manager Tools Configuration Guide TDC-1711-XXX Field Deployment Manager Field Representative's Guide TDC-1714-XXX 14 August 2020...
-
Page 16: Installing The Owrgd
To ensure safe and efficient operation of this product, Itron strongly recommends installation by a qualified professional. -
Page 17: Meter Set Installation
OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD Caution: Shield unconnected flood sensor connectors on field installed OWRGD devices with the protective universal environmental cap. Do not leave flood sensor connectors exposed in field installations. Environmental caps employ multiple seals to protect connector life. - Page 18 OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD When the OWRGD is mounted in horizontal piping, mount the device with the top surface (the area with the product label) away from walls and structures. When the OWRGD is mounted on vertical piping, do not mount the device in a vertical down flow position (with the flow arrow point down).
- Page 19 OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD ■ A clear RF signal reaches the antenna (1). ■ Gas is flowing in the proper direction (the direction indicated by the arrow on the OWRGD). ■ The valve reset shaft is accessible with the valve tool (2).
-
Page 20: Owrgd Valve Positions
OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD Remove the red shipping plugs from the inlet and outlet to vent the OWRGD prior to installation. Keep the piping interior, regulator inlet, and regulator outlet free from dirt, chemical sealant (pipe dope), Teflon tape, or other debris. - Page 21 OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD 2. Verify the gas flow is in the direction noted by the arrow on the body of the OWRGD valve. 3. Apply pipe sealant on the pipe. Caution: Do not leave loose tape or excess pipe sealant on the pipe connections.
-
Page 22: Installing The Flood Sensor
OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD 9. Install a tamper plug over the top tamper seal cup (if one is not already present). Warning! Check all connections for gas leakage and repair if necessary. Installing the Flood Sensor Warning! Do not paint the flood sensor. - Page 23 OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD 1. Position the flood sensor on the pipe using the correct pipe cradle for the pipe's orientation. Note: Place the sensor 6 to 12 inches above the ground or floor but below the OWRGD.
- Page 24 OpenWay Riva Gas Disconnect Installation Guide 4 Installing the OWRGD screws through the flood sensor's mounting flanges. 14 August 2020 815-0382-00...
-
Page 25: Connecting The Flood Sensor To The Owrgd
C onnecting the Flood Sensor to the OWRGD The flood sensor connects to the OWRGD through an inline connector. Warning! The OWRGD must be commissioned before the flood sensor is connected to ensure proper event logging. After the flood sensor is attached to the OWRGD, perform a Check Endpoint in FDM tools to verify the flood sensor is connected. - Page 26 OpenWay Riva Gas Disconnect Installation Guide 5 Connecting the Flood Sensor to the OWRGD 4. Twist the inline connector's blue tab until it aligns with the OWRGD connector's tab. 5. Secure a tamper seal through the connection tab's opening to complete the connection.
- Page 27 OpenWay Riva Gas Disconnect Installation Guide 5 Connecting the Flood Sensor to the OWRGD 6. Complete the installation by securing the flood sensor's cable with cable ties or wire guides. Coil and secure any excess cable near the OWRGD. 14 August 2020...
-
Page 28: Owrgd Operations
O WRGD Operations The OWRGD can be programmed and read with an FC300SR handheld computer or an Itron Mobile Radio connected to a user-supplied laptop. Programming the device requires Field Deployment Manager (FDM) Tools version 4.1.0. FDM Tools provides the interface to operate the OWRGD with these OWR-GD categories. -
Page 29: Owrgd Valve Commands
OpenWay Riva Gas Disconnect Installation Guide 6 OWRGD Operations Mobile Application Guide (NAM), FDM Tools for methods to obtain the security materials. (See Related Documents on page 14 for documentation information.) Important! Shared key files must be installed on the FDM and ISM servers. -
Page 30: Emergency Override
FDM. Itron assumes no liability for failure of the OWRGD to perform the requested action when the emergency override option is selected. The use of the emergency override option voids any remaining warranty on the OWRGD. -
Page 31: Commission Instructions
OpenWay Riva Gas Disconnect Installation Guide 6 OWRGD Operations Commission Instructions 1. Enter the OWRGD Endpoint ID. 2. Using FDM Endpoint Tools, select Commission. 3. Select Next. 4. Select Valve Status to confirm the valve is commissioned. Connect Continue the OWRGD deployment by connecting the device. This process prepares the valve for opening by a qualified installer or technician. -
Page 32: Disconnect
OpenWay Riva Gas Disconnect Installation Guide 6 OWRGD Operations 5. Using the valve tool, turn the valve shaft clockwise to lock the valve into the open position. Important! Turn the valve tool until you hear a click indicating the valve locked into position. -
Page 33: Decommission
OpenWay Riva Gas Disconnect Installation Guide 6 OWRGD Operations Decommission In the event the OWRGD will be removed from service, the device must first be decommissioned. Warning! Prior to decommissioning the OWRGD, verify the gas supply is turned off. Decommissioning the OWRGD: ■... - Page 34 OpenWay Riva Gas Disconnect Installation Guide 6 OWRGD Operations For more information about performing OpenWay Riva Network Operations, see the FDM Mobile Application Guide, FDM Tools. For documentation information, seeRelated Documents on page 14 August 2020 815-0382-00...
