Summary of Contents for Energie ECONOMIC 250

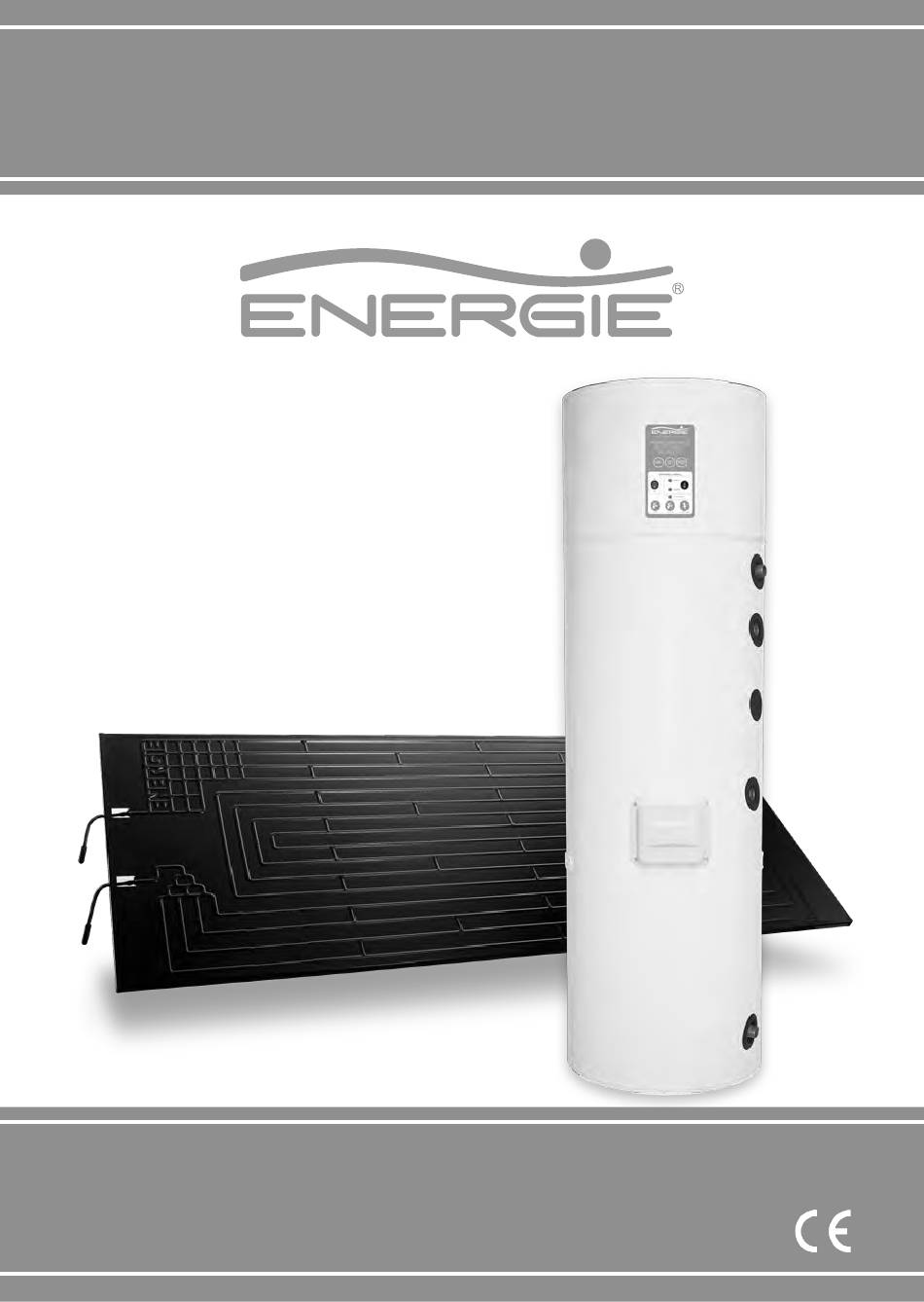

- Page 1 TECHNICAL MANUAL ECONOMIC Revisão | Review | Révision Diretivas Certificação Europeia Versão | Version | Version Directives European Certification Data | Date | Date 25/03/2019 Directives Certification européenne 2006/95/CE EN 60335-1 EN 60335-2-21 EN 60335-2-40...

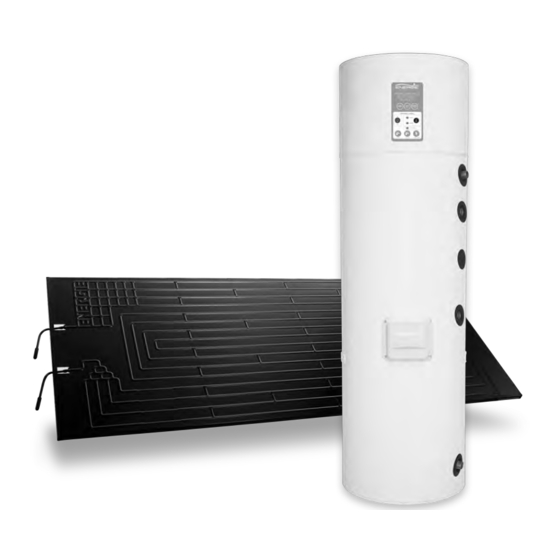

- Page 3 Technical Manual ECONOMIC Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. The thermodynamic solar system ECONOMIC will surely meet all your expectations and provide many years of comfort with maximum power saving.
-
Page 4: Table Of Contents
ECONOMIC Technical Manual Index 1.IMPORTANT........................1.1. Symbols..........................1.2 Pre-installation Information .................. 1.3 Safety Information ..................... 2.PACKAGE ........................2.1. Contents ........................2.2.Transport ........................3.SPECIFICATIONS ...................... 3.1. Running Principle ...................... 3.2.Technical Features ....................3.3.Main Components ..................... 3.3.1. General Assembly ..................3.3.2.Dimensions ......................3.3.3.Characteristic Plate.................. - Page 5 Technical Manual ECONOMIC 4.5.Electric Connections ....................5.SYSTEM OPERATION ....................6.TROUBLESHOOTING ..................... 7. MANUTENÇÃO DO SISTEMA..................7.1. General Inspection ..................... 7.2. Magnesium Anode ....................7.3. Cleaning Filter of Pressure Reducing Valve..........7.4. Safety Thermostat ....................7.5. Empty the Hot Water Cylinder ................8.
-
Page 6: Important
ECONOMIC Technical Manual 1. IMPORTANT If the power supply cable is damaged, it must be replaced by the manufacturer, 1.1. Symbols customer service, or technicians with simi- lar training in order to avoid any danger. Every step where the supplier believes that may be harmful, This appliance is not intended dangerous and/or could dama-... -
Page 7: Package
Technical Manual ECONOMIC equipment, by a qualified technician; • Cleaning and maintenance must not • The refrigerant used is R134a, CFC- be carried out by children unless -free, non-inflammable and without they are under supervision. harmful effects for the ozone layer; •... -
Page 8: Transport
ECONOMIC Technical Manual 2.2. Transport • Transporting the equipment must be carried out with an inclination below • The equipment must be raised and lowered with extreme care to avoid any impact that can damage the unit; • Make sure the belts and/or transportation straps do not damage the ma- terial;... -
Page 9: Specifications
Technical Manual ECONOMIC 3. SPECIFICATIONS inside the solar panel, makes the fluid to eva- porate on its inside. The absence of glass in 3.1. Running Principle the solar panel allows for an increased ther- mal heat exchange by convection. thermodynamic solar system After circulating in the solar panel, the fluid... -
Page 10: Technical Features
ECONOMIC Technical Manual 3.2. Technical Features 250i Dry Weight Capacity Internal Protection Stainless Steel AISI444 Cathodic Protection Ânodo Mg (1”1/4 F) Water – Inlet and Outlet 3/4” Male Pol. TP Valve 1/2” Female Recirculation 3/4” Male Insulation High Density Polyurethane 50mm Maximum Allowed Pressure Maximum Allowed Temperature °C... -
Page 11: Main Components
Technical Manual ECONOMIC 3.3. Main Components 3.3.1. General Assembly [1] Hot Water Cylinder [2] Thermodynamic Block [3] Thermodynamic Solar Panel [4] Fixation elements [5] Insulated Copper Pipes (not supplied) [6] Expansion Vessel (not supplied) [7] Safety Group (7bar) (not supplied) [8] Pressure Reduction Valve - 3bar (not supplied) -
Page 12: Dimensions
ECONOMIC Technical Manual 3.3.2. Dimensions Thermodynamic Solar Panel Indoor Unit [H] Hot water outlet C] Cold water inlet [V/Hz] Power supply [R] Recirculation [2WV/3WV] Refrigeration connections (2way; 3way) [A] Magnesium Anode [PT] TPR Valve (optional) -
Page 13: Characteristic Plate
Technical Manual ECONOMIC 3.3.3. Characteristic Plate [8] Max Water Temperature [1] Model [9] Power Supply (voltage / frequency) [2] Production number [3] Serial number [10] Protection Index [4] Production date [11] Fluid (type / amount) [5] Capacity [12] Maximum Power Absorbed [6] Weight (with electric heater backup) [7] Max Working Pressure... -
Page 14: Thermodynamic Solar Panel
ECONOMIC Technical Manual 3.3.4.Thermodynamic Solar Panel The solar panel is a double channel pressed The panels have the following pipe diame- aluminium, with a post-press anodization- ters: -oxidation that creates a dark tone aspect • 3/8” Aspiration (upper connection) with the Solokote finishing. There are two •... -
Page 15: Cylinder + Thermodynamic Block
Technical Manual ECONOMIC 3.3.5. Cylinder + Thermodynamic Block [1] Thermodynamic Block We call Thermodynamic Block to the equip- ment set on a galvanized steel structure, that contains two of the main elements for run- ning the thermodynamic cycle: compressor and expansion valve. The back section of the block has two valves of 2 and 3 ways concei- ved for connecting to the panel: •... -
Page 16: Cooling Fluid
ECONOMIC Technical Manual 3.3.6. Cooling Fluid pose is to compensate for the increase in water volume due to temperature rise and to reduce the consequence of any water The R134a is a HFC fluid, thus not harmful hammer effect to the ozone layer. It has great chemical and thermal stability, low toxicity, non-in- flammable and is compatible with most ma- Installing this device is a re-... -
Page 17: Pressure Reducing Valve (Not Supplied)
Technical Manual ECONOMIC 3.4.5. VPressure Reducing Valve Fixation in at least 6 points (3 (not supplied) points at the top and 3 points at the bottom) is mandatory! The lack of at least one of these The pressure reducing valve must always be points may cause deformities installed upstream from the safety device, in the panel and, in some cases,... -
Page 18: Set-Up Of The Hot Water Cylinder + Thermodynamic Blocko
ECONOMIC Technical Manual 4.2. Set-up of the Hot Water Cy- The profile should be attached to the base (e.g. roof tile) through a plastic bushing and linder + Thermodynamic Block a self-thread M6 bolt which have been su- pplied. The attachment of the panel to the brackets Pre-requisites: is done through M6 screws, its nuts and wa- •... -
Page 19: Refrigerant Connections
Technical Manual ECONOMIC 4.3. Refrigerant Connections d) Flange the pipe with the appropriate tool shaping a conic edge, make sure that there are no rough edges or imperfections The refrigerant connections must and that the vertical of the walls are uni- be done by a qualified technician, form;... -
Page 20: Connection Of Copper Pipes To Indoor Unit
ECONOMIC Technical Manual Pipe Diameter Torque (N.m) Wrench nº (inches) 1/4” 14 to 16 3/8” 33 to 42 4.3.2. Connection of Copper Pi- pes to Indoor Unit Some of the required steps are a It is important to keep the valves repetition of the procedures for closed before moving on to the the panel connections. -
Page 21: Nitrogen Load And Leak Test
Technical Manual ECONOMIC 4.3.3. Nitrogen Load and Leak ensuring the installation is on vacuum and ready for be loaded with refrigerant; Test g) After concluding the vacuum procedure, a) After finishing the connections, make you must open the two and three way val- sure there are no leaks. -
Page 22: Complementary Charge (If Necessary)
ECONOMIC Technical Manual 4.3.6. Complementary Charge (if 4.4. Hydraulic Connections necessary) Your unit is pre-charged for connections up to 12 m (horizontal) between the panel and WARNING / DANGER the indoor unit. Long distances will decrease The water you use may contain impurities the performance of your equipment. -
Page 23: Electric Connections
Technical Manual ECONOMIC c) Besides this device, other components will 4.5. Electric Connections be necessary to ensure the interruption of the hydraulic load, installed according to this To establish the electric connection of the sequence: equipment, check these conditions: a) The thermodynamic equipment must be •... - Page 24 ECONOMIC Technical Manual Electric Diagram Cation: Sc Condenser(running) compressor RES Heather ON/OFF indicator L Phase B1 Button ON/OFF heather (i - ON Anti- N Neutral -Legionella; ii - ON Heather; 0 - Heather OFF) T0/55 AQS thermostat control B2 COMP: Button ON/OFF compressor T0/66 Thermostat anti-legionella cycle AL Alarm indicator VS Solenoid valve...
-
Page 25: System Operation
Technical Manual ECONOMIC 5. SYSTEM OPERATION A. On / off - Compressor (ECO mode - Works only with the thermodynamic solar system). B. Low pressure warning light: a. Very low outdoor temperatures; b. No refrigerant in the circuit; c. Insufficient fluid load or leakage on the refrigerant circuit. -
Page 26: Troubleshooting
ECONOMIC Technical Manual 6. TROUBLESHOOTING PROBLEM POSSIBLE CAUSES HOW TO PROCEED Press the key ON/OFF. Equipment is switched off Check the connection of equipment to the- Absence of power supply or damaged Check that the corresponding circuit-breaker cable is connected. Check the integrity of the cables Verificar o correto funcionamento dos com- ponentes... -
Page 27: Manutenção Do Sistema
Technical Manual ECONOMIC 7. SYSTEM MAINTENANCE To check the condition of your anode, follow Before undertaking any mainte- these steps: nance operation on the equip- ment, make sure it is not plugged to the power supply! • Shut off water supply Any task should be performed by •... -
Page 28: Empty The Hot Water Cylinder
ECONOMIC Technical Manual 8. DISPOSAL OF EQUIPMENT This appliance contains R134a refrigerant gas that should not be released to the atmos- phere. If the appliance is to be deactivated definitively, you should contact a qualified te- chnician for that purpose. The “container”... - Page 29 NOTE: This sheet must be properly filled, signed and stamped by the installer / reseller and returned to ENERGIE EST, Lda., otherwise the warranty will not be validated. Send this installation sheet to warranty@energie.pt, writing the serial number of the equip- ment as subject.
- Page 30 Notas/Notes:...
- Page 31 Notas/Notes:...
- Page 32 Notas/Notes:...
- Page 33 Notas/Notes:...
- Page 34 Notas/Notes:...
- Page 36 Zona Industrial de Laúndos, Lote 48 + 351 252 600 239 Projeto co-financiado por: Proyecto cofinanciado por: 4570-311 Laúndos - Póvoa de Varzim PORTUGAL E-mail energie@energie.pt Projet cofinancé par: N 41 27.215’ , W 8 43.669’ www.energie.pt Telefone + 351 252 600 230...
