Headlamp Focus Adjustment - HERO MAESTRO EDGE PROGRAMMED FI Manual

4
3

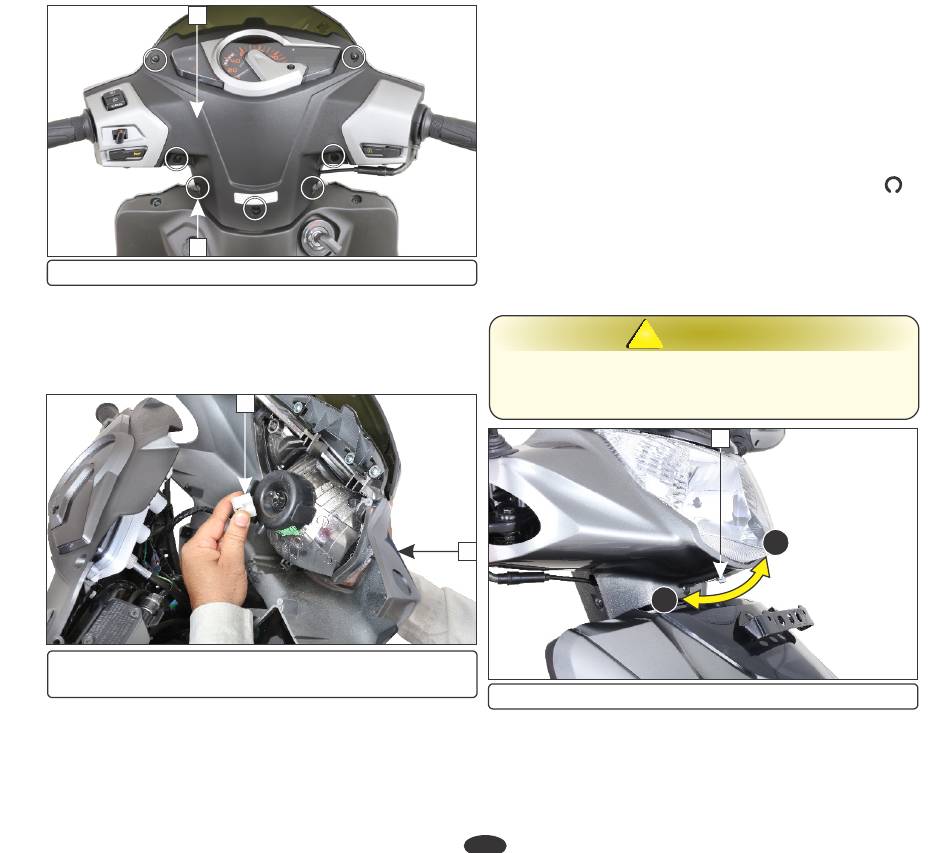

(3) Screws
Pull the headlamp assembly (5) slightly up,
•
carefully release the tabs from the slots.
Disconnect the headlamp connector (6),
•
and remove the headlamp assembly.
(5) Headlamp assembly
(6) Headlamp connector
Installation
Installation is in the reverse order of removal.
(4) Rear handlebar cover
6
(h) Headlamp focus adjustment
Vertical adjustment
Headlamp focus is factory preset. However in
case of adjustment required please follow the
steps as given below.
Park the vehicle on its main stand on a
•
level surface in front of a wall.
Turn the ignition switch to "ON" ( )
•
position and start the engine.
Adjust the headlamp beam vertically by
•
loosening the bolt (1) and move the
headlamp up (A) or down (B) for correct
focus.
An improperly adjusted headlamp may blind
oncoming driver or it may fail to light the road
for safe distance.
5
(1) Bolt
41
WARNING
! !
1
A
B
(A) Up (B) Down
