Inspection

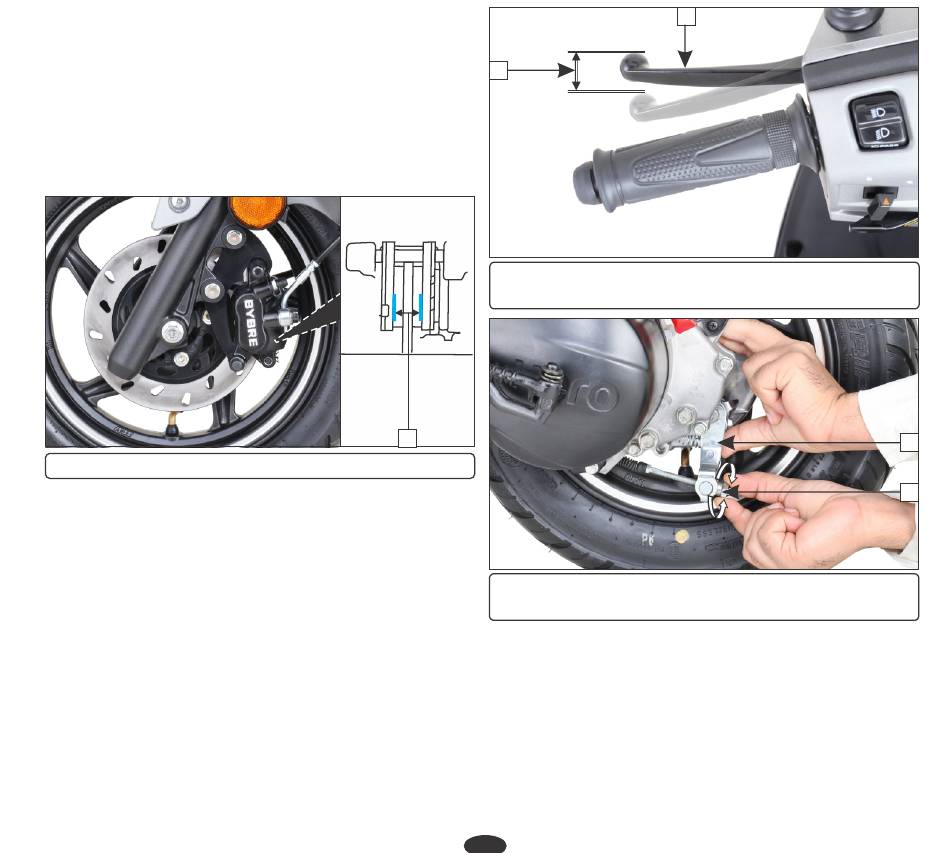

Check the wear indicator grooves (1) on
•
each pad.
Check the brake pads for wear by examining
•
the wear limit grooves on each pad.
Replace the pads if worn out to the bottom
•
of the groove.
Always replace both the pads as a set.
•
(1) Wear indicator groove
Visit your Authorised
•
for the brake pad replacement.
workshop
(c) Rear brake
Check the free play of integrated/rear
•
brake lever (1).
FREE PLAY: 10-20 mm
If the free play (2) is more than 20 mm
•
turn the adjuster nut (3) in the brake arm
(4) to obtain desired free play.
1
Hero MotoCorp
19
2
(1) Integrated/Rear brake lever
(2) Free play:10-20 mm
(3) Adjuster nut
(i) Decrease free play (ii) Increase free play
Make sure the cut-out on the adjusting nut
(5) is seated on the brake joint pin (6) after
making final free play adjustment.
If proper adjustment cannot be obtained by
this method, visit your Authorised
workshop.
MotoCorp
1
(i)
(ii)
(4) Brake arm
4
3
Hero
