DATA CAPTURE

This chapter describes how to connect the ZEB-GO hardware, how to collect raw scan data and how to download the raw scan
data from the data logger.
3.1

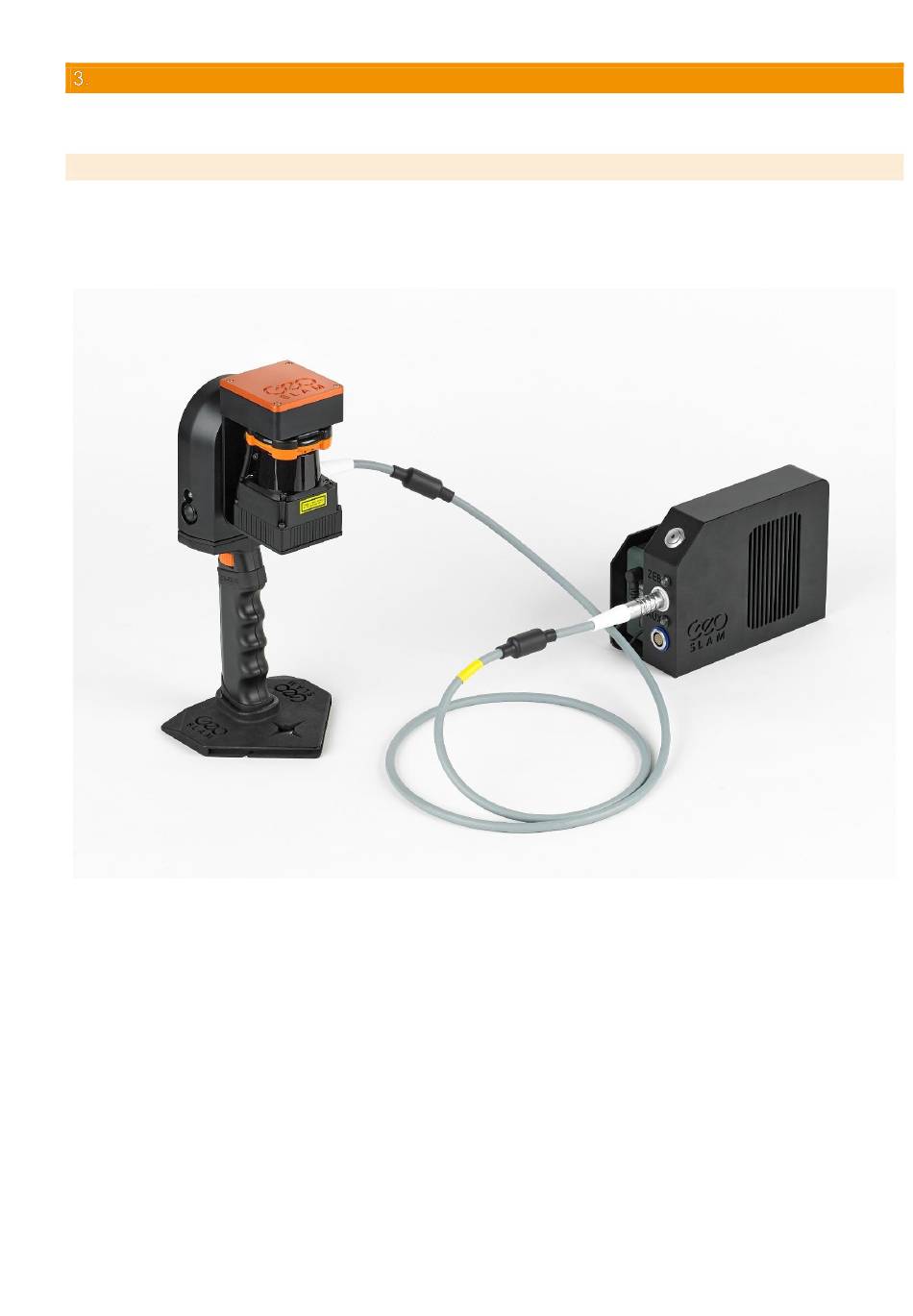

CONNECTING THE HARDWARE

Attach the reference base plate to the bottom of the handle using the screw and hex key provided.
Connect the ZEB-GO main cable to the socket on the side of ZEB-GO scanner head. Use red dots to align correctly.
Connect the other end of the ZEB-GO cable to the ZEB (white) socket on the DL2600 data logger. Use red dots to align correctly.
DO NOT attempt to connect the ZEB-GO cable (12 pin) to the AUX socket (14 pin- with blue marker)
Connect the DL2600 battery connector to the external battery.
