ZEB-REVO Laser Scanner Manual

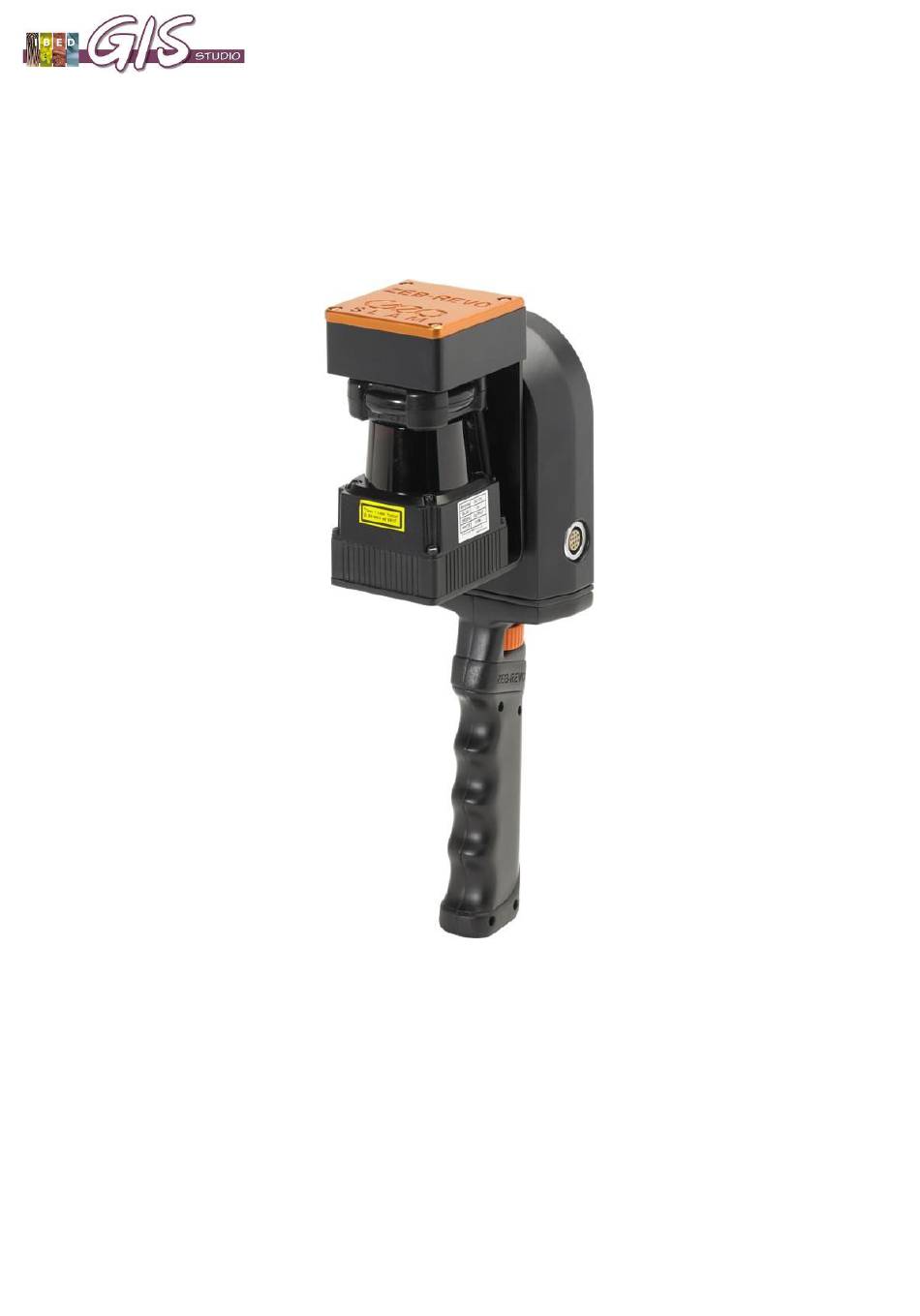

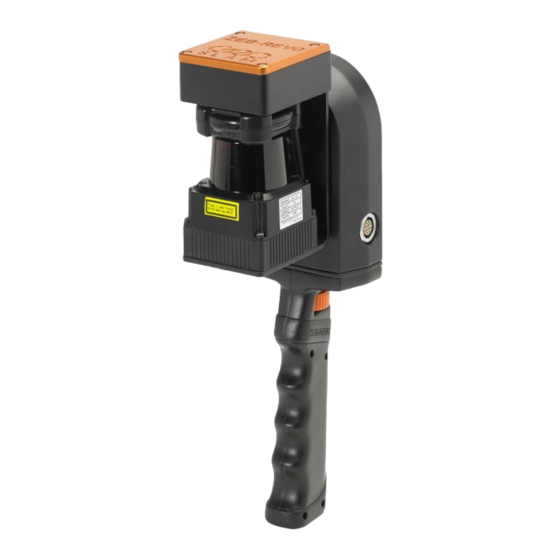

Source: GeoSLAM ZEB-REVO 3D Laser Scanning System
Created by: Felix van Leuven, Agnieszka Lisonek and Eline Rentier
Supervisor: Dr. W. M. (Thijs) de Boer
Course: Environmental Measuring Techniques (5264ENMT6Y)
Date: 26-03-2020
University of Amsterdam

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZEB-REVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoSlam ZEB-REVO

Summary of Contents for GeoSlam ZEB-REVO

  • Page 1 ZEB-REVO Laser Scanner Manual Source: GeoSLAM ZEB-REVO 3D Laser Scanning System Created by: Felix van Leuven, Agnieszka Lisonek and Eline Rentier Supervisor: Dr. W. M. (Thijs) de Boer Course: Environmental Measuring Techniques (5264ENMT6Y) Date: 26-03-2020 University of Amsterdam...

  • Page 2: Table Of Contents

    ZEB-REVO Laser Scanner manual Contents Important information ..........................3 Content of the box ..........................3 Quick Start Guide ............................ 4 Best practice guidelines ......................... 11 Setting up 3D markers ........................... 12 References ............................. 13 Last updated March 27 2020 Page 2 of 13...

  • Page 3: Important Information

    Official name laser scanner: ZEB-REVO hand held laser scanner & RT data processing unit For this manual the ZEB-REVO RT User’s Manual v1.0.1 by GeoSLAM Ltd 2017 was consulted. We recommend consulting this manual in case you run into problems that are not specified by this manual.

  • Page 4: Quick Start Guide

    2. Insert the battery into the ZEB-REVO RT Processing Unit. Make sure you hear the click! 3. Connect the ZEB-REVO main cable to the 12 way socket on the side of ZEB-REVO hand held laser scanner. Make sure that the red dot on the cable aligns with the red dot on the socket!
  • Page 5 ZEB-REVO Laser Scanner manual 4. Connect the other end of the ZEB-REVO main cable to the 12 way socket on the RT data processing unit. Make sure the red dot on the cable aligns with the gap in the socket! Connecting ZEB-REVO to your laptop (wireless) 1.
  • Page 6 7. Open your web browser on your laptop and go to the following link: http://192.168.102.2/ 8. The GeoSLAM logo will be displayed briefly while the connection is made. The REVO hand held laser scanner should not be turned on yet! 9.
  • Page 7 If an error occurs saying that you should hold the device still and that initialization failed; make sure you put the ZEB-REVO hand held laser scanner on its back on a stable surface and try again. Also make sure that the hand held laser scanner is turned off.
  • Page 8 16. Conduct the scan using the ‘best practice guidelines’ chapter of this manual. 17. When the survey is complete, position the ZEB-REVO scanner in approximately the same position as used for initialization (go back to BASE) and click the STOP button on the display screen then press the button on the hand held laser scanner button to stop the scanner rotation.
  • Page 9 20. If you want to repeat the scan, or start a new scan, simply position the REVO in a stationary position, click the NEW SCAN button and enter a scan name when prompted. If you want to quit, shut down the system by pressing and holding the ZEB-REVO RT Processing Unit power button for approximately 4 seconds.
  • Page 10 ZEB-REVO Laser Scanner manual A file browser resembling GeoSLAM Hub is displayed. Files can be downloaded to the connected device by clicking on download, and selecting file type, .geoslam or .ply. The .ply file is the 9% shaded file used in the previewer.

  • Page 11: Best Practice Guidelines

    These features should be repeatedly scanned as the operator passes through the environment. This can be done by repeatedly pointing the ZEB-REVO in the direction of the feature. This is particularly important when the feature is at a long range (>10m).

  • Page 12: Setting Up 3D Markers

    ZEB-REVO Laser Scanner manual ○ It is best practice not to have other people closely accompany the operator during the scan acquisition as they will be scanned throughout the map leaving streaks of data and potentially corrupting the solution in feature poor environments.

  • Page 13: References

    ZEB-REVO Laser Scanner manual References GeoSLAM ZEB-REVO 3D Laser Scanning System [Online image]. (2020). Opti-cal Survey Equipment. https://surveyequipment.com/media/catalog/product/cache/1/image/903be06a881aa18fc50d3dc9 6e8b9fba/g/e/geoslam-zeb-revo-a_1.jpg?1534331962 Last updated March 27 2020 Page 13 of 13...
