Summary of Contents for BDI CENTRO 6401

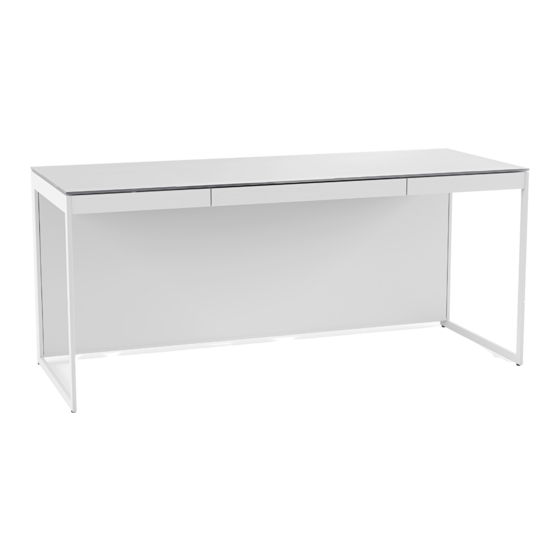

- Page 1 CENTRO 6401 ™ DESK INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your Centro Desk 6401 from BDI. Your desk has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your product.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for assembly of this product.
- Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS PART # PART # PART # DESCRIPTION DESCRIPTION DESCRIPTION Front Panel Desk Frame Drawer Liner QUANTITY QUANTITY QUANTITY PART # PART # PART # DESCRIPTION DESCRIPTION DESCRIPTION Upper Trough Lower Trough Left leg QUANTITY QUANTITY QUANTITY (4) Neodymium Magnets...
- Page 6 ASSEMBLY ASSEMBLY STEP 1. ATTACH THE BASE STEP 1. INSTALL LEVELER GLIDES Install (H9) Leveler Glides to the bottom of PART/DESCRIPTION (C8) Left Leg and (C9) Right Leg. H9-LEVELER GLIDE 6 | BDIUSA.COM CENTRO 6401...
- Page 7 STEP 2. INSTALL LEGS TO DESK FRAME ASSEMBLY Attach (C8) Left Leg to (C4) Desk Frame using PART/DESCRIPTION (H1) Screw and (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW Attach (C9) Right Leg to (C4) Desk Frame using (H1) Screw and (T1) Hex Wrench. NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 7...
- Page 8 ASSEMBLY STEP 1. ATTACH THE BASE STEP 4. ATTACH UPPER TROUGH Attach (C6) Upper Trough to inside of (C8) Left PART/DESCRIPTION and (C9) Right Leg using (H1) Screw and (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW 8 | BDIUSA.COM CENTRO 6401...
- Page 9 STEP 5. ATTACH LOWER TROUGH ASSEMBLY Attach (C7) Lower Trough to inside of (C8) Left PART/DESCRIPTION and (C9) Right Leg using (H1) Screw and (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 9...
- Page 10 NOTE: Both parts are upside down for the assembly T1-HEX WRENCH process. H8-SCREW Gently fasten into place using (H8) Screw and (T1) Hex Wrench. Upon completion, turn desk upright onto its base. CAUTION: DO NOT over tighten screws. Screws are for alignment only. 10 | BDIUSA.COM CENTRO 6401...
- Page 11 STEP 7. ATTACH POWER STRIP KIT—OPTIONAL ASSEMBLY Remove (C10) Power Strip Mounting Kit Magnet from the (C6) Upper Trough. Peel film from side of the (C10) Power Strip Mounting Kit Magnet and attach to clean, dry back side of AC power strip (not included).
- Page 12 NOTE: The Centro Desk is designed to permit placement in front of an electrical outlet for easier wiring access. ASSEMBLY STEP 1. ATTACH THE BASE STEP 9. INSTALL BACK PANEL—OPTIONAL The (C2) Back Panel is provided to conceal wire management if desk is located in the middle of a room. 12 | BDIUSA.COM CENTRO 6401...
-
Page 13: Fine Tuning
LEVEL DESK FINE TUNING To level your Centro Desk, dial down one or more levelers (by hand) until you attain a level stance. Dial down NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 13... -
Page 14: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 15: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component. - Page 16 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Centro & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2021, BDI | V.03.23.2021 Made in China.
