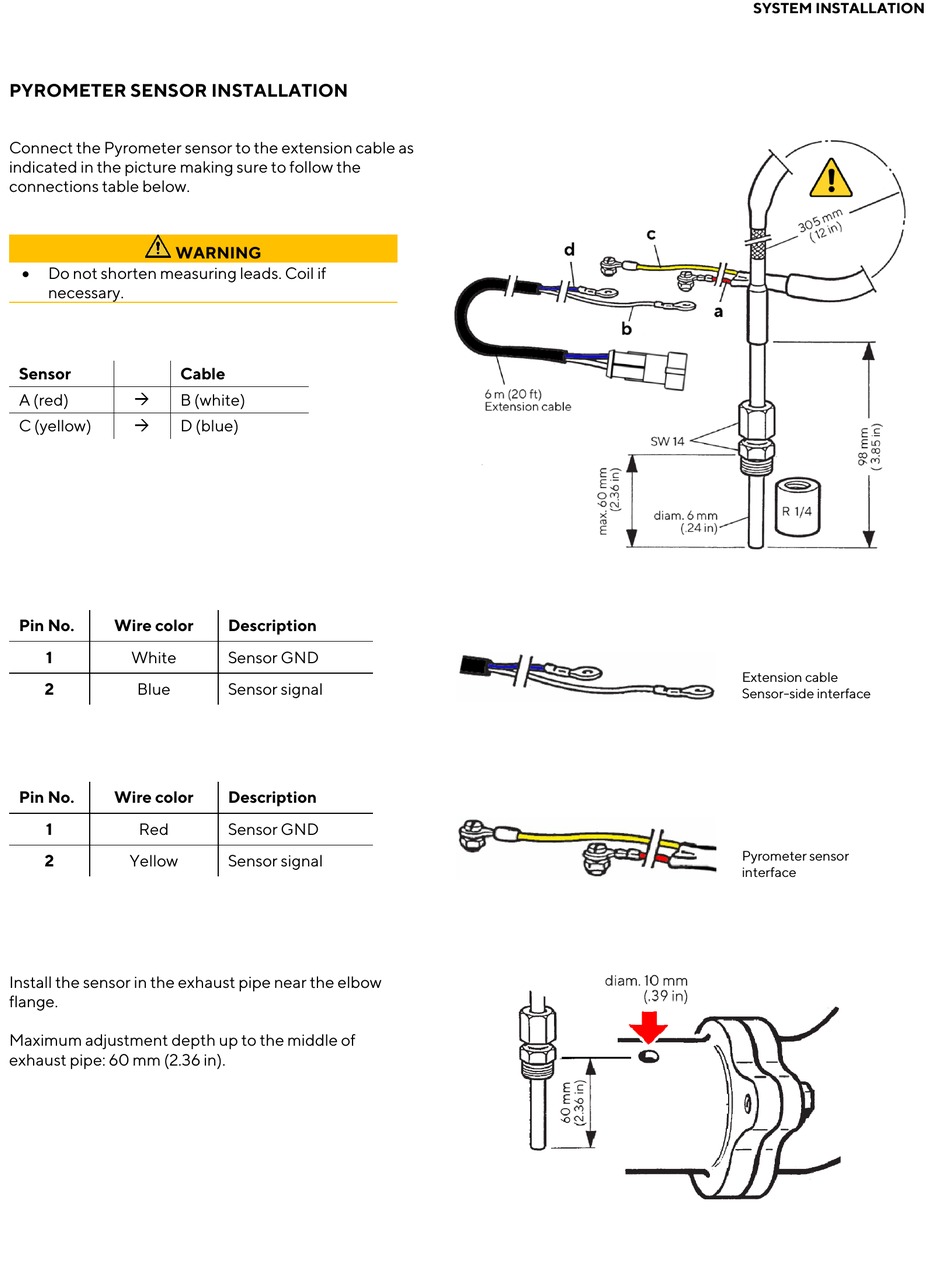

PYROMETER SENSOR INSTALLATION
Connect the Pyrometer sensor to the extension cable as
indicated in the picture making sure to follow the
connections table below.
WARNING
•
Do not shorten measuring leads. Coil if
necessary.
Sensor Cable
A (red)  B (white)
C (yellow) D (blue)

Pin No. Wire color
1
White
2 Blue
Pin No. Wire color
1 Red
2
Yellow
Install the sensor in the exhaust pipe near the elbow
flange.
Maximum adjustment depth up to the middle of
exhaust pipe: 60 mm (2.36 in).
Description
Sensor GND
Sensor signal
Description
Sensor GND
Sensor signal
SYSTEM INSTALLATION
Extension cable
Sensor-side interface
Pyrometer sensor
interface
