Veratron Link Up Instruction Manual page 4

DESIGN AND FUNCTION

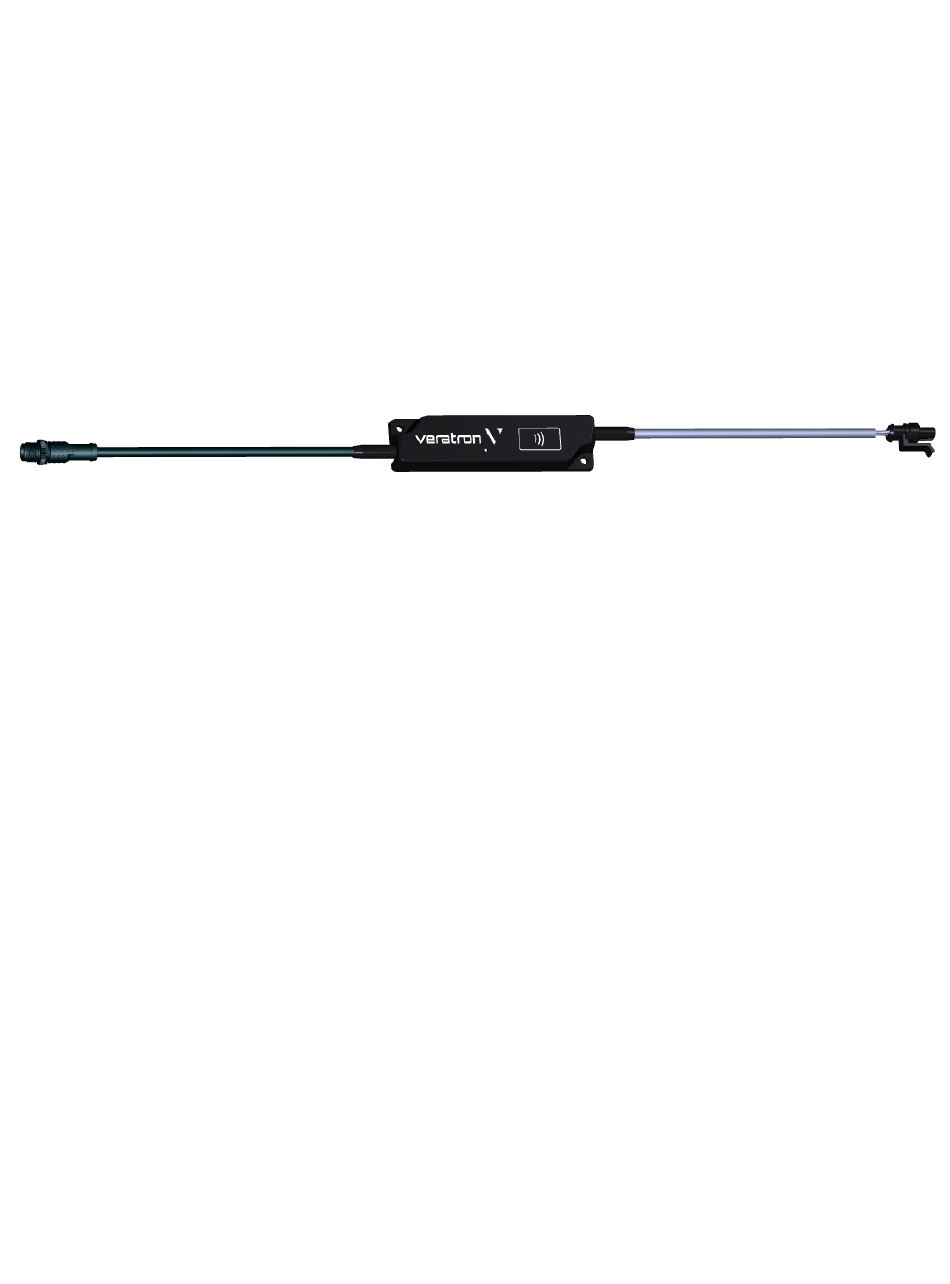

The Link Up gateway has a simple but yet effective design.
The housing filled with bi-component resin allows the unit
to be installed in Engine Rooms, making it compliant to the
ISO 8846:1990 as requested by the directive 2013-53(EC).
The standard NMEA 2000® M12 plug allows for a plug-
and-play installation to the network backbone.
The pyrometer sensor serves to monitor accurately the
temperature in the elbow flange of the exhaust pipe and
indicates eventual thermal overload of the engine.
The sensor connection to the LinkUp happens though an
extension cable provided with an AMP SuperSeal plug,
which perfectly matches the LinkUp, without the need of
additional wiring.
