Veratron Link Up Instruction Manual page 10

LINK UP CONNECTION
Connect the Link Up sensor-side plug to the 6 m extension
cable B000632 to interface the pyrometer sensor.
Pin No. Wire color
1
Black
2 Blue
Pin No. Wire color
1 White
2 Blue
Description
Sensor GND
Sensor signal
Description
Sensor GND
Sensor signal
The 6 m extension cable B000632 is designed with the
mating AMP SuperSeal connector for a plug-and-play
installation.
The contacts must audibly lock into place.

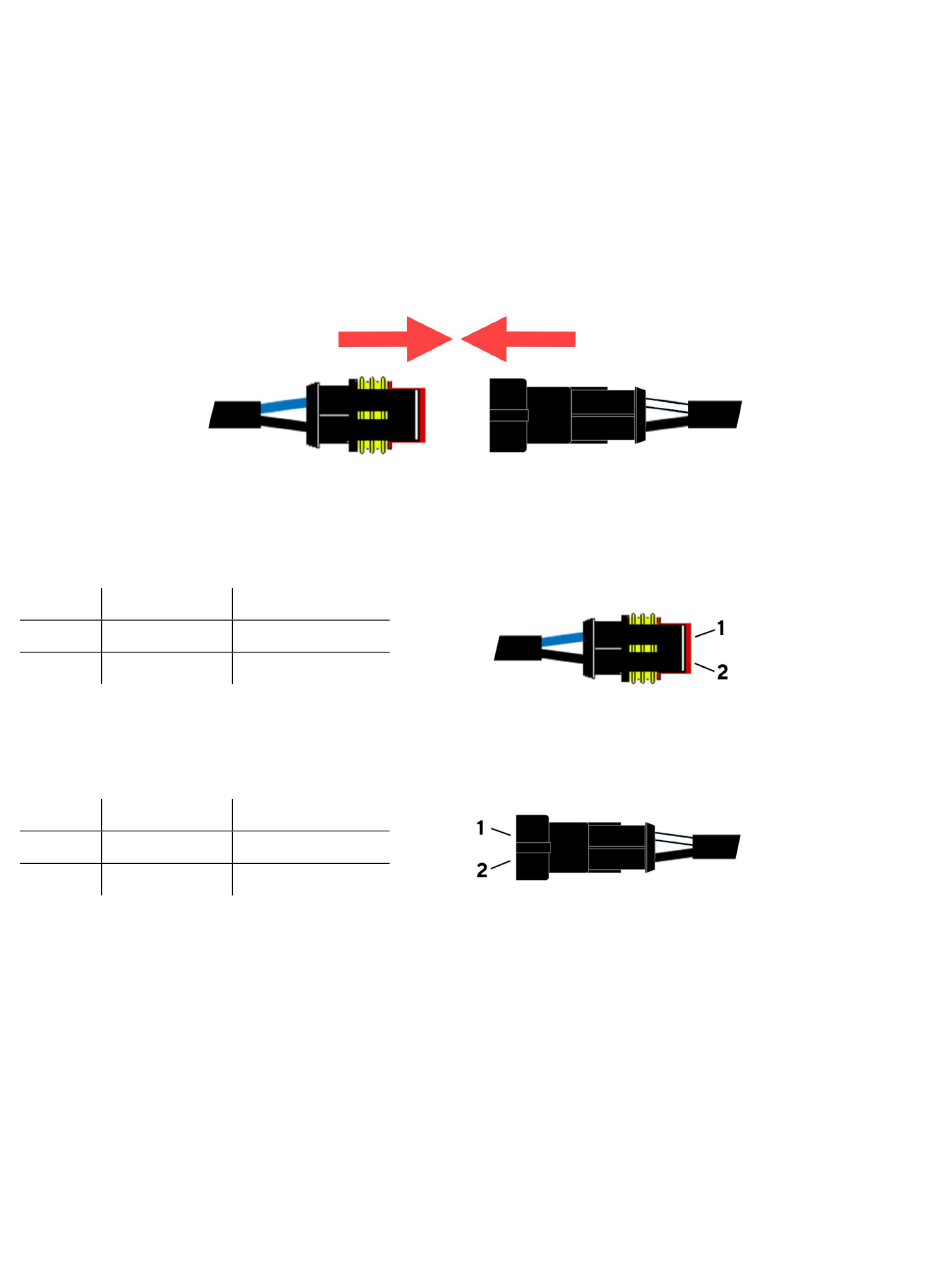

SYSTEM INSTALLATION
LinkUp sensor-side plug
Extension cable
LinkUp-side plug
