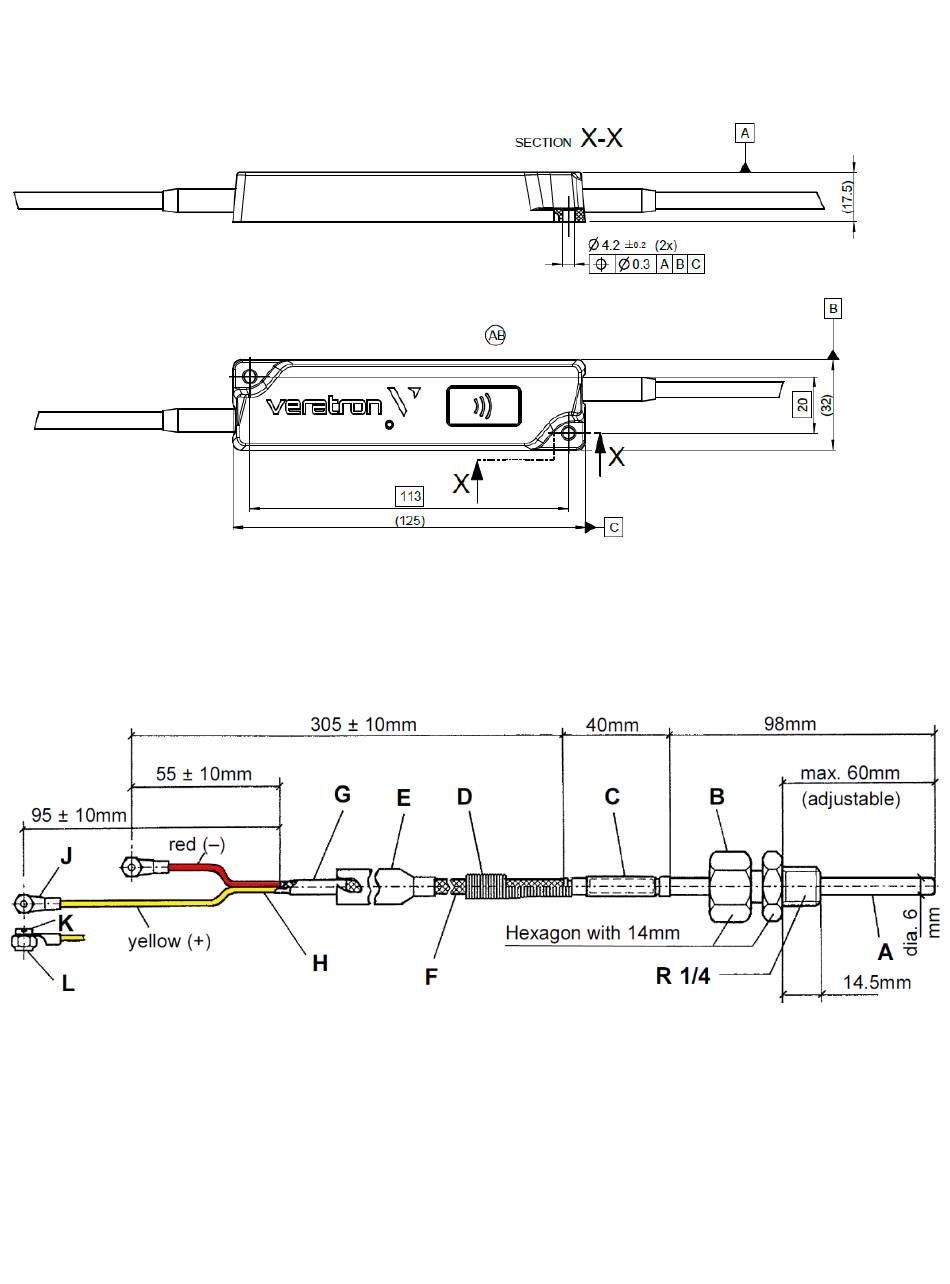

PYROMETER SENSOR
A
Thermoelement: NiCr-Ni DIN 43710
(with casing insulation)
B
V-ring bolting
C
Sleeve with sheathing, brazed
D
Break protection spring
E
Heat shrink tube
F
VA wire wounding
G
Rubber grommet
H
Compensating wire: NiCr-Ni, 2x 0.5 mm
J
Cable lug (2x): DIN 46237-3.5
K
Screw (2x): M3 x 6
L
Lock nut: M3
TECHNICAL DATA
