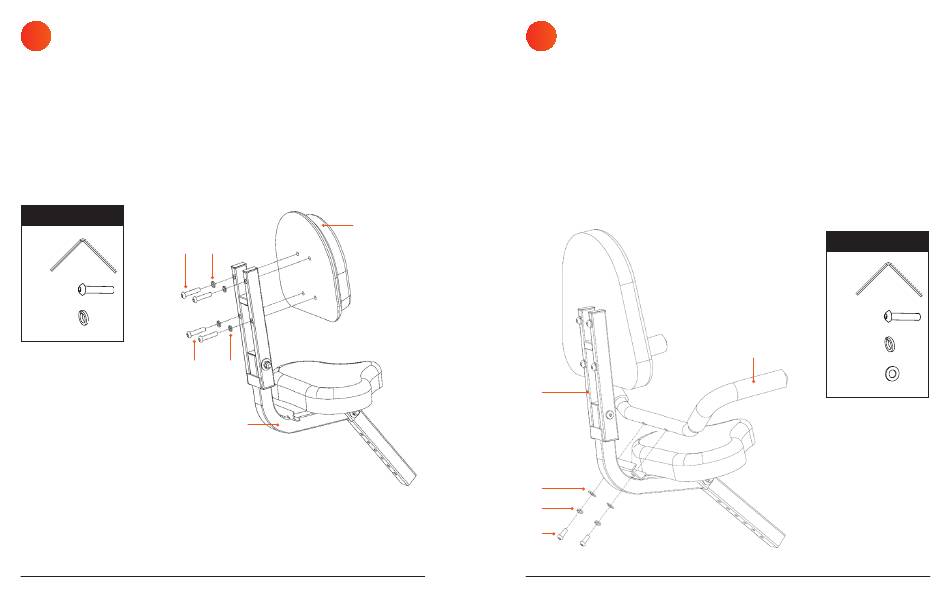

ATTACH THE BACKREST CUSHION
5
TO THE BACKREST FRAME
1. Locate the four M8×45mm bolts (18), four spring washers (19), and
hex key (36) in the hardware bag.
2. Align the four bolt holes in the backrest cushion
holes at the top of the backrest frame (16).
3. Place a spring washer (19) onto each of the four M8×45mm bolts (18).
4. Screw each bolt/washer combination through the back of the backrest
frame and into the cushion.
5. Use the hex key to fully tighten the bolts.
TOOLS & HARDWARE
18
(36)
(18) x4
(19) x4
18
14 X-FlexCycle Pro User Manual Lifepro
(17) with the four bolt
17
19
19
16
ATTACH THE REAR HANDLEBARS
6
TO THE BACKREST FRAME
1. Remove the hardware from rear handlebars (20).
2. Slide the handlebars into the slot at the curve of the backrest frame
(16). Align the bolt holes in the handlebars with the bolt holes in the
backrest frame slot.
3. Place a spring washer (22) and then a flat washer
M8×35mm bolt (21).
4. Screw each bolt/washer combination through the back of the backrest
frame and into the handlebars.
5. Use the hex key (36) to fully tighten the bolts.
16
23
22
21
(23) onto each
TOOLS & HARDWARE
(36)
(21) x2
(22) x2
20
(23) x3
