VENTRA XDR-450/D User Manual

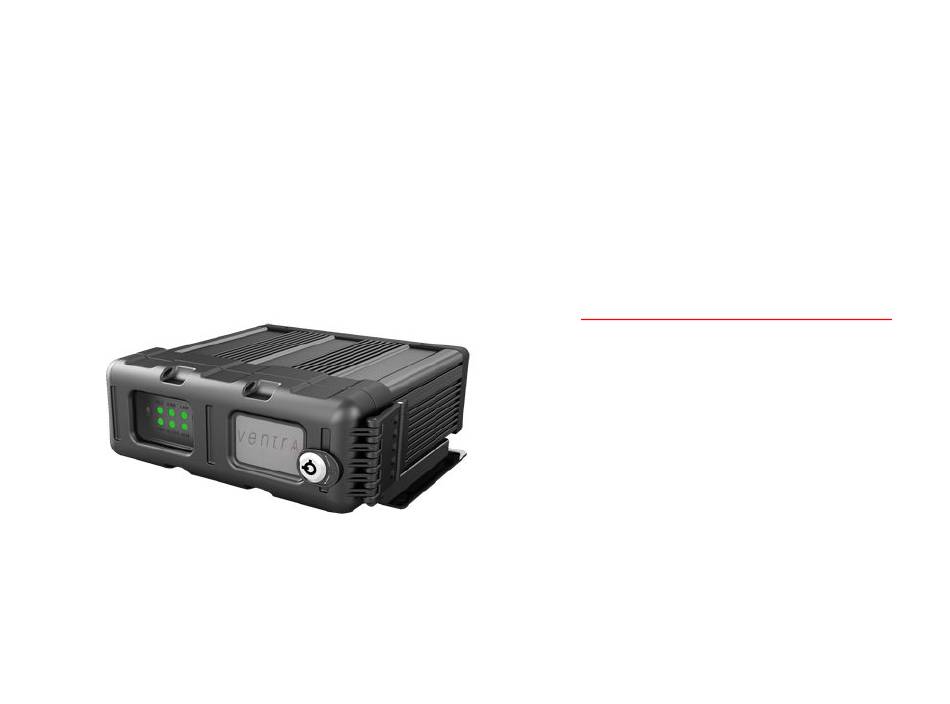

5 ch hybrid hd mobile dvr (1) 720p + (4) analog hd 720p / d 1

Advertisement

Quick Links

XDR-450/D (NEW)
5 CH Hybrid HD Mobile DVR
(1)
720P +
(4)
Analog HD 720P / D 1
This manual covers the setup, connection and
features of the XDR.
software, refer to Ventra software manual
THIS MANUAL CONTAINS UPDATED FEATURES
AND SPECIFICATION.
UPDATE NOTICE
User Guide
For management
PLEASE REFER TO
Please read and follow all instructions and
features before use. Save for future reference.
Specification, models and features are subject
to change without prior notice
www.ventrainc.com
Manual Ver 05 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDR-450/D and is the answer not in the manual?

Questions and answers

Summary of Contents for VENTRA XDR-450/D

  • Page 1 Analog HD 720P / D 1 User Guide This manual covers the setup, connection and features of the XDR. For management software, refer to Ventra software manual THIS MANUAL CONTAINS UPDATED FEATURES AND SPECIFICATION. PLEASE REFER TO UPDATE NOTICE Please read and follow all instructions and features before use.
  • Page 2 ****** New Update Notice (Important) ****** XDR-450/D is the upgraded version to the original XDR-450/H • System now supports 4 Channels of both Analog D1 and Analog HD 720P (AHD) resolution (see explanation below) • Recording - 720P x 30FPS + 15 FPS 720P AHD •...
  • Page 3: Table Of Contents

    Table of Content INTRODUCTION……………………………………………………………………………………………………………………………………………4 WARNING: SAFETY PRECAUTIONS…………………………………………………………………………………………………….……..5 WARNING: LAWS AND REGULATIONS………………………………………………………………………………………………………….6 SD CARD PRECAUTION, REQUIREMENT……………………………………………………………………………………………………….7 SYSTEM LAYOUT………………………………………………………………………………………………………………………………………….8 SYSTEM DIMENSION……..…………………………………………………………………………………………………………………………..9 SYSTEM COMPONENTS…………………………………………………………………….............10 SYSTEM CONNECTION OVERVIEW......................……11 ALARM CABLE……............................……..12 RS232/485/DIAGRAM............................13 CONNECTION CONNECTING ANALOG CAMERA…………………………………………………………………………………………………………………14 CONNECTING HD CAMERA …..........................15 XDR SYSTEM SETUP VIA MOUSE …........................16 XDR SYSTEM SETUP VIA EX4-PGM….........................17 SECTION 1: SYSTEM SETUP / FORMAT SD CARD OSD MENU SCREEN ………………………………………………………………………………...
  • Page 4 Table of Content SECTION 4: SURVEILLANCE / RECORD SETTING 4.0 - 4.2 SURVEILLANCE – LIVE VIEW, AUTO LOOP, ON SCREEN DISPLAY..……………..….…………..….………..25 4.3 – 4.4 SURVEILLANCE – RECORD GENERAL SETTING, MAIN STREAM……..…………………………….………..26 SURVEILLANCE – RECORD MAIN STREAM CONTINUED……..………………………….…………………………..27 4.5 – 4.6 SURVEILLANCE – RECORD DUAL STREAM, ON SCREEN DISPLAY…….……………………..……….………….28 4.6 –...
  • Page 5: Introduction

    Introduction XDR-450/D Hybrid High Definition Mobile DVR is an upgraded version of the original XDR-450/H advanced vehicle recording solution for any types of vehicles and applications. Design for rugged and demanding environmental factors such as heat, vibration and extended continuous recording cycles.
  • Page 6: Warning: Safety Precautions

    Failure to follow these safety warnings could potentially result in an accident, collision resulting in serious injury or death Install the device in a manner that does not obstruct the driver’s view of the front or sides of the vehicle, or interfere with the safety of operating the vehicle. •...
  • Page 7: Warning: Laws And Regulations

    Use of this product other than its intended purpose is strictly prohibited. Ventra Technologies Inc. does not assume any responsibility for any fines, violation, penalties or damages that may be incurred as a result of the use of the product Ventra Technologies Inc.
  • Page 8: Sd Card Precaution, Requirement

    When unspecified memory class are used, XDR may not record data properly and recordings may be lost or damaged • Ventra is not responsible for any damage , data loss, or system error resulting from SD card error and or damage, •...
  • Page 9: System Layout

    System Layout Front IR Receiver Remote Control Signal Recording Indicator Error indicator GPS status indicator Power indicator VLOSS Video loss indicator Network Connection (XDR 550 /580) FW upgrade / Video export Primary SD Card Slot Record video data files Secondary SD Card Slot Expansion / Mirror data slot DVR cover detection / Auto shutdown when DVR Cover Sensor / Switch...
  • Page 10: System Dimension

    System Dimension...
  • Page 11: System Components

    System Components Included: EX4-PIG Video out Software / Camera GPS Receiver SD Card Cable Power Cable Manual Optional: EX4-XC4 EX4-PIG EX4-ALC EX4-PGM Tablet EX5-CBLxx EX4-CBLxx EX4-XC2 Analog EX4-XC3 Analog Left/Right Side EX5-XC2 720P HD Converter Cable 8 Input Alarm for Programming / Camera Patch Analog Camera Outdoor Camera...
  • Page 12: System Connection Overview

    XDR System Layout Diagram • Connect Analog cameras into AV IN 1 – 4 • Connect Ventra EX5-HD Camera to IPC • Connect external passive GPS receiver • Connect Power cable to vehicle • Connect A/V Out (EX4-PIG) to monitor •...
  • Page 13: Alarm Cable

    XDR Series Alarm Cable Guide Alarm Cable Layout Alarm Cable Can Be connected for a wide array of applications For Sensor In: • Door Open / Close High Voltage: 5~12V • Light Trigger Low Voltage : 0~2V • Siren Trigger •...
  • Page 14: Rs232/485/Diagram

    EX4-PGM 7” Touch Screen Programming Tablet and LCD monitor EX4-PGM • Programming XDR system • LCD monitor for live viewing / back up • Touch Screen for easy access • Supports 2 way audio communication* * Requires additional remote connection hardware, software and cellular connection Connection to XDR and other accessories...
  • Page 15: Connecting Analog Camera

    Audio / Video & Power (Fig. 2) To connect XDR using 3 Party Analog Cameras - Utilize Ventra EX4-PIG to convert from 4 PIN DIN to standard BNC Video / Audio Fig. 2 and 2 power wires. Now the system can be connected using coax cables (Fig.
  • Page 16: Connecting Hd Camera

    HD 6PIN Patch Cable xx denotes length (EX5-HD1, EX5-HD2) Ventra EX5-CBL HD Camera 6PIN Patch Cable - Utilize Ventra pre-made EX5-CBL patch cables (sold separately) available in 15 or 30ft to connect EX5-HD camera (Fig. 1 EX5-CBLxx xx denotes length - Each EX5-CBLxx patch cable comes with 6 PIN DIN for easy connection to Fig.
  • Page 17: Xdr System Setup Via Mouse

    XDR Setup Connection via Mouse and Video Out 1. XDR Front Panel – SD Card Slots, USB Port and System LED 2. Connect USB mouse to XDR for programming 3. XDR Rear – Connect EX4-PIG to AV-OUT port on 4. XDR Rear – Connect EX4-PIG to RCA video connection to XDR for video out connection to monitor.
  • Page 18: Xdr System Setup Via Ex4

    XDR Setup Connection via EX4-PGM 1. Connect EX4-PGM to extension cable 2. Connect EX4-ALC (Sold Separately) to Sensor/Serial Port. Connect EX4-PGM to EX4-ALC 3. Once the wires are connected, the EX4-PGM will be powered by the XDR...
  • Page 19: Osd Menu Screen

    OSD Menu Layout Live View Display Screen Mode Playback System Status Setting...
  • Page 20: 1.2 Getting Started - Format Card / Enter System Setting

    Do NOT format or Repair the card via PC. (This is a safety feature of the system). Data can only be recognized by the Ventra XDR Software Insert or Remove SD card while XDR is powered ON To connect to the XDR, there are 2 methods...
  • Page 21: Basic Setup - Register System, Driver Id, Vehicle Id

    Basic Setup – Register Vehicle / Driver / Device ID 2.0 Register – Vehicle / Driver / Device Info Note: Save each tab individually before proceeding to next tab throughout the entire programming process Device ID: currently not in use Vehicle Info Vehicle Number (Required for software to identify system) Vehicle Plate (Optional)
  • Page 22: 2.2 Basic Setup - Date / Time Setup, Day Light Savings

    Basic Setup – Date / Time Setup 2.1 Time setup – Date / Time Note: Save each tab individually before proceeding to next tab throughout the entire programming process Set Date / Time Format Set Time Zone Time Sync - set date and time Enable Satellite time sync via external GPS receiver.
  • Page 23: 2.4 Basic Setup - System Startup, Battery Protection

    Basic Setup – System Startup 2.3 Startup – On / Off On / Off: How the XDR is activated (3 Modes) Ignition Timer Ignition or Timer Ignition Delay: Time delay between vehicle ignition off to XDR powering off (0-300 seconds) Ignition: XDR powers on as vehicle ignition is on Timer : If Timer option is selected, the schedule for Start and End Time must be set .
  • Page 24: Basic Setup - User Setup, Password

    Basic Setup – User Setup 2.5 User Setup Idle Time: The length of time the system remains in settings mode before logging out. Recommend (10 Minutes) User Name: Default are admin and user User Group: It is categorized as Administrator and Normal user Admin: View videos, change settings and export logs User: View videos but cannot change settings or logs Add, Delete or Edit...
  • Page 25: Network Connection

    Ethernet communications Port. In doing so, it does occupy 1 camera port and reduces the total number of cameras that can be installed on XDR from 5 to 4 This enables the XDR-450/D to connect to an external WiFi and or Cellular Router via Ethernet connection...
  • Page 26: 4.2 Surveillance - Live View, Auto Loop, On Screen Display

    Surveillance – Live View 4.0 Surveillance – Live View - Preview Preview Audio: Enable / Disable audio during live view of cameras Image Setup: Adjust live view parameters - Color, Contrast, Brightness Margins: Adjust live view screen setup Startup Screen: Set live view display in Single, Quad or Nine CH mode Channel: Select the channels to display on screen Note: 1 CH can only select 1 4CH Must Select 4...
  • Page 27: 4.4 Surveillance - Record General Setting, Main Stream

    Surveillance – Record – General / Main Stream 4.3 Surveillance – Record - General Reminder: Save each tab individually before proceeding to next tab This section covers the general system wide setting of the XDR System – PAL / NTSC (Default = NTSC) Overwrite: How the system stores new recording once the storage is full - Capacity: As SD storage is full, system will overwrite oldest data - Date: XDR will overwrite old data based on date...
  • Page 28: Surveillance - Record Main Stream Continued

    Surveillance – Record – Main Stream 4.4 Surveillance – Record – Main Stream (Continued) Reminder: Save each tab individually before proceeding to next tab Quality: Video quality in relation to Bit Stream ( 1 – 8, 1 = Best) Default = 3 Record Mode: Select how the camera is activated - Ignition / Power: When vehicle ignition is on - Event: Only when an event occurs...
  • Page 29: 4.6 Surveillance - Record Dual Stream, On Screen Display

    Surveillance – Record – Dual Stream 4.5 Surveillance – Record - Dual Stream Reminder: Save each tab individually before proceeding to next tab!! This section covers what type of storage is used and the recording method of the 2 SD card (If utilized).
  • Page 30: 4.7 Surveillance - Ex5 Hd /Ipc Camera Setup

    Surveillance – IPC / HD Camera Setup 4.7 Surveillance – IPC / HD Camera Setup NOTE: This section is solely for the configuration, enabling and setting for the EX5-HD series cameras which is a 720P HD resolution IP camera. Each camera has its own internal IP address within the XDR Default IP address for the HD camera = 10.100.100.1 Any IP cameras can start from IP address...
  • Page 31: Surveillance - Ptz Camera Setup

    Surveillance – IPC / HD Camera Setup 4.8 Surveillance – PTZ NOTE: PTZ settings applicable only for PTZ enabled analog or IP cameras Setup: Enable / Disable PTZ function in each Channel Operate: Serial / N9M, ONVIF. Protocol Type: Serial Mode Supports - N9M - Onvif - Pelco D...
  • Page 32: 5.2 Cod Sensor - General Sensor, Serial, Speed

    Collection of Data – General 5.0 Collection – General - Sensor Note: Save each tab individually before proceeding to next tab Sensor Number: Select from drop down menu of the sensor to edit Sensor Name: Optional – assign name to each sensor (i.e. Door, trunk, lift arm) OSD Name: The name embedded in video and data recordings Copy: If settings are the same, select Copy To individual or all sensors 5.1 Collection –...
  • Page 33: 5.4 Cod Sensor - Image Snapshot Time, Trigger Setting

    Collection of Data – General 5.3 Collection – Snap Setting – Time Snap Start Time / End Time: Set schedule of image snapshot. Check the Time Stamp Box to enable, edit and add. Edit by selecting the menu icon. Delete by selecting the X icon Add: XDR supports up to 8 different schedules for image Snapshot configuration 5.4 Collection –...
  • Page 34: Alarm - Overspeed

    Alarm – Base Configuration 6.0 Alarm – Base – Speed Alarm Enable / Disable Overspeed Event trigger Alarm Type: Important or General Trigger: Set speed limit trigger - Overspeed Early Warning If max speed is set at 60 MPH, when vehicle reaches 50 MPH, system will trigger and activate an alert to optional external device (light, buzzer) - Speed: Max vehicle speed limit - Alarm duration ( 0 -255 seconds)
  • Page 35: Alarm - Panic Alarm

    Alarm – Base Configuration 6.1 Alarm – Base – Panel Alarm Enable / Disable Panic Alarm trigger Alarm Type: Important or General Trigger: Set time delay for panic alarm activation 0 -255 seconds Alarm Linkage: Channel: XDR supports multiple cameras to be assigned for recording when specific alarm is triggered Post Recording: Duration of recording to be marked as post alarm event Lock: Lock specific alarm recording to keep for specified duration –...
  • Page 36: Alarm - Input Alarm

    Alarm – Base Configuration 6.2 Alarm – Base – I/O Alarm Enable / Disable I/O Alarm trigger 1 - 8 Alarm Type: Important or General Trigger: Low or High trigger (Default is Low for alarm trigger) For Sensor In: For Sensor Out: High Voltage: 5~12V Triggered Voltage: 12V Low Voltage : 0~2V...
  • Page 37: 6.3 Alarm - Video Loss

    Alarm – Base Configuration 6.3 Alarm – Video Loss Enable / Disable Video loss Alarm Alarm Type: Important or General Trigger: Channel selection Channel: Select channels to detect video loss Set Period / Schedule: Create schedule for video loss detection Channel: XDR supports multiple cameras to be assigned for recording when specific alarm is triggered Post Recording: Duration of recording to be marked as post alarm event...
  • Page 38: Alarm - Advance

    Alarm – Base Configuration 6.4 Alarm – Advanced G Sensor Alarm – Feature Currently Not Available...
  • Page 39: 7.1 Maintenance - Configuration, Data File Import / Export

    Maintenance – Configuration 7.0 Maintenance – Configuration File Import / Export NOTE: If using both corded USB mouse to control and USB thumb drive for Firmware storage, a USB hub may be used to provide multiple USB port In the configuration menu, user can export and or import configuration file for system settings.
  • Page 40: Maintenance - Firmware Upgrade

    Maintenance – Upgrade 7.2 Maintenance – Upgrade (Firmware) NOTE: If using both corded USB mouse to control and USB thumb drive for Firmware storage, a USB hub may be used to provide multiple USB port In the Upgrade menu, user can update Firmware for XDR, EX5-HD camera (IPC) or EX4-PGM (CP4) programming tablet.
  • Page 41: 7.3 Maintenance - Storage Format

    Maintenance – Storage Format 7.3 Maintenance – Storage Format NOTE: Do NOT insert or remove the SD card when the system is powered on, it may cause system error and corrupt recording files XDR uses a proprietary file format, all SD cards MUST be formatted in the XDR prior to recording.
  • Page 42 Technical Specification Function Overview Preview, Recording, Playback, Route History Linux 2.6.24 System Control Mode IR remote control 5 channels (1) 720P HD + (4) Analog HD 720P (AHD) or D1 Resolution Input 720 x 30FPS + 4 x 15 FPS Video Output 1 channel...
  • Page 43: Warranty / Rma

    Product Warranty Ventra Technology warrants the system against defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, Ventra’s liability for any defective product, or any product part, shall be limited to the repair or replacement of the product, at Ventra’s sole discretion.
