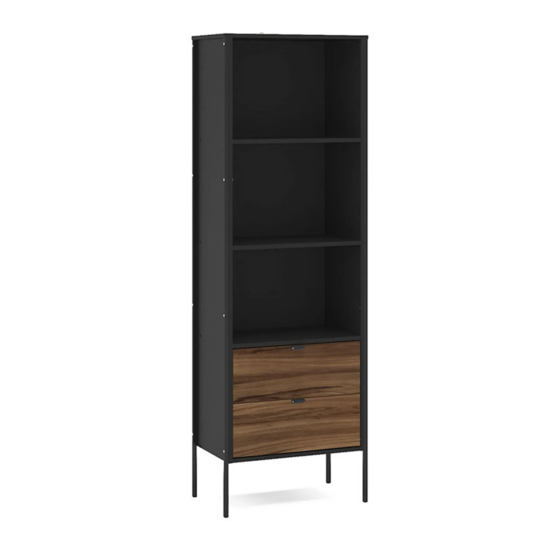

Birlea OPUS BOOKCASE Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on
our social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with
your order, please contact the retailer you purchased the item from. We will
work with the retailer to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop voucher
simply post a picture of your new product
on your preferred social channels tagging
Birlea Furniture and using the hashtag
#ShareYourStyle and #Birlea. One winner
will be selected at random each month.
To view our full terms and conditions please visit our website. www.birlea.com
www.birlea.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPUS BOOKCASE and is the answer not in the manual?

Questions and answers

Related Manuals for Birlea OPUS BOOKCASE

Summary of Contents for Birlea OPUS BOOKCASE

  • Page 1 #ShareYourStyle and #Birlea. One winner Birlea product. will be selected at random each month. To view our full terms and conditions please visit our website. www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.
  • Page 2 Assembly Video For a step by step guide on how to build our Opus bookcase visit our YouTube channel 'BirleaFurnitureLtd' or alternatively scan the below code on your smart phone. How to scan a QR code from an apple device...

  • Page 3: Health And Safety

    Vendor: S000139 ASSEMBLY INSTRUCTIONS OPUS BOOKCASE IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR OPUS BOOKCASE PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright.
  • Page 4 Vendor: S000139 Parts List Part Descripion Upper Base Bottom Base Shelf Drawer Back Drawer Base Bottom Right Side Left Side Drawer Front Back Panel Drawer Base Top Left Drawer Side Right Drawer Side Page...
  • Page 5 Vendor: S000139 Hardware List Part Descripion 5 x 60 mm Screw Glue Flat head screw Union head screw Flat head screw Bushing Metal claw 8 x 30 mm Wooden Dowel Strap Handle Foot F18A Union flat head screw F18B Union flat head screw Structural Screw Allen Key Structural Screw Cover...
  • Page 6 Vendor: S000139 Step 1: Insert hardware part E to the bottom base (02) and shelf (03) using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. (3x) Step 2: Insert hardware part E to the left and right sides of the drawer (76) and (77) using part A1 and a small mallet (not provided).
  • Page 7 Vendor: S000139 Step 4: Attach the metallic slide (XB) to the right side (14) using hadware part P5 and a screwdriver (not provided). Insert hardware part E using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. FOR UP 1st HOLE FRONT...
  • Page 8 Vendor: S000139 Step 6: Attach the left side (15) to the shelves (03) and bottom base (02) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Attach the left side (14) to the shelves (03) and bottom base (02) using hardware part G, H and I.
  • Page 9 Vendor: S000139 Step 8: Attach the feet E17 to the left side (15) using hardware parts F18A, F18B, M and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. F18A F18A F18B...
  • Page 10 Vendor: S000139 Step 10: Insert the back panels (17) to the slot and fixed using part C1 and N with a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. PAINTED SIDE DOWN Step 11: Attach the upper base (01) using hardware part O and a screwdriver (not provided).
  • Page 11 To secure the item to the wall use hardware parts A, B3 and E9 using a drilling machine (not provided) and a screwdriver (not provided). Then attach hardware part S to the item with a screwdriver (not provided). Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product. 1º...
  • Page 12 Vendor: S000139 Step 14: Attach the left drawer side (76) and right drawer side (77) to the drawer back (07) and (08) using hardware part O and a screwdriver (not provided). Then left drawer side (76) and right drawer side (77) to the drawer back (07) and (18) using hardware part O and a screwdriver (not provided).
  • Page 13 Vendor: S000139 Step 16: Attach the handle E16 using hardware part A16 and A17 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 17: Attach the drawer slide XC and XD in the underside of the drawer using hardware part P5 with a screwdriver (not provided).

  • Page 14: Additional Information

    If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
