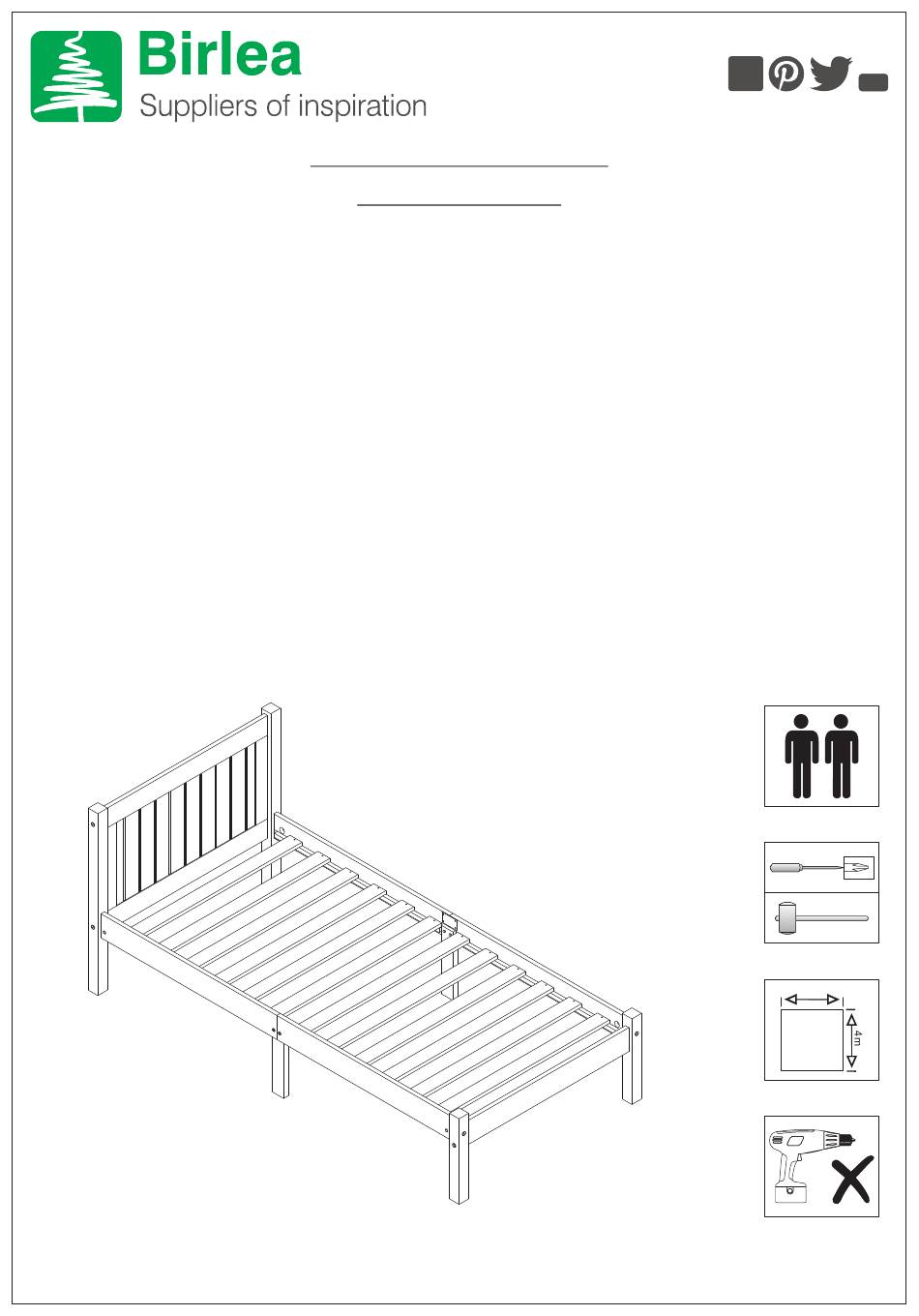

ASSEMBLY INSTRUCTIONS

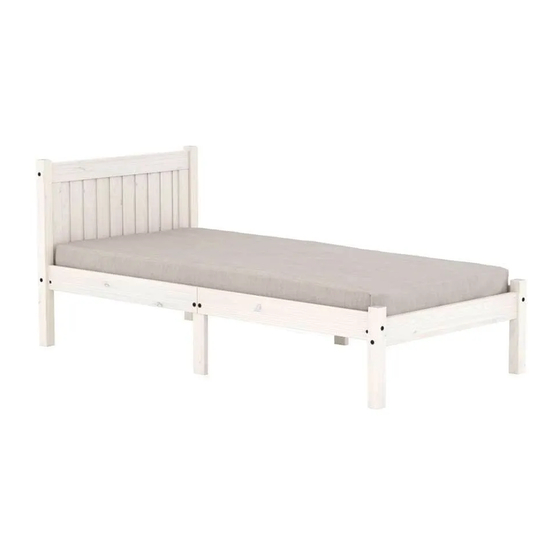

RIO 3' BED FRAME
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR
USING YOUR RIO 3' BED FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damaged or worn.
DO NOT use this bed frame unless all fixings are secured.
Always use on a level, even surface.
WARNING:
If this bed is placed on a non-carpeted floor you must place some protection under all legs to stop
the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
4 m
www.birlea.com
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Birlea RIO 3 BED FRAME
Summary of Contents for Birlea RIO 3 BED FRAME
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the bed frame as this will damage the legs. Always lift the bed with two people to reposition. Keep any sharp objects away from the frame. www.birlea.com Page 1 of 7...
- Page 2 Code: S000238 Left footboard post (40 x 5.2cm) Right footboard post (40 x 5.2cm) 1 Headboard panel (88.2 x 57.4cm) Slat x 12 (91.2 x 6.5cm) 2 Footboard panel (88.2 x 11.2cm) Support side rail x 2 (32 x 6.5cm) 3 Side rail x 4 (95 x 11.2cm) 9 Hardware Kit x 1...
- Page 3 Step 1: Insert hardware part B to the side rails (3) using a small mallet (not provided). Vendor: S000238 Step 2: Insert the dowels B into both siderails as per the drawing. Please note that the support for the slats must be pointing up and the holes must be pointing outside. Step 3: Join the two rails (3) and attach the support leg (8) using hardware E, J, K (spanner not provided).
- Page 4 Step 4: Attach metal bracket L to the joint of the siderails using hardware C and a screwdriver Vendor: S000238 (not provided) to fix them, this is for extra support. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Insert hardware part A to the headend panel (1) and footend panel (2) using a small mallet (not provided).
- Page 5 Step 6: Attach the headend post (4) to the headend panel (1) using hardware parts F and M. Vendor: S000238 DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Attach the left footend post (5) and right footend post (6) to the footend panel (2) using hardware parts F and M. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Step 8: Attach the side rails to the headend posts at the same time using hardware parts G, H and M. Vendor: S000238 DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 9: Fix slats (7) to the side rails using hardware parts N and D with a screwdriver (not provided).
- Page 7 • If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
