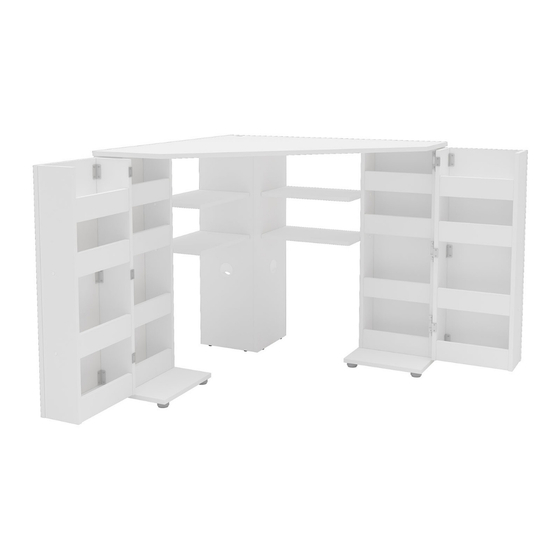

Corner dressing table with storage
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on
our social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with
your order, please contact the retailer you purchased the item from. We will
work with the retailer to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop voucher
simply post a picture of your new product
on your preferred social channels tagging
Birlea Furniture and using the hashtag
#ShareYourStyle and #Birlea. One winner
will be selected at random each month.
To view our full terms and conditions please visit our website. www.birlea.com
www.birlea.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the OLIVIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Birlea OLIVIA

Summary of Contents for Birlea OLIVIA

  • Page 1 #ShareYourStyle and #Birlea. One winner Birlea product. will be selected at random each month. To view our full terms and conditions please visit our website. www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.
  • Page 2 Assembly Video For a step by step guide on how to build our Olivia Corner Dressing Table With Storage visit our YouTube channel 'BirleaFurnitureLtd' or alternatively scan the below code on your smart phone. How to scan a QR code from an apple device...

  • Page 3: Health And Safety

    ASSEMBLY INSTRUCTIONS OLIVIA CORNER DRESSING TABLE WITH STORAGE IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR OLIVIA CORNER DRESSING TABLE WITH STORAGE PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn.
  • Page 4 Vendor: S000139 Parts List Descripion Part Shelf Smaller Fixed Module Tray Fixed Module Shelf Bottom Base Left Side Fixed Module Left Left Side Door Module Left Right Side Door Module Left Left Division Left Coast Right Coast Right Division Left Side Door Module Right Right Side Door Module Right Right Side Fixed Module Right Front Door...
  • Page 5 Vendor: S000139 Hardware List Descripion Part 5 x 60 mm Screw Smalll Plastic foot Flat head screw Bushing Metalic angle plates 8 x 30 mm Wooden Dowel Strap 6 x 30 mm Wooden Dowel Structural Screw Allen Key Structural Screw Cover Simple Minifix Screw Cam Lock Plastic Foot...
  • Page 6 Vendor: S000139 Step 1: Insert hardware part F1 using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. (8x) (8x) Step 2: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 7 Vendor: S000139 Step 4: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. (4x) Step 5: Insert hardware part E using small mallet (not provided). Insert hardware part A2 using hardware part N and small mallet (not provided).
  • Page 8 Vendor: S000139 Step 7: Insert hardware part B5 using hardware part S and screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. (2x) Step 8: Insert hardware part J with a screwdriver (not provided). Insert hardware part V15 using hardware part S and screwdriver (not provided).
  • Page 9 Vendor: S000139 Step 9: Attach the shelf (04) to the left coast (10) using hardware part G and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Join the left division (09) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 10 Vendor: S000139 Step 11: Join the shelf smaller fixed module (02) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 12: Join the shelf smaller fixed module (02) to the assembled section.
  • Page 11 Vendor: S000139 Step 13: Join the tray fixed module (03) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 14: Join the left side fixed module left (06) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 12 Vendor: S000139 Step 15: Join the bottom base (05) to the assembled section using hardware part G and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 16: Insert hardware part L4 using hardware part A8 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 13 Vendor: S000139 Step 17: Attach the shelf (04) to the right coast (11) using hardware part G and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 18: Join the right division (12) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 14 Vendor: S000139 Step 19: Join the shelf smaller fixed module (02) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 20: Join the shelf smaller fixed module (02) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 15 Vendor: S000139 Step 21: Join the tray fixed module (03) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 22: Join the right side fixed module right (15) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 16 Vendor: S000139 Step 23: Join the bottom base (05) to the assembled section using hardware part G and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 24: Insert hardware part L4 using hardware part A8 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 17 Vendor: S000139 Step 25: Join the top (01) to the assembled section using hardware part L with a screwdriver (not provided) DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 26: Join the left coast (10) to the right coast (11) using hardware part S with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 18 Vendor: S000139 Step 27: Attach the coast (17) using the hardware part N and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 28: Insert hardware part P6. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 19 To secure the item to the wall use hardware parts A, B3 and E9 using a drilling machine (not provided) and a screwdriver (not provided). Then attach hardware part S to the item with a screwdriver (not provided). Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product. 1º...
  • Page 20 Vendor: S000139 Step 30: Attach the right side door module left (08) to the smaller shelf door module (18) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 31: Join the smaller shelf door module (18) to the assembled section.
  • Page 21 Vendor: S000139 Step 32: Join the tray door module (19) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 33: Join the left side door module left (07) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 22 Step 34: Join the front door (16) tto the assembled section using hardware part S with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 35: Attach the right side door module right (14) to the smaller shelf door module (18) using hardware part G, H and I.
  • Page 23 Step 36: Join the smaller shelf door module (18) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 37: Join the tray door module (19) to the assembled section. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 24 Step 38: Join the left side door module right (13) to the assembled section using hardware part G,H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 39: Join the front door (16) to the assembled section using hardware part S with a screwdriver (not provided).
  • Page 25 Step 40: Insert hardware part Y2 to the left side fixed module left (06) and right side fixed module right (15) using hardware part P5 and screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 1º...

  • Page 26: Additional Information

    If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
