Summary of Contents for Birlea OXFORD
-
Page 2: Health And Safety

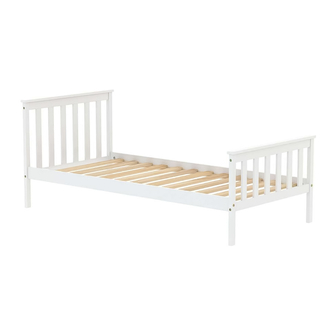

ASSEMBLY INSTRUCTIONS 90CM OXFORD PINE BED IMPORTANT:READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR 90CM OXFORD PINE BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT jump on this bed frame. DO NOT use this bed frame if any parts are missing, damaged or worn. - Page 3 Vendor:S000409 Parts List Hardware List Part Description Part Description Headboard Left Post M6×80mm Bolt Headboard Right Post Footboard Left Post φ10×30mm Dowel Footboard Right Post M6×70mm Screw Side Rail M6×70mm Bolt Bottom Rail Allen key Upper Rail φ4×30mm Screw Topper Plastic Cover Headboard Rail Footboard Rail...
- Page 4 Vendor:S000409 Step 2: Insert hardware part C to Headboard rail (9) and Footboard rail (10) using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 3:Attach the headboard left post(1) and headboard right post(2) to the bottom rail(6) and upper rail(7)using hardware parts A,B,DandF.
- Page 5 Vendor:S000409 Step 4:Attach Topper(8) to the Headboard/Footboard using hardware parts EandF. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the side rails(5)to the headboard&footboard posts using hardware parts A,BandF.
-
Page 6: Additional Information
● If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. ● Why don't you send us photos of your assembled furniture to info@birlea.com...
