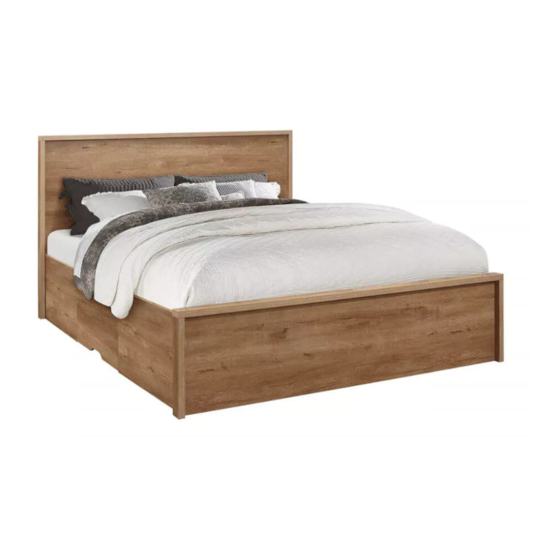

- Page 2 150CM STOCKWELL BED RUSTIC OAK EFFECT IMPORTANT : READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR 150CM STOCKWELL BED RUSTIC. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright.
- Page 3 Vendor: S000350 Parts List Hardware List (BOX 3) Part Descripion Qty Part Description Headboard panel Cam lock Tailstock panel Minifix screw Headboard & tailstock bone Plastic cap Headboard bone (Left) M8 x 30mm Wood Dowel Headboard bone (Right) Allen key M4 Tailstock bone (Left) M3.5 x 16mm C.B Screw Tailstock bone (Right)
- Page 4 Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, C, I and K. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page of 7...
- Page 5 Vendor: S000350 Step 2: Fix hardware J1 into middle panel (11), (12), (13) and (14) using hardware D with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. D x 12 ( L/R ) J1 x 4...
- Page 6 Vendor: S000350 Step 5: Attach middle panel (11) and (12) to bed side panel (8) and center panel (10) then attach another middle panel (13) and (14) to bed side panel (9) and center panel (10) using hardware A1 and A2 with a screwdriver (not provided).
- Page 7 Vendor: S000350 Step 8: Attach bed slat panel (15) to bed side panel (8) and (9) using hardware E with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. E x 8 Step 9: Attach drawer bone (20) to drawer front (16) and drawer back (17) using hardware A1 and A2 with a screwdriver (not provided).
- Page 8 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. · Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on instagram. Page...
