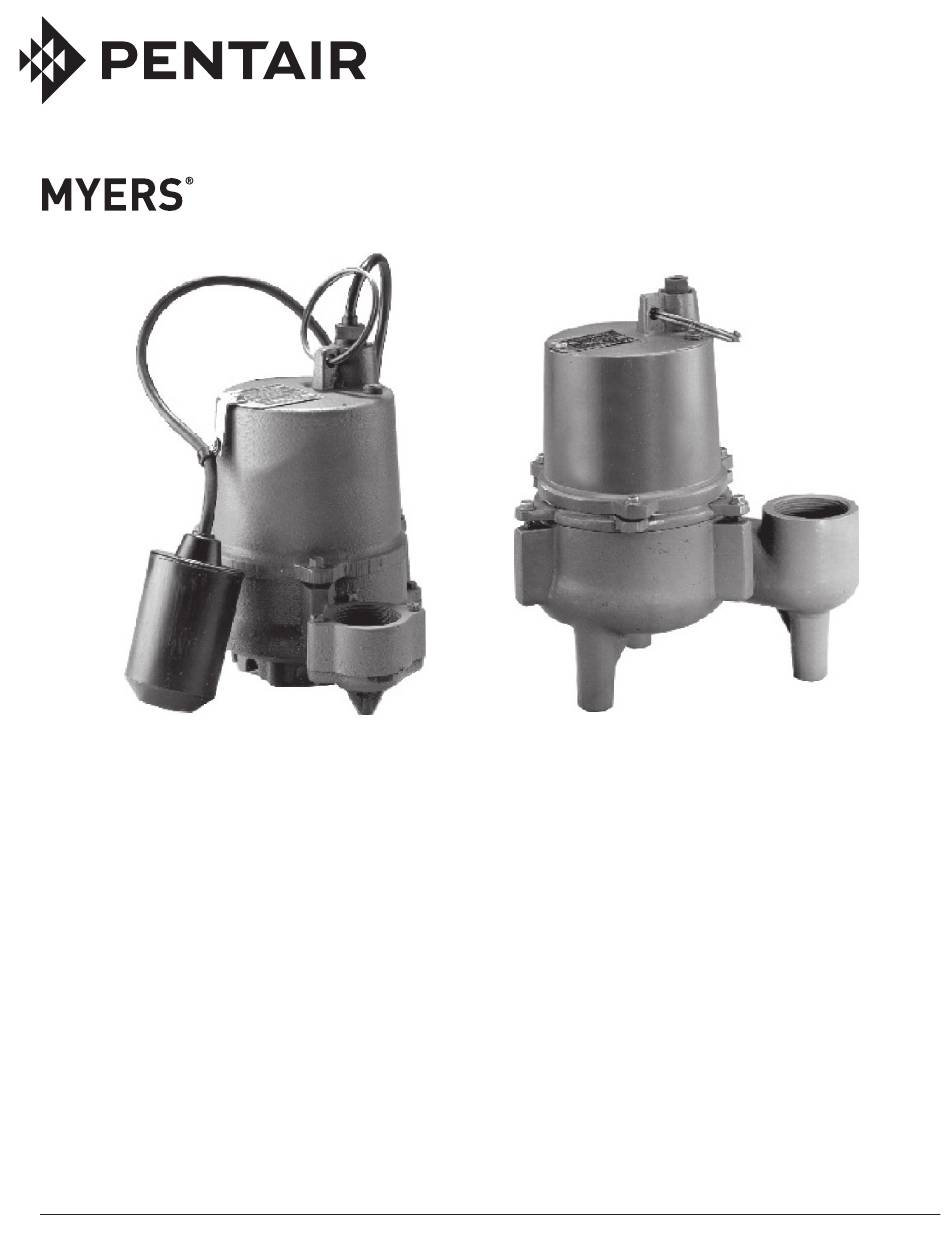

SSM33I
SRM4
SUMP/EFFLUENT PUMPS
SUMP/EFFLUENT/SEWAGE PUMPS
(115 Volt – Single Phase Only)
(115 or 230 Volt – Single Phase)
The SSM33 series pumps have been replaced by the SSM33I series pump as of February 2000.
SSM33/SSM33I/SRM4 SERIES
SUBMERSIBLE SUMP, EFFLUENT
AND SEWAGE PUMPS
INSTALLATION AND SERVICE MANUAL
Automatic and manual models. Single phase power only – 115 or 230 volt.
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Part # 13800A991 | © 2012 Pentair Pump Group, Inc. | 11/14/12
Advertisement
Related Manuals for Pentair MYERS SSM33 Series
Summary of Contents for Pentair MYERS SSM33 Series
- Page 1 Automatic and manual models. Single phase power only – 115 or 230 volt. NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 13800A991 | © 2012 Pentair Pump Group, Inc. | 11/14/12...
- Page 2 NOTE: READ THESE INSTRUCTIONS CAREFULLY is tethered directly to the pump. The switch can BEFORE ATTEMPTING TO INSTALL PUMP. optionally be mounted to the discharge pipe using a minimum 3-5/8" tether length. The switch must float free from pump and basin wall. Plug the switch DESCRIPTION AND APPLICATION cord plug into a properly grounded, rated voltage receptacle.
-
Page 3: Installation
INSTALLATION c. Where control panel is used be sure H-O-A switch is in the AUTO position. If it does not WARNING: Basin or tank must be vented in run, turn switch to the HAND position and if the accordance with local plumbing codes. These pump runs then the trouble is in the automatic pumps are not designed for and CANNOT be electrical system. - Page 4 TO REPLACE THE AUTOMATIC VERTICAL 4. Mount new switch assembly to pump. Be sure to install plastic tie provided and retether to mounting FLOAT SWITCH screw. 1. Unplug the pump power cord from the back of the 5. Cable tie or tape the power and switch cords to piggyback plug.
- Page 5 PARTS LIST SSM33/SSM33I AND SRM4 Ref. Part Ref. Part No. Description Req’d. Numbers No. Description Req’d. Numbers Ring, Lift 26230A000 Plate, Bottom, with Volute Case 27005D000 Plug, 1/4" NPT 05022A056 Screw, Tapping, #10 x 1" Lg. Plate, Name (Not Stamped) 23780A000 (SSM33, SRM4) 09822A036...
- Page 6 TYPICAL SECTION DRAWING FOR SSM33/SSM33I SERIES Piggyback Control Control Vertical Float Switch 10' Cord Control Vertical Float Switch 20' Cord. Not Shown (Automatic Only) Cable Tie. Not Shown (Automatic Only) 13800A991 11/08/12...
- Page 7 TYPICAL SECTION DRAWING FOR SRM4 SERIES Piggyback Control Cable Tie Not Shown (Automatic Only) 13800A991 11/08/12...
- Page 8 TYPICAL SUMP INSTALLATION FOR SSM33/SSM33I SERIES SSM33I SERIES DIMENSIONAL DRAWINGS GROUNDED TYPE 115 OR 230 VOLT RECEPTACLE. MIN. HEIGHT ABOVE FLOOR 4 FEET. PUMP CORD PLUGS INTO SERIES SWITCH CORD FOR AUTOMATIC OPERATION. PUMP CORD CAN BE PLUGGED DIRECTLY " INTO RECEPTACLE MIN.
- Page 9 TYPICAL SUMP INSTALLATION FOR SRM4 SERIES SRM4 DIMENSIONAL DRAWING GROUNDED TYPE 115 OR 230 VOLT RECEPTACLE. MIN. HEIGHT ABOVE FLOOR 4 FEET. Turn On PUMP CORD PLUGS INTO SWITCH CORD FOR AUTOMATIC OPERATION. PUMP CORD CAN BE PLUGGED DIRECTLY INTO RECEPTACLE FOR MANUAL OPERATION.
- Page 10 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 12: Standard Limited Warranty
Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
