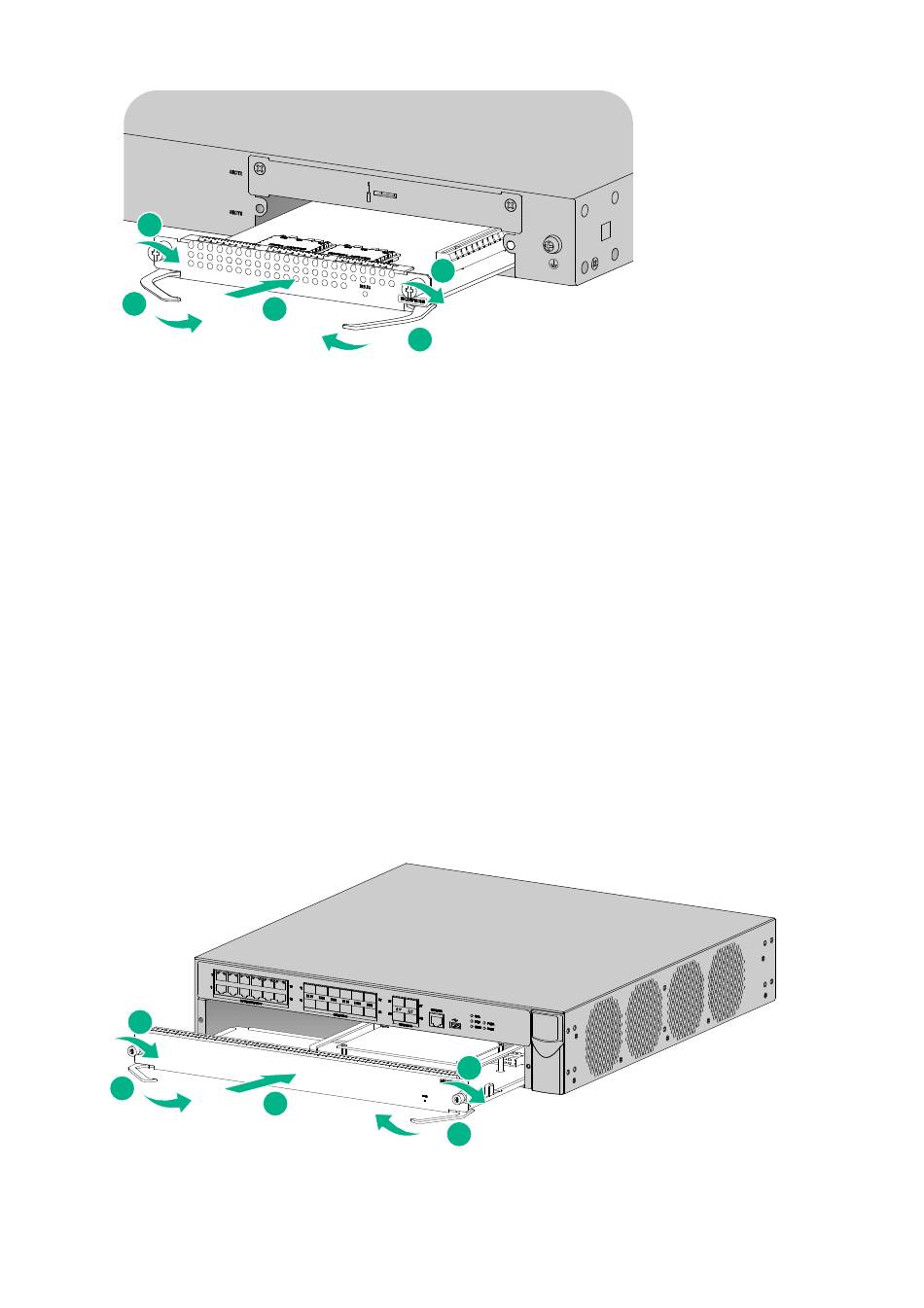

Figure 11 Installing an NSQM1F1KGMB encryption module
3
2
Installing an NSQM1F5KGM0 or
NSQM1F5KGMC encryption module
The installation procedure is similar for the NSQM1F5KGM0 and NSQM1F5KGMC encryption
modules. The following procedure installs an NSQM1F5KGM0 encryption module.
To install an NSQM1F5KGM0 encryption module:
1. Face the rear panel of the device and identify the target slot.
2. Use a Phillips screwdriver to loosen the captive screws on the filler panel and then remove the
filler panel from the slot.
Keep the removed filler panel secure.
3. Open the ejector levers of the encryption module and then gently push the module into the slot
along the guide rails.
4. Close the ejector levers. Make sure the module is seated securely in the slot.
5. Use a Phillips screwdriver to fasten the captive screws on the module.
Figure 12 Installing an NSQM1F5KGM0 encryption module
3
2
3
1
2
1
3
2
9
