Installing an NSQM1F1KGMB or
NSQM1F1KGMC encryption module
The installation procedure is similar for the NSQM1F1KGMB and NSQM1F1KGMC encryption
modules. The following procedure installs an NSQM1F1KGMB encryption module.
To install an NSQM1F1KGMB encryption module:
1. Face the rear panel of the device and identify the target slot.
2. Use a Phillips screwdriver to loosen the captive screws on the filler panel and then remove the
filler panel from the slot.
Keep the removed filler panel secure.

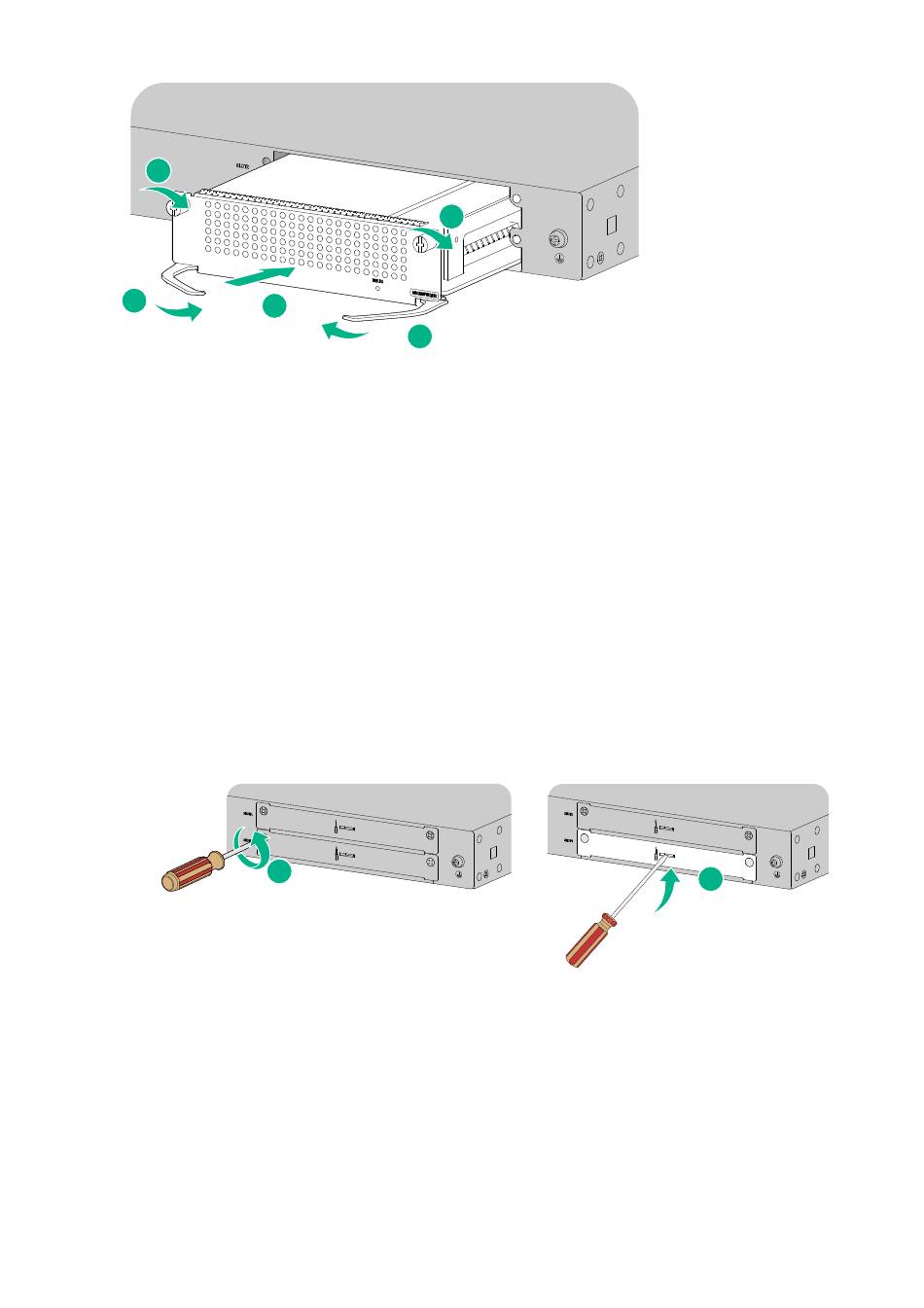

Figure 10 Removing the filler panel
3. Open the ejector levers of the encryption module and then gently push the module into the slot
along the guide rails.
4. Close the ejector levers. Make sure the module is seated securely in the slot.
5. Use a Phillips screwdriver to fasten the captive screws on the module.
