H3C SecPath M9000-S NSQM2FWDFG0 Manual

Manual version: 6PW103-20190904
H3C SecPath M9000-S NSQM2FWDFG0 firewall
1 Identifier
The module identifier NSQM2FWDFG0 is in the right side of the front panel.
2 About the module
The H3C fourth-generation high performance firewall module NSQM2FWDFG0 is developed for the
H3C M9000-S multiservice security gateway series. The module provides features including firewall,
VPN, content filtering, content identification, URL filtering, and NAT and can greatly enhance security
capabilities of the gateway.
3 Specifications
The module has a console port, a USB port, a GE copper port, and a hard disk slot.

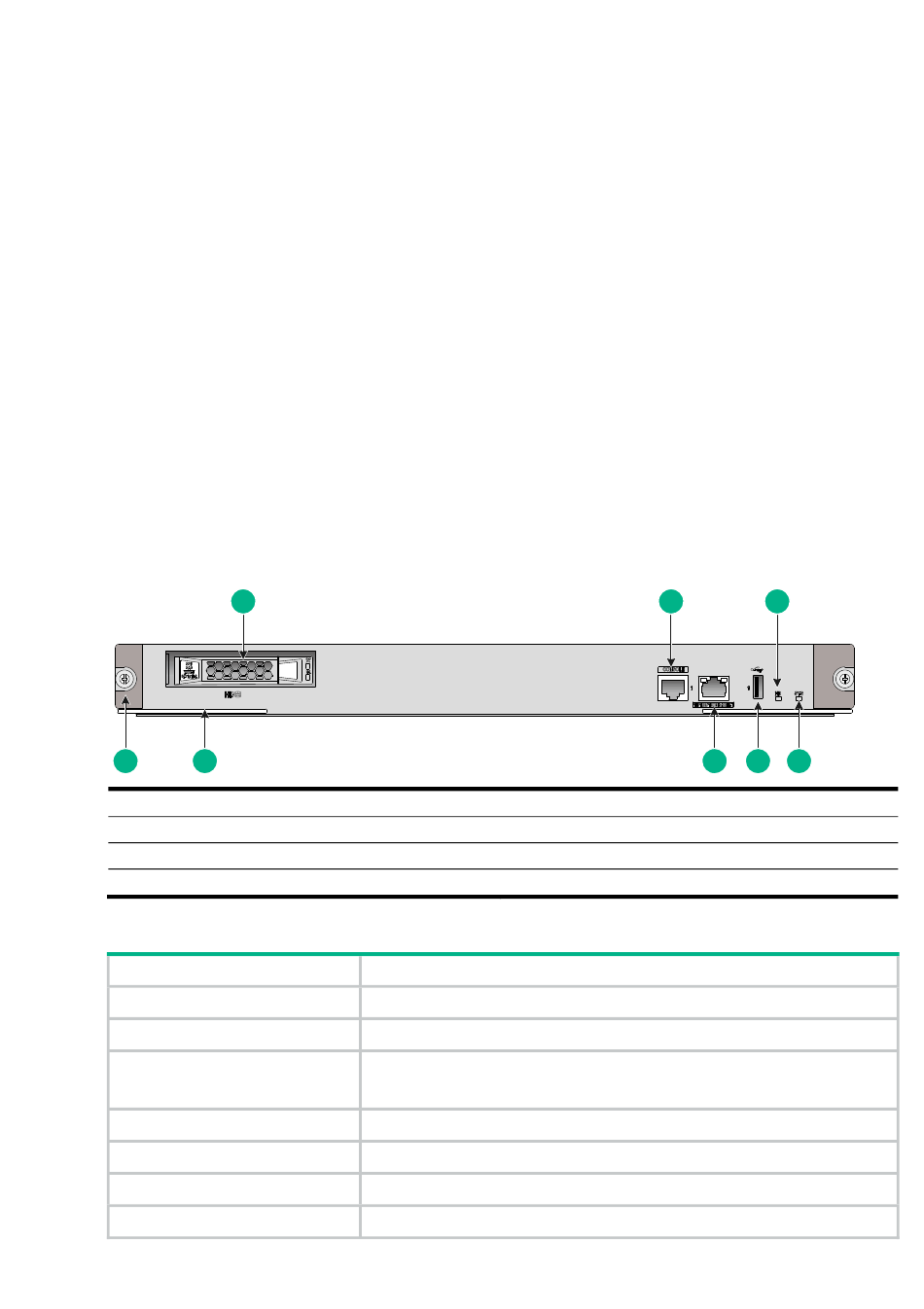

Figure 1 Front panel
8 7
(1) Hard disk slot (reserved)
(3) Hard disk LED (HD) (reserved)
(5) USB port (reserved)
(7) Ejector lever
Table 1 Module specifications
Item
Flash
Memory
Micro SD card
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
module
1
Specification
8 MB Nor Flash
64 GB DDR3 VLP RDIMM
One built-in Micro SD card slot
Standard configuration: 8 GB
40.1 × 399.2 × 354.8 mm (1.58 × 15.71 × 13.97 in)
185 W to 204 W
4.7 kg (10.36 lb)
Supported
(2) Console port (CONSOLE)
(4) System status LED (SYS)
(6) GE copper port (10/100/1000BASE-T)
(8) Captive screw
i
BOM: 3123A1N4
