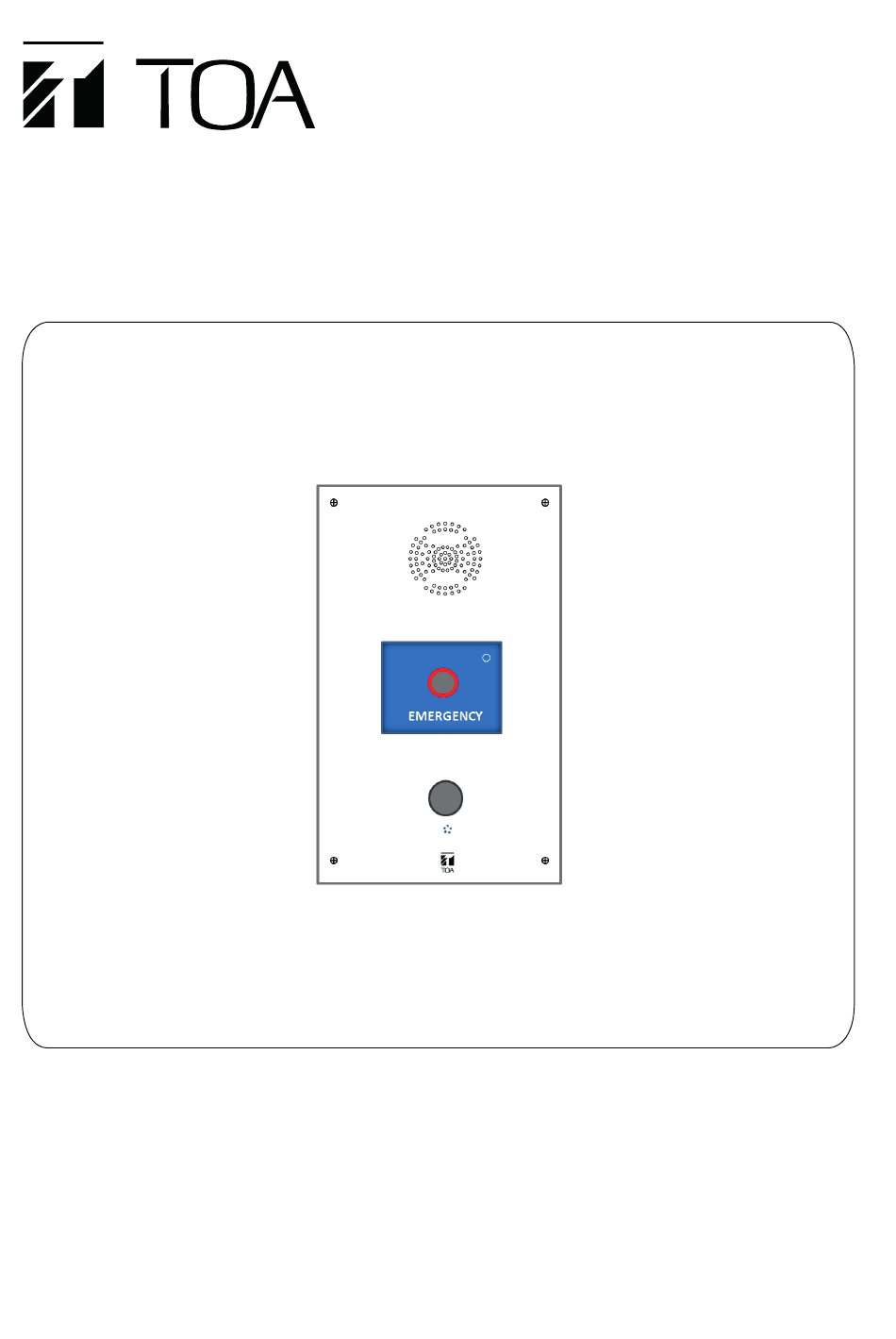

OPERATING INSTRUCTIONS
Intercom Emergency Substation
RS-410EC e
Thank you for purchasing TOA's Intercom Station.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note: For operation of the units, refer to the N-8000 series operating instructions.
TOA Electronics Europe GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-410EC e and is the answer not in the manual?

Questions and answers

Related Manuals for Toa RS-410EC e

Summary of Contents for Toa RS-410EC e

  • Page 1 Intercom Emergency Substation RS-410EC e Thank you for purchasing TOA's Intercom Station. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. Note: For operation of the units, refer to the N-8000 series operating instructions.

  • Page 2: Safety Precautions

    TOA dealer. Make no further generate and result in a fire. attempt to operate the unit in this condition as this The lighting flash with arrowhead symbol, may cause fire or electric shock.

  • Page 3: General Description

    2. GENERAL DESCRIPTION The RS-410EC e is an Information-/Emergency-Call Intercom substation, to be connected to the N-8400RS 4-wire Substation Interface Unit. The substation is designed to be used in public areas under rough environmental conditions. It is impact proof (IK10) and weather resistant (IP65) and therefore vandal proof. The operating temperature ranges from -10°C up to + 50°C.

  • Page 4: Nomenclature And Functions

    6. NOMENCLATURE AND FUNCTIONS [Front] [Rear] 1 2 3 4 E 1. Torx Screw 5. Standard Push button Used to call the pre-programmed master station. Use Torx Screwdriver: Size T10 to screw or to (See unscrew the substation. 6. Microphone 2.

  • Page 5: Operation

    Step 3 After the called party responds the push button lights and the emergency conversation can start. Notes The RS-410EC e processes one call at a time. Further pressing of a button Talk when the button lights Duplex conversations does not direct the call to another station. After the call has been proceeded and finished a new call can be processed.

  • Page 6: Installation

    Mount the substation to the IW-101 electrical box if mounted in the wall. Mount the substation to the OW-101 if mounted on the wall. Note Tightly seal all panel edges of the OW-101. 8.2. Installation of the Substation RS-410EC e Note Tightly seal all panel edges of the...
  • Page 7 9. Connection 9.1. Terminal plug connection Step 1. Strip a cable jacket of approx. 7 mm from the cable end. p. 10 For cables, refer to , type of cable. 7 mm Note Do not solder plate on exposed inner cables when using a stran- ded wire.
  • Page 8 10. PROGRAMMING The RS-410EC e shall be programmed via latest N-8000 Setting Software and it shall be registered via the Model Name: RS-442. The system mode shall be “Selective Response” 10.1 Programming the LED of emergency push button (lit if the emergency button was pressed) Activate Calling Station Indication ->...

  • Page 9: Dimensional Diagram

    Call 2 = Call Target for Emergency Push Button Call 2 = 5 (emergency call / high priority) Call 3 = Not available Call 3 = Not available DIMENSIONAL DIAGRAM [FRONT VIEW] [BOTTOM VIEW] RS-410EC e Unit: mm OW-101 IW-101...

  • Page 10: Specifications

    • Options Surface-mount box: OW-101 ........... Flush-mount box: IW-101 ............Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorised representative TOA Electronics Europe GmbH TOA Electronics Europe GmbH Suederstrasse 282, 20537 Hamburg, Germany Suederstrasse 282, 20537 Hamburg, Germany http://www.toa.de/ 833TEERZ1603b...
