Toa MS-900 Specifications

TOA Electronics, Inc.
VS-900
S
ECURITY
I S
NTERCOM YSTEMS
The TOA VS-900 SECURITY INTERCOM SYSTEM
provides reliable and intelligible voice communication
for critical security applications, including corporate
security,correctional institutions,educational facilities,
hospital access points, and parking structures. For
over 35 years,TOA has developed a proven track
record of innovative, reliable intercom products,
including the groundbreaking EXES and IC-100 systems.
The TOA VS-900 system is UL and CUL Listed and
manufactured to ISO-9001 standards to ensure
continuous operation for extended periods.
Ideal for applications with multiple "sub"stations
calling in to one or more "master"stations, the VS-900
has a wide range of standard and software pro-
grammable features, including comprehensive Call-
Forwarding to allow system operators freedom of
movement and most importantly, to ensure that no
calls go unanswered. The VS-900 integrates easily
with access control and video surveillance equip-
ment via a simple RS-232 communications protocol.
Other features include telephone system integration,
paging and external source distribution, event log-
ging, and recording outputs.
The VS-900 scalable architecture allows the most
cost effective configuration for each application
with easy expansion as the size of the facility grows.
Each exchange mainframe supports up to 4 master
stations and 64 sub-stations. For large systems,
exchanges can be expanded or "tie-lined"to provide
up to 64 master stations and 1,024 sub-stations. The

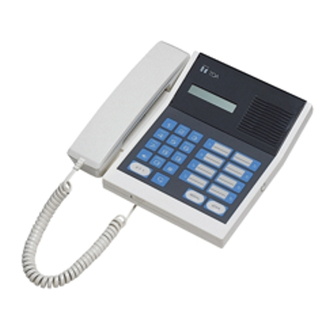

master stations can be either the TOA MS-900 or standard
off-the-shelf single line telephones with support for
Caller-ID signaling. Sub-stations include Economy,
Indoor, Outdoor, and Panic models, each with heavy-
duty plate, call switch and optional LED/relay control.
Direct select interface cards provide relays,LED drivers
and switch inputs for custom consoles and annunci-
ator panels.
The VS-900 Security Intercom System is backed with
a two-year warranty.
Features
Security Intercom Systems
for critical applications such as corporate, correctional,
educational, government, military, parking structures, police, and others
"Sub-to-Master" and "Master-to-Master" Station Communication
Proven TOA Quality and Reliability
UL-Listed, Manufactured to ISO-9001 Standards
User-Friendly Installation, Setup and Maintenance
Modular Design
— Scalable for cost-effective system configurations with easy
system expansion
Station Capacity:
Single Exchange Mainframe:
4 Master stations and 64 Sub-stations
Up to 16 Tie-lined Exchange Mainframes:
Flexible Programming and Control Software
exchanges from one PC or remotely via modem
Security System Integration
— Communication protocol available for remote control and
monitoring of intercom system functions from external devices
Comprehensive Call Forwarding Features
to prevent unanswered calls and allow attendant mobility
Recording Outputs
— For individual conversation recording of each master station,
telephone master station and telephone line port with start/stop control activation
Event Logging
— All system events are date and time-stamped for PC archiving
Master Station Flexibility
— Supports TOA MS-900 or standard Caller-ID analog telephones
Console Master Interface
— Allows custom master station fabrication with headset,
microphone, speaker, and key ports
Durable Sub-stations
— Choose from Economy, Indoor, Outdoor, and Panic models,
each with heavy-duty plate, call-switch and optional LED/relay control
Simple "Star Configuration" Wiring
twisted pair (sub) or two twisted pairs (master)
Extended Cable Runs
— Master Stations: 7,546 ft. , Sub-stations: 4,265 ft. and Tie-Lined
Exchanges: 4,921 ft. (#20 AWG)
Site Connector Interface
— Allows remote exchange connections with fiber optic or
other media converters
Telephone Interface
supports two outside C/O telephone lines or trunks
Paging Interface
— For external amplifier zone distribution with sixteen control ports
External Source Input
— For station and external amplifier zone distribution with
four trigger inputs
Two Year Warranty
Applications
Access Control
Corporate Security
Correctional Institutions
Educational Facilities
VS-900
64 Master stations and 1,024 Sub-stations
— For setup and maintenance of multiple
— Busy, No-Answer, C/O Line and Time-Based
— Each station connects to exchange via shielded,
Government Parking Garages
Hospital Access Points Parking Structures
Industrial Police
Military Restricted Door Access
