VIDEO INTERCOM SYSTEM
Note: For operation of the system, refer to the N-8000 series operating instructions.
RS-480V should be setup as a substation connected to N-8400RS in the N-8000 setting software.
1. GENERAL DESCRIPTION

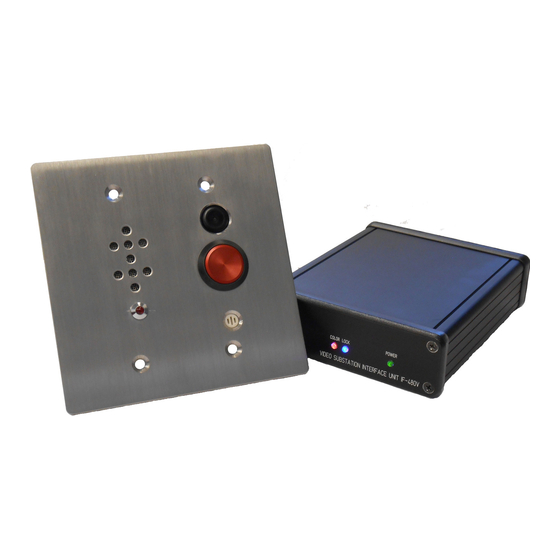

The RS-480VSET consists of an intercom substation RS-480V, and a video substation interface unit IF-480V.
The RS-480V is an intercom substation with a color camera which is designed for indoor and outdoor use in
combination with the IF-480V, and the N-8400RS substation interface unit. It requires only one CAT5 cable to
connect between the RS-480V and the IF-480V.
2. SPECIFICATIONS
2.1. Basic Specifications
[RS-480V]
Power Source
Call Button
Rated Input
Control Output
Internal Speaker
Internal Mic
Camera Resolution
Camera Angle
Minimum Illumination
Function
Indicator
Wiring
Transmission Range
Operating Temperature
Finish
Dimensions
Weight
Supplied Accessories
Applicable Box
[IF-480V]
Power Source
Indicator
Connectors
Finish
Dimensions
Weight
Supplied Accessories
Options
Supplied from IF-480V
Momentary (Emergency call: Press twice within 400 ms.)
1 W
Open collector, Maximum controlled voltage: 30 V DC, Control current: 30 mA
Cone-type
Electret condenser type
520TVL
170° horizontal
0.008 lux/f2.0
Day & night dual mode auto switch
When called: Status indicator (red) flashing
In conversation: Status indicator (red) is lit
CAT5 cable, RJ45 female connector attached
3,000ft (AWG24)
–10 to +50°C (Temperature range not to freeze the speaker and switch)
Panel: Stainless steel, hairline
Call button: Metal, silver
4.72"(w) x 4.72"(h) x 1.99"(d) (120 x 120 x 50.5mm)
1.30 lb (605g)
No.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4
2-gang electrical box: YC-302 (option)
Supplied AC adapter must be used
Power LED (green), Lock LED (blue), Color LED (orange)
RJ45 (to RS-480V), Removable terminal block 4P (to N-8400RS),
BNC (Video out) x2
Anodized aluminum, Black
4.13"(w) x 1.30"(h) x 5.00"(d) (105 x 33 x 127mm)
10.00 oz (285g)
AC adapter
Rack mount plate: MB-480V4 (up to four IF-480Vs are mountable in 1 unit)
TOA Canada Corporation
INSTALLATION MANUAL
RS-480VSET
*Not including connectors.
