SUBSTATIONS
Thank you for purchasing TOA's Substation.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note: For operation of the units, refer to the N-8000 series operating instructions.
1. GENERAL DESCRIPTION

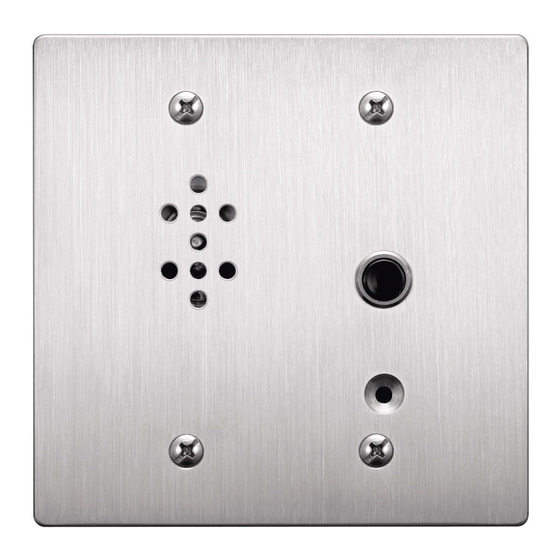

The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.
The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with
Dust/Water Protection Conforming to IP54 level.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.

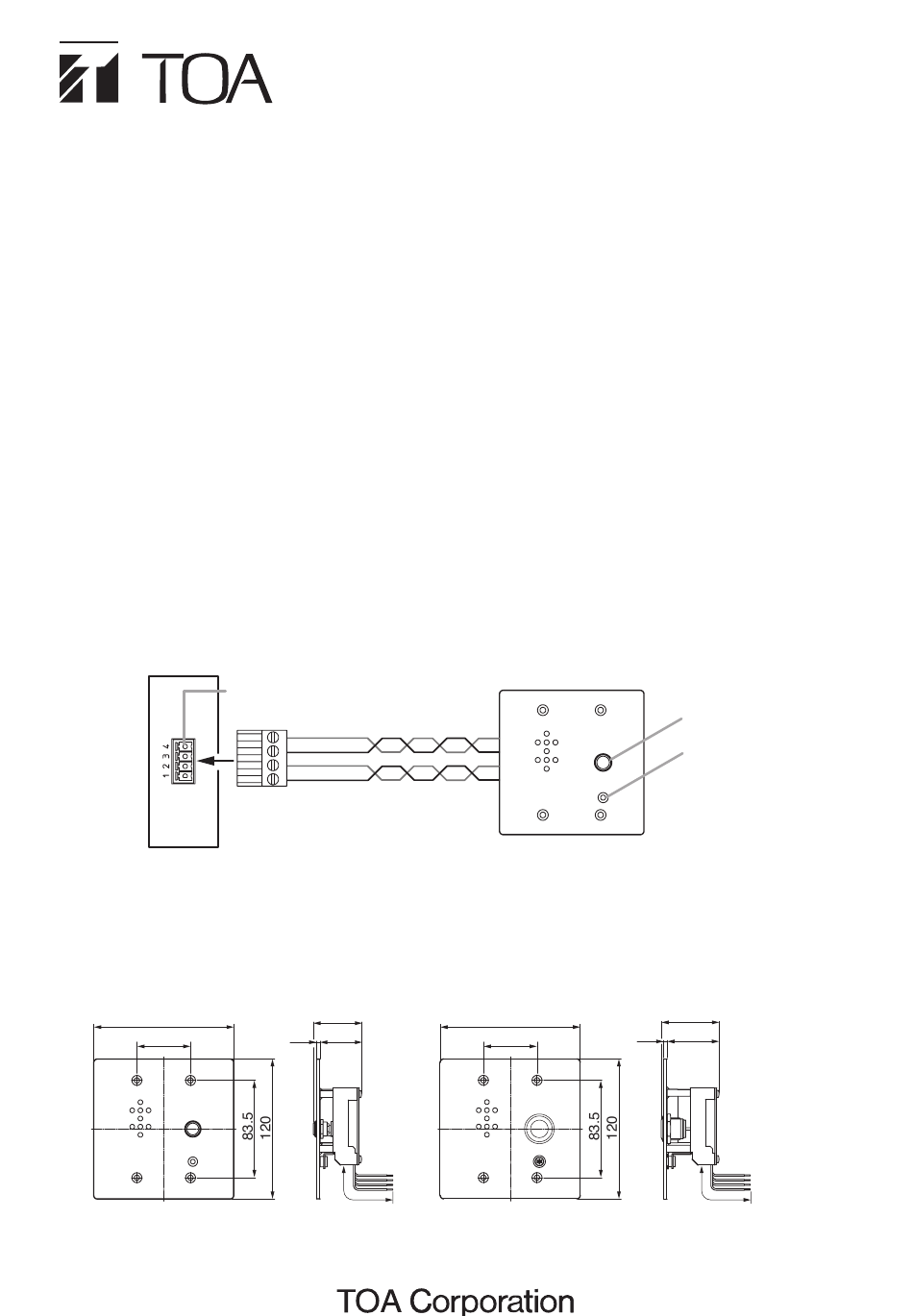

2. CONNECTIONS
N-8400RS
Substation interface unit
Substation connection terminal
3. INSTALLATION
[RS-450 dimensional diagram]
120
46
Two pair of twisted pair cable
Yellow
Orange
Red
Brown
Line 1 : Brown, Line 2: Red,
Line 3 : Orange, Line 4: Yellow
41.5
3
35.5
200 or less
INSTALLATION MANUAL
RS-450, RS-460,
or RS-470
Note: The figure represents the RS-450.
[RS-460/470 dimensional diagram]
120
46
RS-450
RS-460
RS-470
Call button
Microphone
49.5
Unit: mm
3
44.5
200 or less
