Takex GS-1100E Instruction Manual

Thank you for purchasing the TAKEX product. This sensor will provide long and dependable service when properly installed.
Please read this Instruction Manual carefully for correct and effective use.
Note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary-preventing device.
TAKEX is not responsible for damage or losses caused by accident, theft, Acts of God (including inductive lightning),
1
abuse, misuse, abnormal usage, faulty installation or improper maintenance.
PRODUCT DESCRIPTION

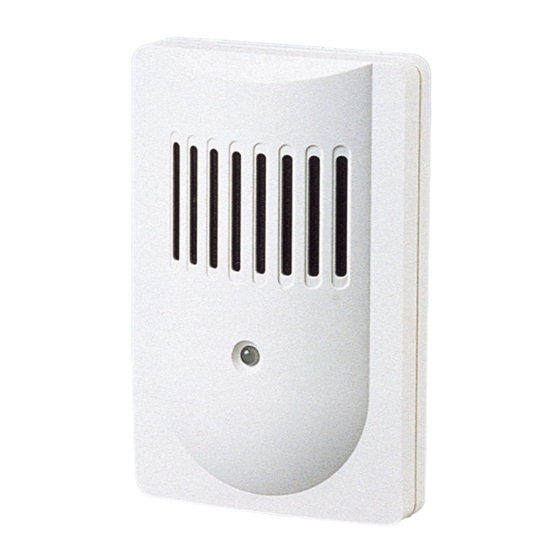

GS-1100E is an ultrasonic sensor designed to detect the sound of breaking glass such as plate glass windows, doors, showcases etc.
2

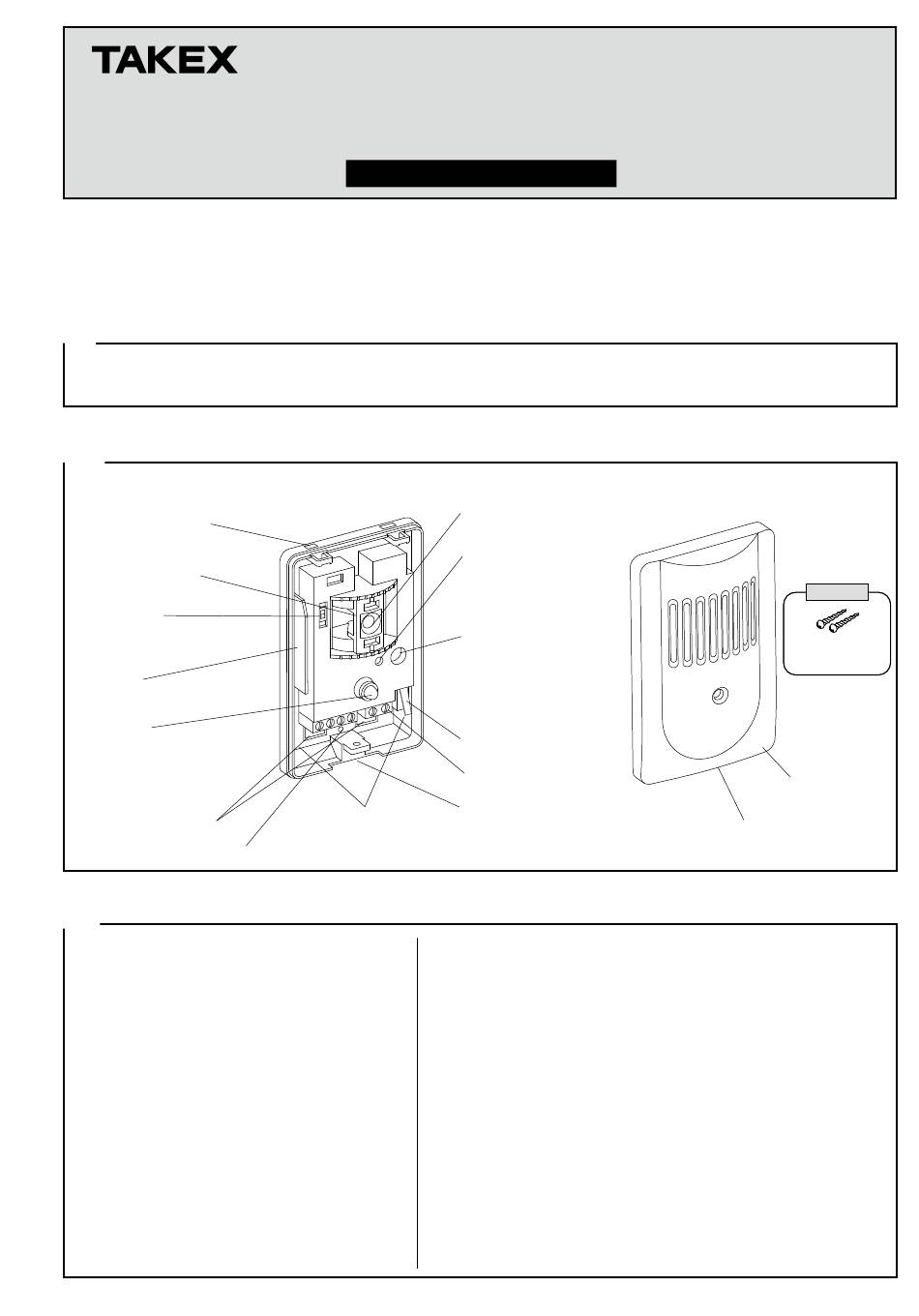

PARTS DESCRIPTION
Exposed wiring hole
(Knockout)
Microphone holder
Mode switch
(Factory set : "Operation mode")
Wire lead
(for exposed wiring)
Alarm LED
(Red)
* Lights up during an alarm.
* Displays the alarm memory.
Recessed wiring hole
(Knockout)
Mounting hole
3
DO'S AND DON'T'S
Precautions for use
●This unit is designed to detect the sound given
when glass is broken due to impact.
If glass is broken due to stress or other means this
may not be detected.
●Use of input voltage exceeding specifications may
result in fire.
●Use of equipment exceeding contact capacity of
30V (AC/DC) may result in fire.
●Unit should not be disassembled or modified due
to risk of electric shock or fire hazard.
●Do not drop unit or subject to hard knocks.
●Liquids, metallic and inflammable materials
should not be allowed to enter the unit.
GLASS BREAK SENSOR
GS-1100E
Instruction Manual
Detection microphone
Environmental LED
(Orange)
* Functions during check
Sensitivity volume
* Enables the sensitivity to
Tamper switch
Exposed wiring hole
Corner mounting hole
(Knockout)
(Knockout)
Precautions on installation
●Unit is designed for Indoor use only.
●Unit is designed for use in an enclosed environment only.
●Do not install in an environment subject to electrical noise or intense
vibration.
●Do not install in an environment subject to smoke, steam, excessive
humidity or dust.
●Do not install near products generating ultrasonic noise, such as 'bell'
telephones, printers, air conditioning vents, or in environments
generating similar ultrasonic sounds.
●Do not use in environments with poorly fitted window panes.
●Unit is designed for unmanned (vacant) protection only.
Alarms may be generated in the case of ultrasonic sounds artificially
generated.
●Ensure target to be protected is within protection area.
(Horizontal: 8m (26') Max. Vertical : 7m (23') Max.)
①
mode only.
be adjusted according to
the installation
environment.
(Factory set : "mid")
Terminals
Accessory
Tapping screw
3×30:2pcs
φ
Cover
Cover locking screw
