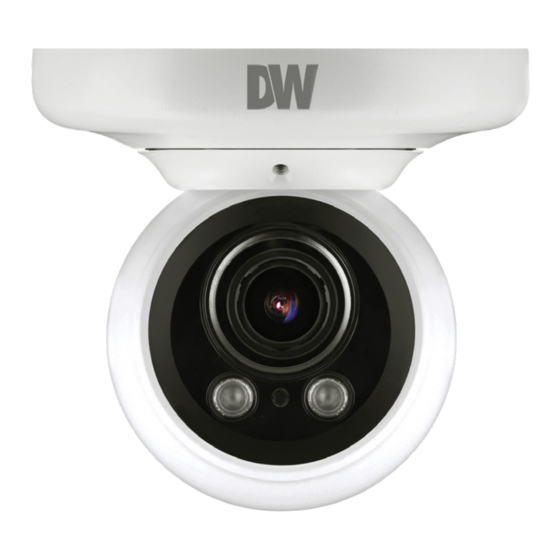

Digital Watchdog STAR-LIGHT PLUS Quick Start Manual

DWC-VA883WTIR

WHAT'S IN THE BOX

Hex Allen Mounting
1
wrench template
Mount Bolt & Nut
Screw &
Mount Bolt & Nut Torx Wrench
Plastic Anchor-2pcs
Screw and Quick
plastic 1 set setup
anchor-2pcs guide
Screw &
Torx Wrench Template Sheet
Plastic Anchor-2pcs
for installing by Bolt & Nut
DC plug 1
Template Sheet
Manual Test Video Cable
for installing by Bolt & Nut
NOTE: Download all your support materials and tools in one place.
Manual Test Video Cable
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the
initial setup. It is recommended that the user read the entire instruction
manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
Quick Start Guide
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. Use the mounting template to mark and drill the necessary holes in
the mounting surface.
Screw &
Mount Bolt & Nut Torx Wrench
Plastic Anchor-2pcs
1
Screw &
Torx Wrench
Plastic Anchor-2pcs
Template Sheet
Manual Test Video Cable
for installing by Bolt & Nut
1
Manual Test Video Cable
digital-watchdog.com
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the camera.
requirements
Mounting template
DC12V/AC24V dual
Quick Start Guide
Power
Power consumption
DC12V (LED off): 5.517W (460mA)
DC12V (LED on): 8.98W (748mA)
voltage
AC24V (LED off): 5.06W (358mA)
AC24V (LED on): 8.03W (552mA)
