Digital Watchdog Star-Light Plus DWC-V7553W User Manual

5mp universal hd over coax ultra low-profile vandal dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

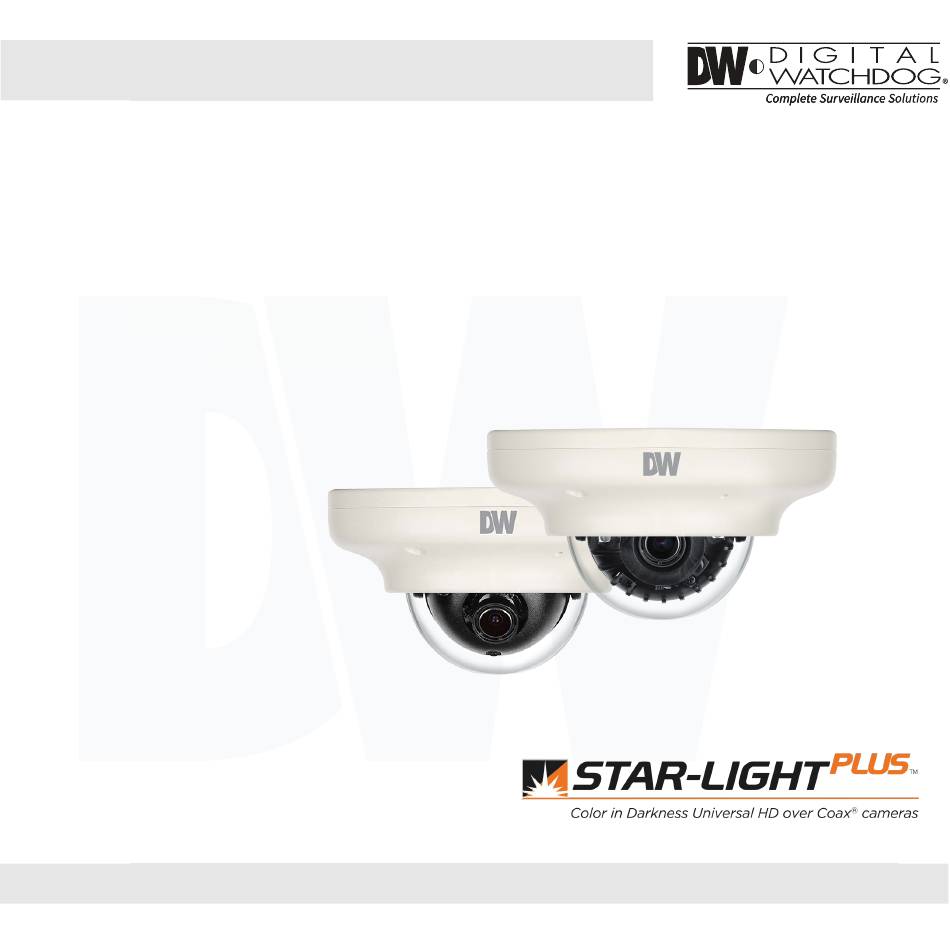

Star-Light Plus™ 5MP Universal HD
over Coax
dome camera
DWC-V7553W
DWC-V7553WTIR
User Manual
ver.: 03/20
Before installing and using the camera, please read this manual carefully.
nstalling and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
to keep it handy for future reference.
®
ultra low-profile vandal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Star-Light Plus DWC-V7553W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog Star-Light Plus DWC-V7553W

Summary of Contents for Digital Watchdog Star-Light Plus DWC-V7553W

  • Page 1 Star-Light Plus™ 5MP Universal HD over Coax ® ultra low-profile vandal dome camera DWC-V7553W DWC-V7553WTIR User Manual ver.: 03/20 Before installing and using the camera, please read this manual carefully. nstalling and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.

  • Page 2: Table Of Contents

    Contents INTRODUCTION Safety information Features Product and accessories Parts names Dimensions INSTALLATION Installation Connecting the camera to monitors Adjusting the camera's angle OSD MENU Menu tree OSD menu - Exposure OSD menu - Color OSD menu - Day and night OSD menu - Function OSD menu - Motion OSD menu - Privacy...

  • Page 3: Safety Information

    Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert consisting a risk of electric shock is present the user to the presence of important operating...
  • Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center.
  • Page 5 Important Safety Instructions 1. Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. 3.
  • Page 6 Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
  • Page 7 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities.

  • Page 8: Features

    Features Universal HD over Coax ® technology with HD-Analog, HD-TVI, █ HD-CVI and all analog to 960H signal support Star-Light Plus™ color in darkness technology █ 1/2.8" image sensor █ 5MP at 20fps, 4MP at real-time 30fps █ 2.8mm fixed lens (DWC-V7553W) █...

  • Page 9: Product And Accessories

    Product and Accessories Please check if all the camera and accessories are included in the package. Camera Cables Torque wrench Screw and plastic Mount bolt and nut anchor - 2pcs Mounting templates for Quick setup Test video cable regular and mount and guide bolt installations NOTE: The test video cable should be used to test the camera by connecting to a portable display.
  • Page 10 Part name (DWC-V7553W) Dome cover Panning stopper Tilt/rotation screw Lens OSD joystick Test video output Bottom case Power cable BNC cable...
  • Page 11 Part name (DWC-V7553WTIR) Dome cover Panning stopper Ambient light sensor Lens IR switch Tilt/rotation screw IR LED OSD joystick Test video output Bottom case Power cable BNC cable...

  • Page 12: Dimensions

    Dimension Unit: inches (mm) 4.13" (105mm) 1.11" (28.2mm) 1.27" (32.5mm)
  • Page 13 Installation - Disassemble the camera Before installing your camera, read the following cautions. 1. The mounting surface must withstand five times the camera weight. 2. Do not let the cables get caught in improper places or the electric line cover can be damaged.
  • Page 14 Installation - Instructions Using the mounting template or your camera, Template sheet mark and drill the necessary holes to mount the bracket to a wall or ceiling. Pull a necessary wires through and make the proper connections. See pages 14-15. DWC-V7553WTIR models Use the three mounting screws to install the...
  • Page 15 Installation - Using mount bold and nuts Using the mounting template or your camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Secure the two long mounting screws to the camera's base. Template Sheet Pull a necessary wires through and make the proper connections.
  • Page 16 Connecting to Monitors Use the diagram below to connect the camera to a Universal HD over Coax ® DVR. Video output 12VDC Universal HD over Coax ® Test video output Monitor - Power connection - the camera supports 12VDC voltage only. - All cameras are equipped with a test video output for on-site configuration.

  • Page 17: Adjusting The Camera's Angle

    Adjusting the Camera angle Adjusting the camera angle Adjust the camera angle while the camera is fixed on the ceiling. Pan is used to rotate the camera’s body to left and right, and Tilt is used to adjust the tilt. Rotating the lens by its axis is called Rotation.
  • Page 18 OSD Menu Tree EXPOSURE DAY & NIGHT (IR OPTION) EXPO D&N LENS MANUAL / AUTO MODE AUTO / COLOR / B&W EDGE DET OFF / ON IR LED ON / OFF BRIGHTNESS 0 ~ 20 SMART IR 0 ~20 SHUTTER AUTO / MANUAL / FLICKER D>N THRES 0~ 20...
  • Page 19 OSD Menu Tree MOTION SETUP MOTI COMM. CAM ID / BAUDRATE / CONFIRM DET WINDOWS 0 ~ 10 OUTPUT FRAME RATE / FREQ / SENSITIVITY ANALOG MODE / CONFIRM OFF / ON MOTION OSD OFF / ON ENG / CHN / CHN(S) / JPN / KOR LANGUAGE TEXT ALARM OFF / ON...

  • Page 20: Osd Menu_Exposure

    OSD Menu_Exposure Lens Manual: Manual mode supports the fixed board lens or the manual iris lens. Auto: AUTO mode sets the camera’s iris automatically. EXPOSURE EXPO LENS EDGE DET LENS AUTO LEVEL LEVEL EDGE DET RETURN COLOR BRIGHTNESS RETURN SHUTTER AUTO BACK-LIGHT STARLIGHT...
  • Page 21 OSD Menu_Exposure (cont.) Back-light EXPOSURE EXPO LENS AUTO HME (highlight masking exposure) 2-MOTOR BRIGHTNESS HME allows objects to appear clearly on the screen by SHUTTER AUTO masking extremely bright areas. BACK-LIGHT STARLIGHT To setup HME, set the level and color of the HME mask. The lower the number, the darker the areas have to be in 3D DNR HIGH...
  • Page 22 OSD Menu_Exposure (cont.) EXPOSURE EXPO LENS AUTO 2-MOTOR BRIGHTNESS SHUTTER AUTO BACK-LIGHT STARLIGHT 3D DNR HIGH RETURN Star-Light™ Off / x2 ~ x32 (default : x4) - Automatically activate the camera’s slow shutter when the image is too dark. High values are not recommended as they may causes the image to lag and increase digital noise.

  • Page 23: Osd Menu_Color

    OSD Menu_Color WB mode COLOR WHITE BAL. WHITE BAL. AUTO C-TEMP 5000K COLOR GAIN 10 R-GAIN RETURN B-GAIN RETURN Auto Compensates for color temperature changes between 2400K° and 12000K° . Compensates for color temperature changes under 2400K° and over 12000K°. AUTOext Preset Automatically set the white balance based on the current lighting conditions.

  • Page 24: Osd Menu - Day And Night

    OSD Menu_Day & Night DAY/NIGHT D&N DAY & NIGHT DAY & NIGHT MODE AUTO MODE COLOR MODE B&W IR LED IR LED NOT USED IR LED SMART IR SMART IR NOT USED SMART IR 3 D>N THRES RETURN RETURN N>D THRES D>N THRES NOT USED N>D THRES...

  • Page 25: Osd Menu_Function

    OSD Menu_Function FUNCTION DEFOG FUNC MODE MANUAL SHARPNESS LEVEL MIDDLE RETURN GAMMA 0.55 MIRROR FLIP D-ZOOM 1.0X DEFOG RETURN Sharpness 0 ~ 10: Set the image’s sharpness. The higher the number, the sharper the image. Gamma 0.45 ~ 0.75: Select the desired gamma level. 0.55 is the default setting. Mirror, flip Mirror: Reflects the camera horizontally.

  • Page 26: Osd Menu_Motion

    OSD Menu_Motion The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW WINDOW USE DET WINDOW WINDOW ZONE SENSITIVITY DET H-POS MOTION OSD DET V-POS TEXT ALARM DET H-SIZE SIGNAL OUT DET V-SIZE RETURN RETURN...
  • Page 27 OSD Menu_Motion (cont.) The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW WINDOW USE DET WINDOW WINDOW ZONE SENSITIVITY DET H-POS MOTION OSD DET V-POS TEXT ALARM DET H-SIZE SIGNAL OUT DET V-SIZE RETURN...

  • Page 28: Osd Menu_Privacy

    OSD Menu_Privacy You can hide some parts of the camera’s view to protect privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon shaped zones. PRIVACY PRIV ZONE NUM ZONE DISP POLYGON H-POS RETURN...
  • Page 29 OSD Menu_Privacy (cont.) You can hide some parts of the camera’s view to protect privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon shaped zones. PRIVACY POLYGON PRIV ZONE NUM ZONE DISP POLYGON POS0-X...

  • Page 30: Osd Menu_Setup

    OSD Menu_Setup COMM OUTPUT SETUP CAM ID FRAME RATE 1440p 30 BAUDRATE 9600 FREQ 60HZ CONFIRM ANALOG MODE HD_T COMM RETURN CONFIRM OUTPUT RETURN LANGUAGE CAM TITLE RESET RETURN COMM Adjust the camera’s ID and baudrate. The camera’s default protocol is Pelco-D. - Cam ID: Provide an ID number for the camera (0 ~ 255).
  • Page 31 OSD Menu_Setup (cont.) SETUP COMM OUTPUT LANGUAGE CAM TITLE RIGHT UP RESET RETURN Language Select from the following: English (default), Chinese, Chinese (S), Japanese and Korean. CAM title Add a name to the camera. Set the title by using the joystick right up / left down. Reset Reset the camera to its default settings.

  • Page 32: Osd Menu_Exit

    OSD Menu_Exit EXIT EXIT SAVE&EXIT EXIT RETURN Save and exit Exit the OSD menu after saving the recent changes. Exit Exit the OSD menu without saving any changes.

  • Page 33: Troubleshooting

    Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current.
  • Page 34 Specifications VIDEO Image sensor 1/2.8” CMOS sensor Active pixels 2608(H) x 1960(V) Scanning system Progressive scan Frequency 60Hz / 50Hz Signal technology Max 5.MP Universal Synchronization Internal 2592x1944 (1944p(12.5/20fps) (CVI Max 1440p)/1440p30(25)fps/ Resolution 1080p30(25)fps/720p30(25)fps) F1.8 (30IRE): 0.13 lux (color) (DWC-V7553W) Minimum scene illumination F2.0 (30IRE): 0.16 lux (color) (DWC-V7553WTIR) F2.0 (30IRE): 0 lux (B&W) (DWC-V7553WTIR)
  • Page 35 Specifications OPERATIONAL (CONT.) Wide Dynamic Range(WDR) LOW/MIDDLE/HIGH Digital Noise Reduction OFF / LOW / MIDDLE / HIGH AUTO / AUTOext / PRESET / MANUAL White balance Day and night AUTO / COLOR / BW Auto gain control 0 ~ 10 Motion detection ON/OFF (4 zones) Privacy zones...

  • Page 36: Limits And Exclusions

    This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
  • Page 37 Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 38 +1(904) 999-1309...
