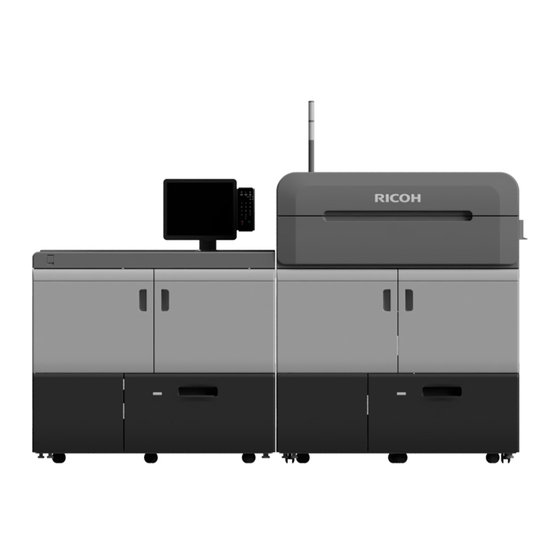

Ricoh Pro C9200 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Ricoh Manuals
  4. Printer
  5. Pro C9200
  6. Operating instructions manual

Ricoh Pro C9200 Operating Instructions Manual

Using the auto color diagnosis function
Hide thumbs Also See for Pro C9200:
Table of Contents

Advertisement

Quick Links

Auto Color
Diagnosis Guide
Using the Auto Color Diagnosis Function
For safe and correct use, be sure to read Safety Information before
using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro C9200 and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh Pro C9200

Summary of Contents for Ricoh Pro C9200

  • Page 1 Auto Color Using the Auto Color Diagnosis Function Diagnosis Guide For safe and correct use, be sure to read Safety Information before using the machine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Using the Auto Color Diagnosis Function Introduction................................. 3 Disclaimer................................3 Notes................................3 About the Auto Color Diagnosis Function......................4 Generating Paper Properties (When Using Fiery)................... 6 Using the "ACD Property" Screen......................... 6 Generating Paper Properties.........................8 Printing with Auto Color Diagnosis......................11 Printing Diagnostic Marks...........................

  • Page 5: Using The Auto Color Diagnosis Function

    1. Using the Auto Color Diagnosis Function Introduction Disclaimer To the maximum extent permitted by applicable laws, in no event will the manufacturer be liable for any damages whatsoever arising out of failures of this product, losses of documents or data, or the use or non-use of this product and operation manuals provided with it.

  • Page 6: About The Auto Color Diagnosis Function

    1. Using the Auto Color Diagnosis Function About the Auto Color Diagnosis Function This section explains the Auto Color Diagnosis function, which is one of the functions of the Auto Color Diagnosis Unit. This function uses the in-line sensor to scan the printed colors while a continuous print run is in progress, and suppresses color deviation without stopping the machine.
  • Page 7 About the Auto Color Diagnosis Function Paper attributes Requirements Paper size 210 mm (8.3inches) or more vertically × 279–700 mm (11–27.6inches) horizontally; or 279 mm (11inches) or more vertically × 210–700 mm (8.3– 27.6inches) horizontally (including custom and banner paper) Paper weight Paper weight "1"...

  • Page 8: Generating Paper Properties (When Using Fiery)

    1. Using the Auto Color Diagnosis Function Generating Paper Properties (When Using Fiery) To use the Auto Color Diagnosis function, print the color chart and generate paper properties for each paper type. When generated, this information is stored in the machine's data storage and used for adjusting colors when printing is performed.
  • Page 9 Generating Paper Properties (When Using Fiery) When the warning screen is displayed, ignore it and continue browsing the web page. Check the generation status of paper properties in the "ACD Property" screen. In the screen, you can view the information below. To check whether the Auto Color Diagnosis function is enabled, check the [ACD status] field.

  • Page 10: Generating Paper Properties

    1. Using the Auto Color Diagnosis Function Click [Settings] in the top right corner of the "ACD Property" screen. EDD651 Select the accuracy (High accuracy/Standard) of paper properties, and then click [OK]. The number of color charts to be printed is 5 for "Standard" and 9 for "High accuracy". Generating Paper Properties To generate paper properties, select the paper in the "ACD Property"...
  • Page 11 Generating Paper Properties (When Using Fiery) Select the [Generate ACD Data after calibration] check box in the measurement result screen, and then click [Apply & Close]. DWQ652 The setting of the [Generate ACD Data after calibration] check box is effective even when you perform calibration on paper that is not supported in the ACD function.
  • Page 12 1. Using the Auto Color Diagnosis Function M0B2WC0024 In the "ACD Property" screen, select the paper loaded in Step 1. Click the [Generate ACD Property] button. • A confirmation screen prompting you to perform calibration may be displayed. To proceed to generate paper properties, click the [Generate ACD Property] button again.

  • Page 13: Printing With Auto Color Diagnosis

    Generating Paper Properties (When Using Fiery) Printing with Auto Color Diagnosis To print with Auto Color Diagnosis, it is necessary to use paper for which the paper properties have been generated. For this purpose, specify the paper catalog in the Job Properties window of Fiery Command WorkStation.
  • Page 14 1. Using the Auto Color Diagnosis Function • The color mode of the job is set to 4-color (CMYK) • Only one paper type is specified in the job • If the number of colors used on each page differs, diagnostic marks are printed on the page that has three or more color separations used for 4-color-printing.
  • Page 15 Generating Paper Properties (When Using Fiery) DWQ604 Diagnostic mark attributes Description Distance from the right or left When paper width is 323 mm or more: (paper width-323) / 2 + 2 paper edge When paper width is 323 mm or less: 2 mm Distance between the upper 11.4 mm (0.5 inches) and lower diagnostic marks...

  • Page 16: Generating Paper Properties (When Using Totalflow)

    1. Using the Auto Color Diagnosis Function Generating Paper Properties (When Using TotalFlow) To use the Auto Color Diagnosis function, print the color chart and generate paper properties for each paper type. When generated, this information is stored in the machine's data storage and used for adjusting colors when printing is performed.
  • Page 17 Generating Paper Properties (When Using TotalFlow) Click [Paper] to confirm the generation status and other information about paper properties in the "Paper" screen. DWQ751 In the screen, you can view the information below. To check whether the paper properties are generated and the Auto Color Diagnosis function is enabled, scroll down the right side column and check the [ACD] field.

  • Page 18: Generating Paper Properties

    1. Using the Auto Color Diagnosis Function Display item Description Disabled Paper properties are not generated. Enabled Paper properties are generated. Because the Auto Color Diagnosis function does not support paper types, paper properties cannot be generated. Accuracy The accuracy of paper properties Date The last registration date and time of paper properties •...
  • Page 19 Generating Paper Properties (When Using TotalFlow) Load sheets of paper in the tray, and select the tray from the media catalog using the machine's control panel. When generating paper properties, depending on the precision of the selected paper properties, the machine prints color charts on 5 sheets of paper (for "Standard") or on 9 sheets (for "High accuracy").

  • Page 20: Troubleshooting

    1. Using the Auto Color Diagnosis Function Troubleshooting Paper properties failed to be generated Because of a paper jam or stains on the paper, paper properties may not be generated. Remove the jammed paper and resolve the cause of jammed paper and staining, and then generate paper properties again.
  • Page 21 Troubleshooting Press [Auto Color Diagnosis Unit Setting]. Check that all the setting items are set to [Active]. Next, generate paper properties again. A message prompting you to clean is displayed on the main unit's control panel Clean the Line Sensor. See "Cleaning the Line Sensor", Maintenance and Management. The tone or hue of the printed image changes erroneously after Auto Color Diagnosis Clean the Line Sensor.
  • Page 22 MEMO M0B2-1036E...
  • Page 23 © 2018, 2019, 2020...
  • Page 24 M0B2-1036E...
