IMPORTANT! KEEP THIS
MANUAL FOR FUTURE REFERENCE!

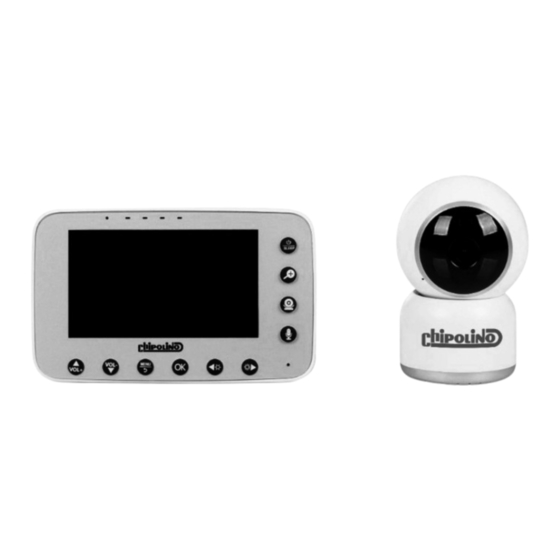

INSTRUCTION MANUAL FOR
DIGITAL BABY MONITOR
ATLAS
This
product is manufactured in accordance with
the requirements of Directives of the European Parliament and Council
2014/53/EU relating to the making available on the market of radio equipment,
2014/30/EU relating to electromagnetic compatibility and 2001/95/EU on
General Product Safety as well as in accordance with National Legislation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chipolino ATLAS
Summary of Contents for Chipolino ATLAS
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR DIGITAL BABY MONITOR ATLAS This product is manufactured in accordance with the requirements of Directives of the European Parliament and Council 2014/53/EU relating to the making available on the market of radio equipment, 2014/30/EU relating to electromagnetic compatibility and 2001/95/EU on General Product Safety as well as in accordance with National Legislation.
- Page 2 TO GUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL! ATTENTION! WARNINGS! THIS PRODUCT IS INTENDED TO AID YOU AND CANNOT SUBSTITUE A REAL AND RESPONSIBLE ADULT SUPERVISION! USE THE PRODUCT ONLY FOR ITS PURPOSE! ...
-
Page 3: Product Features
WARNINGS FOR USING LITHIUM–POLYMER BATTERIES ONLY an adult can plug the adaptors! Do not bend, drill (especially with metal objects) or damage the battery in any other way. Charge the battery only with the adaptors provided by the producer! Do not allow short circuit! Keep the product in room temperature! Do not subject to direct sunlight! Never leave a charging battery without supervision! REMARK: The battery compartment is located on the back of the parent unit. ADVICE: Charge the battery fully before use to save it and prolong its life. IMPORTANT! To replace the battery contact the retailer or an authorized service! CAUTION! When you stop using the product, do not dispose of it with normal household waste but hand it over in an official waste collecting point. The waste formed from damaged electrical and video devices, batteries, adaptors, must be... - Page 4 Baby unit: CAMERA (transmitter), 1 pc Sensor of image, type CMOS Image 1080 pxl Minimum light (infrared night vision) 15 lx (IR on) Night vision, distance 3 up to 5 m Rotation angle of lens 75° diagonally Rotation angle left/right (panoramic angle) 350° Rotation angle up/down (camera reclining) 45° Power consumption 350 mA Power supppy 5V/1000 mA DC FUNCTIONS Two way communication Temperature information Musical player with 4 lullabies Setting for feeding time 4 cameras connection availability...
-
Page 5: Main Parts Diagram
MAIN PARTS DIAGRAM Set includes: Baby unit: Adaptors – 2 pcs Silicone holder CAMERA (transmitter) – 1 pc 5V –– 1 A for camera – 1 pc Parent unit: USB cable – 2pcs. х 1,5 m Instruction manual MONITOR (receiver) – 1 pc –... - Page 6 E. Button to set the brightness up/ Button for O. Antenna setting the pointer right P. Speaker F. Button to set the brightness down/ Button for Q. Monitor holder setting the pointer left R. USB jack for adaptor connection (DC5V) G. Confirmation button S. Reset key H. Button for zooming the image I. Button for camera choice J. Button for two way communication CAMERA (transmitter) A. Infrared LED light F. Pairing button G. Speaker B. Camera lens H. USB jack for connection of adaptor (DC5V) C. Temperature sensor I. Power supply indicator D. Light sensor J.
-
Page 7: Main Functions
MAIN FUNCTIONS Place the baby unit (camera) at suitable place (table for example) and point the lens to the area you want to monitor. Set the baby unit until you reach the needed image at the monitor. ATTENTION! Do not place the baby unit in baby’s access area! If there are some disturbances in image or sound, move the devices at different places and make sure they are not too close to another electrical device. PAIRING THE UNITS Units are paired in advance by the producer. You must not pair them again unless you have reset the camera. If you need to connect another camera or re-pair the devices, follow the steps below: 1. Press button MENU , choose camera icon “CAMERA” and press button „OK“; 2. - Page 8 1. Icon Camera: By choosing this icon you can pair the devices, add or remove available cameras: 2. Icon View: By choosing this icon you can select image of which camera to see on screen: Automatic scan Press the button for pointer moving left and right (E и F), to select a camera and confirm by pressing button „OK“. 3. Icon for lullabies: By choosing this icon you can select 4 lullabies. You can select playing only one lullaby or all together or stop them by pressing “Stop” Press buttons C or D to control the sound volume. 4. Icon Feeding Time: Producer has set 2, 3, 4 and 5 hours that can be selected via buttons for pointer moving upwards/downwards/ left and right and confirm by pressing of button „OK“...
- Page 9 By pressing “Setting“ you can set required by you feeding time: 5. VOX When VOX is activated, LCD display turns one only when the baby unit detect any sound. If there is no sound detection, video display is turned off to save power. After turning on or off the VOX function and confirmation with button „OK“ a screen for sensitivity of the microphone adjustment appears - high (High), medial (Medial) and low (Low). With buttons for pointer moving select the required sensitivity and confirm by pressing “OK”.
- Page 10 • Icon Language setting With buttons for pointer moving select the required language and confirm by pressing “OK”. For this model of baby monitor you can choose one of the following languages: Bulgarian, English or Spanish. • Icon Date and Time With buttons for pointer moving select the required date and confirm by pressing “OK”. After that do the same to select the hour and confirm with button “OK”. • Icon for Temperature With buttons for pointer moving select the temperature measure in °C or °F. Select suitable temperature diapason in baby’s room. When temperature comes out of this diapason, alarm turns on.
- Page 11 • Icon for Power saving mode By choosing „ON“, the brightness of the screen is getting lowest. Battery power icon in upper right angle of screen is orange. By choosing “OFF” power saving mode turns off and brightness of screen returns in normal level. The battery power icon is in white color. • Icon Frequency (fps) With buttons for pointer moving select the required frequency. • Icon Back to default With this icon you can reset the device and to return to default settings.
-
Page 12: Care And Maintenance
PANORAMIC ANGLE and CAMERA RECLINE To select panoramic angle (350°), press the buttons to moving left and right (F and E). To select recline forwards and backwards (45°), press the buttons for moving upwards and downwards (С and D). SILICONE HOLDER OF THE CAMERA You can use the silicone holder to attach the camera to baby’s bed/cot, on table or another suitable place. - Page 13 1 Goliamokonarsko shosse, Plovdiv, BULGARIA www.chipolino.com...
