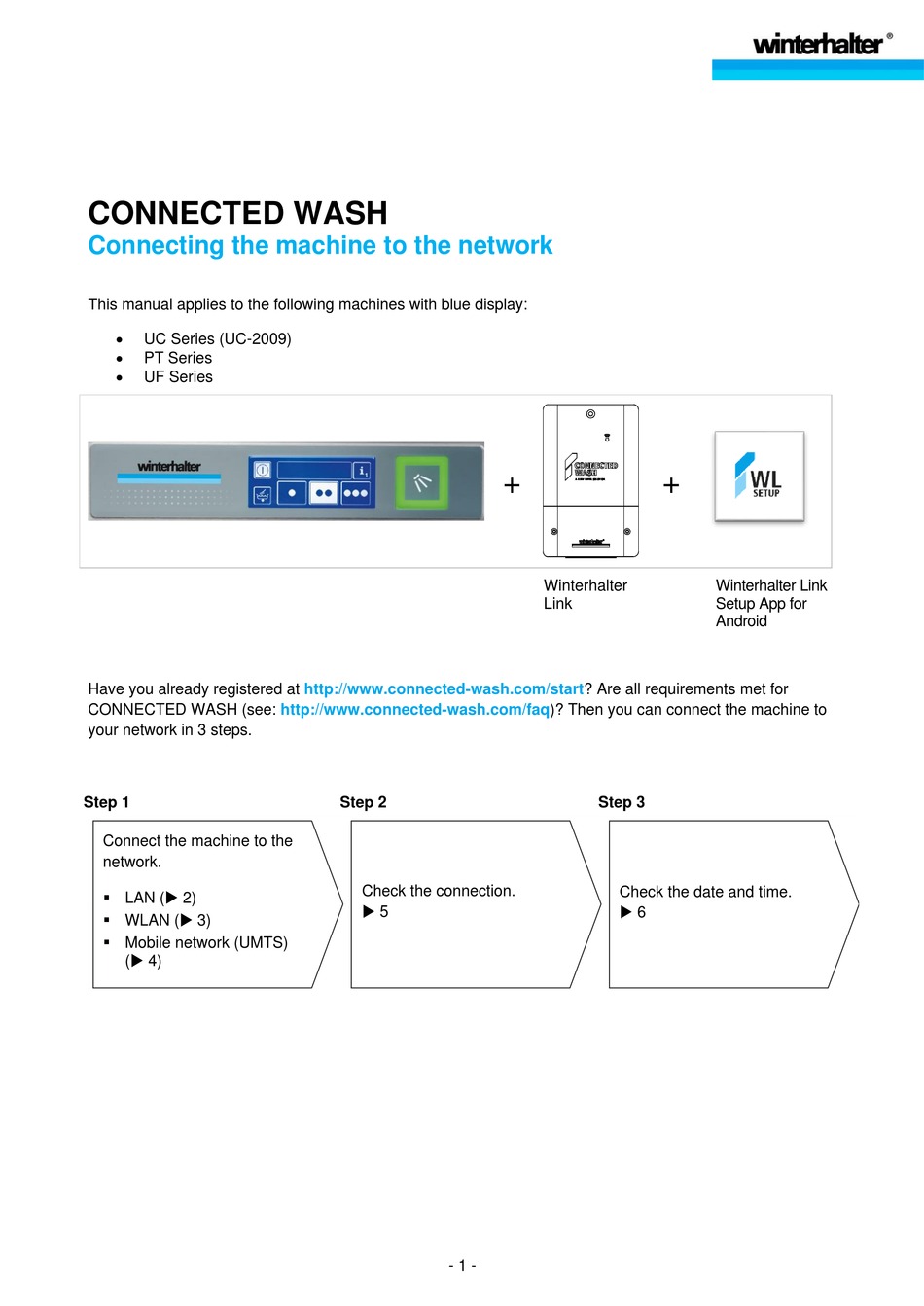

CONNECTED WASH
Connecting the machine to the network
This manual applies to the following machines with blue display:
•
UC Series (UC-2009)
•
PT Series
•
UF Series
Have you already registered at http://www.connected-wash.com/start? Are all requirements met for
CONNECTED WASH (see: http://www.connected-wash.com/faq)? Then you can connect the machine to
your network in 3 steps.
Step 1
Connect the machine to the
network.
▪ LAN ( 2)
▪ WLAN ( 3)
▪ Mobile network (UMTS)
( 4)
+
Step 2
Check the connection.
5
- 1 -
+
Winterhalter
Winterhalter Link
Link
Setup App for
Android
Step 3
Check the date and time.
6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Winterhalter UC Series
Summary of Contents for Winterhalter UC Series
- Page 1 CONNECTED WASH Connecting the machine to the network This manual applies to the following machines with blue display: • UC Series (UC-2009) • PT Series • UF Series Winterhalter Winterhalter Link Link Setup App for Android Have you already registered at http://www.connected-wash.com/start? Are all requirements met for CONNECTED WASH (see: http://www.connected-wash.com/faq)? Then you can connect the machine to...
- Page 2 Bluetooth signals for 30 minutes and is visible as a Bluetooth device. Establish a connection to the Winterhalter server in this time. To do this, use the Winterhalter Link SETUP app. As soon as the connection is established to the Winterhalter server, Winterhalter Link will no longer be visible as a Bluetooth device for security reasons.
- Page 3 ▪ An Internet-enabled terminal device (e.g. tablet or smartphone) with Android operating system is present. ▪ The Winterhalter Link Setup app (WL Setup app) is installed on your tablet or smartphone. The app is available in the Google Play Store.
- Page 4 Signal strength INFO If several Bluetooth devices are displayed, select the Winterhalter Link with the highest signal strength. ➢ Tap the arrow. The available networks are displayed. If no networks are displayed: ➢ Tap ➢ Tap the arrow. INFO Repeat several times if required.
- Page 5 Password The connection is established. Winterhalter Link is con- Winterhalter Link is con- nected to the selected nected to the Win- network. terhalter server. The LED (1) glows steady green. Configuration is finished. ➢ Continue with chapter 5.
- Page 6 ▪ An Internet-enabled terminal device (e.g. tablet or smartphone) with Android operating system is present. ▪ The Winterhalter Link Setup app (WL Setup app) is installed on your tablet or smartphone. The app is available in the Google Play Store.
- Page 7 Signal strength INFO If several Bluetooth devices are displayed, select the Win- terhalter Link with the highest signal strength. ➢ Enter your mobile network provider’s APN dial-up data. Example for T-Mobile: APN: internet.telekom SIM card pin Dial-up: *99# Username: t-mobile Password: tm You can find other providers’...
- Page 8 The connection is established. Winterhalter Link is con- Winterhalter Link is con- nected to the internet. nected to the Winterhalter server. The LED (1) glows steady green. Configuration is finished. ➢ Continue with chapter 5. - 8 -...
-
Page 9: Checking The Connection
5. Checking the connection In this step, check if there is a connection between the machine and network router / Winterhalter Link. IMPORTANT The machine must be operational for this step. ➢ Switch off the machine and wait 5 seconds before switching on again. -
Page 10: Checking The Date And Time
6. Checking the date and time To make sure that the data transfer delivers correct results, the current date and time must be set correctly. ➢ Check settings. If the date and/or time are not set correctly: ➢ Adjust settings. ➢...
