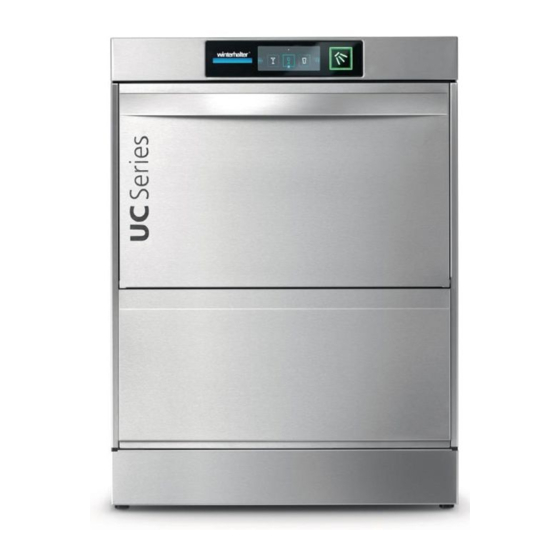

Winterhalter UC V02 Series Quick Start Manual
Connecting the machine to the network
Hide thumbs
Also See for UC V02 Series:
Advertisement
Quick Links

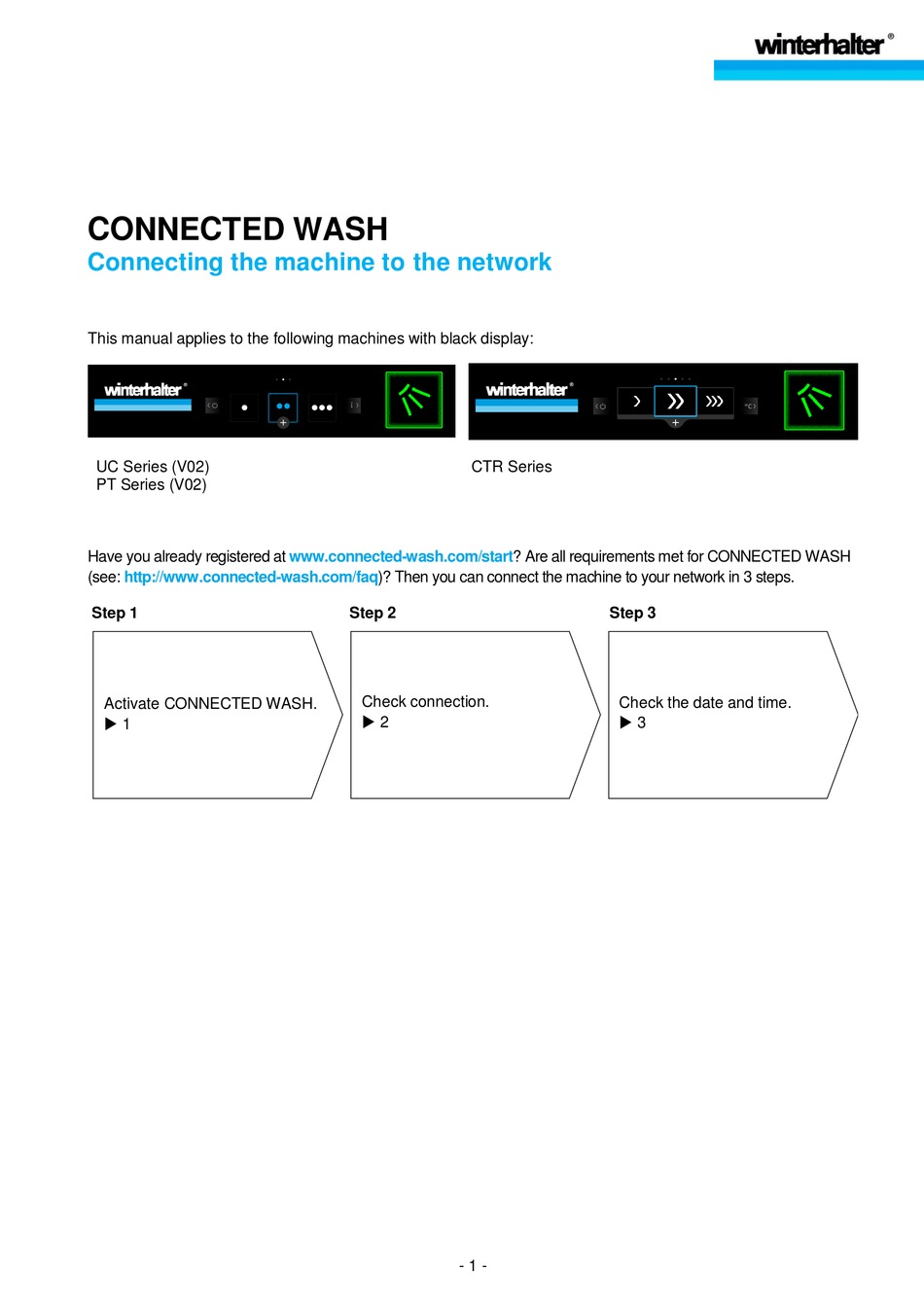

CONNECTED WASH
Connecting the machine to the network
This manual applies to the following machines with black display:
UC Series (V02)
PT Series (V02)
Have you already registered at www.connected-wash.com/start? Are all requirements met for CONNECTED WASH
(see: http://www.connected-wash.com/faq)? Then you can connect the machine to your network in 3 steps.
Step 1
Activate CONNECTED WASH.
1
CTR Series
Step 2
Check connection.
2
- 1 -
Step 3
Check the date and time.
3
Advertisement
Related Manuals for Winterhalter UC V02 Series
Summary of Contents for Winterhalter UC V02 Series
- Page 1 CONNECTED WASH Connecting the machine to the network This manual applies to the following machines with black display: UC Series (V02) CTR Series PT Series (V02) Have you already registered at www.connected-wash.com/start? Are all requirements met for CONNECTED WASH (see: http://www.connected-wash.com/faq)? Then you can connect the machine to your network in 3 steps. Step 1 Step 2 Step 3...
- Page 2 1. Activating CONNECTED WASH ➢ Select LAN or WLAN. If you use a MAC filter: Share the warewasher’s MAC address. You can find the MAC address under INFO Register Info. 1.1 LAN version ➢ Ensure that the LAN cable is connected. ➢...
- Page 3 2. Checking connection In this step, check if there is a connection between the machine and network router. ➢ Access PIN Menu: If this pictogram in Image 8 is shown, wait approx. 30 seconds. If no other pictograms are shown after this time, please follow the instructions in our FAQ: http://www.con- nected-wash.com/faq.
- Page 4 3. Checking the date and time To make sure that the data transfer delivers correct results, the current date and time must be set correctly. ➢ Check settings. If the date and/or time are not set correctly: ➢ Adjust settings. ➢...
