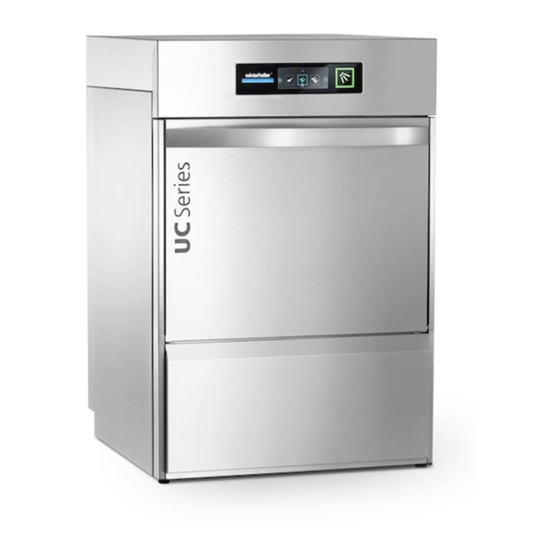

Winterhalter UC-S Operating Instructions Manual
Uc series undercounter dishwashers
Hide thumbs
Also See for UC-S:
- Repair manual (48 pages) ,
- Installation instructions manual (9 pages) ,
- Translation of the original operating instructions (51 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winterhalter UC-S
Summary of Contents for Winterhalter UC-S
- Page 1 Winterhalter Undercounter Dishwashers UC Series Operating instructions...
- Page 2 Short instructions IMPORTANT: Read the detailed operating instructions and safety notes before first use. Switching on the machine Screen 02 Screen 01 Touch the screen with your Press and hold the on button The welcome message disappears finger. (1) for approximately 2 seconds automatically after a short time.
-
Page 3: Table Of Contents
Table of contents Operating instructions for Winterhalter UC Series Table of contents Table of contents--------------------------------------------------------------------------------------------------------- 1 About these instructions ---------------------------------------------------------------------------------------------- 3 Explanation of symbols used-------------------------------------------------------------------------------------------- 3 Product description ----------------------------------------------------------------------------------------------------- 3 Safety notes---------------------------------------------------------------------------------------------------------------- 5 Intended use ---------------------------------------------------------------------------------------------------------------- 5 Non-intended use ---------------------------------------------------------------------------------------------------------- 5 Handling chemicals (detergent, rinse aid, descaler, etc.) -------------------------------------------------------- 5... - Page 4 10.2.1 Cleaning the dirt trap ---------------------------------------------------------------------------------------------------- 21 10.3 As necessary -------------------------------------------------------------------------------------------------------------- 21 10.3.1 Descaling------------------------------------------------------------------------------------------------------------------- 21 10.4 Maintenance by customer service------------------------------------------------------------------------------------ 21 10.5 Changing the detergent product -------------------------------------------------------------------------------------- 22 Info level 1----------------------------------------------------------------------------------------------------------------- 23 11.1 Buttons for area (1) ------------------------------------------------------------------------------------------------------ 23 11.1.1 Using additional programmes ----------------------------------------------------------------------------------------- 24 11.1.2 Additional programmes for special equipment “Cool”...
-
Page 5: About These Instructions
The UC series dishwashing machines are designed to be used to wash various dishes. The service techni- cian authorised by Winterhalter does not program the machine's control unit for use of the dishwashing ma- chine as a “special machine” for a specific application until it is installed. Alternatively, the dishwashing ma- chine is supplied ready-programmed for a specific application, but can be reprogrammed at any time. - Page 6 Requirement: Machine connection to cold water. ReTemp (only for glass washing machines) You use this process to wash at reduced tank and boiler temperatures. Winterhalter detergent and rinse aid are specially designed for this process and are required for washing at these temperatures.
-
Page 7: Safety Notes
− Only use a suitable detergent to wash aluminium items such as pots, containers or tins, in order to pre- vent black discolouration. − Winterhalter Gastronom GmbH will not accept liability for any damage caused by failure to use the dish- washing machine in accordance with the intended use. -
Page 8: Daily Cleaning And Care
Winterhalter Gastronom stainless steel cleaner and stainless steel polish. Before working with the machine Have the machine installed by your service technician authorised by Winterhalter or dealer. You will find further information in chapter 18. Follow chapter 13 if the installation location is not free of frost. -
Page 9: Rinse Aid And Detergent
The rinse aid dosing device is integrated into the machine. The dosing quantity is set by the service technician authorised by Winterhalter when the machine is installed. INFO: The rinse aid dosing device is not part of the scope of delivery for all machines. -
Page 10: Dosing The Liquid Detergent
Rinse aid and detergent 6.3.2 Dosing the liquid detergent The dosing quantity is set by the service technician authorised by Winterhalter when the machine is installed. A display on the screen indicates when integrated storage tanks are empty ( 14.1). Exter- nal storage tanks have to be fitted with a suction tube with level control if a display on the screen is required to show when the filling level drops. -
Page 11: Integrated Water Softener (Optional)
7.1 Entering the water hardness When the machine is installed, the service technician authorised by Winterhalter measures the water hard- ness and enters the respective value. -
Page 12: Controls
The screen displays the touch-sensitive buttons. Events as e. g. the end of program of operation malfunc- tions are indicated by a sequence of tones. INFO: The service technician authorised by Winterhalter can switch off or activate the tone signal and the tone sequence. -
Page 13: Switching On The Screen
INFO: The screen saver does not appear until the machine is filled. There is no screen saver in the PIN menu ( 15). The times for the screen saver can be changed by the service technician authorised by Winterhalter ( 17.1). -
Page 14: Start Button
Controls 8.2 Start button The start button lights up as soon as you switch on the machine. The different colours indicate the following: Whilst the machine is being prepared for operation: Change from red to green: Machine filling, heating up and ready for operation. Whilst the washing programme is in progress: Change from blue to green, finally flashes green: Washing programme in progress and is complete. -
Page 15: Operation
Operation Operation 9.1 Switching on 9.1.1 Before switching on the machine Open the on-site water stop cock. Switch on the on-site mains disconnector. For your own safety, test the on-site residual-current circuit breaker (RCCB) by pressing the test button. Open the machine door and check whether the wash fields (top and bottom) and the filters (strainer, filter cylinder) are installed. -
Page 16: Washing
If you are working according to HACCP directives, the service technician authorised by Winterhalter can programme the machine so the operating personnel cannot start a washing programme until the rated tem- peratures have also been reached. -
Page 17: Loading Dishes
Operation Display for bistro dishwashing machines Arranged from left to right: Programme 1 for glasses Programme 2 for glasses and cups Programme 3 for plates Display for cutlery rinsing machines 9.2.2 Loading dishes Adhere to the following guidelines when loading the washing rack with dishes and cutlery: −... -
Page 18: Starting The Washing Programme
Operation 9.2.3 Starting the washing programme Washing programme (standard programme Start button Switch to info level 1 (see chapter 11) Info field for displaying malfunctions in the form of pictograms (see chapter 14.1) Off button (does not drain the tank) Self-cleaning programme (see chapter 10.1.2) Select the washing programme which best suits the level of soiling and the type of dishes. -
Page 19: Completion Of The Programme
Operation 9.2.4 Completion of the programme The start button flashes green as soon as the washing programme has been completed. INFO: The green flashing start button indicates that the washing programme has been completed and that the door has not yet been opened. If you find the flash- ing objectionable, an authorised service technician can set the machine control unit so that the start button no longer flashes green. -
Page 20: Maintenance And Care
Maintenance and care 10 Maintenance and care Do not spray off the machine and the immediate vicinity (walls, floors) with a water hose, steam cleaner or pressure washer. In order to prevent water from entering into the machine uncontrolledly, make sure that the ma- chine's plinth is not flooded when cleaning the floor. -
Page 21: Cleaning The Inside Of The Machine
Maintenance and care 10.1.3 Cleaning the inside of the machine When performing daily cleaning, make sure that no foreign objects which may rust have been left in the interior of the machine. These objects can even cause “stainless steel” material to rust. - Page 22 Maintenance and care Clean the filter cylinder Clean the strainer Clean both rotating wash fields. If necessary, open the cleaning opening in the rotating wash field with a coin and rinse the rotating wash field with water. Reinsert the bottom section of the Reinsert the strainer Reinsert the filter cylinder filter...
-
Page 23: Cleaning The Outside Of The Machine
10.4 Maintenance by customer service We recommend having the machine serviced at least twice a year by a service technician authorised by Winterhalter. This service should also include having components which are subject to wear or ageing being checked and replaced as necessary. -
Page 24: Changing The Detergent Product
Have the necessary work carried out by the service technician authorised by Winterhalter so that you continue to achieve good washing results. Winterhalter Gastronom GmbH will not accept any liability and all warranty claims will be rendered null and void in case of failure to comply with this instruction. -
Page 25: Info Level 1
Info level 1 11 Info level 1 This is how you access info level 1 If the screen is darkened: Touch the screen. Press the button “i ”. Screen 04 appears. Screen 04 Buttons for calling up information, venting the dosing devices and selecting additional programmes Further buttons appear when you press the scroll buttons (11) Back button (to the standard programmes) Start button... -
Page 26: Using Additional Programmes
Quiet programme for very quiet washing in the bar area Short programme Special programme The special programme can be programmed by the Winterhalter special programme freely in accordance with your requirements (time, temperature, mechanics, chemi- cals) 11.1.1 Using additional programmes Press the button for the desired additional programme. -
Page 27: Info Level
Info level 2 12 Info level 2 This is how you access info level 2 If the screen is darkened: Touch the screen. Press the button “i ” and then the button “i ” Screen 33 appears. Screen 33 Area for displaying events and malfunctions Further buttons and malfunctions appear when you press the scroll buttons (11) Back button (to info level 1) Start button... -
Page 28: Taking The Machine Out Of Service For A Longer Period Of Time
Switch off the on-site mains disconnector. If the machine is installed in a room which is not frost protected: Have the machine made frost-proof by a service technician authorised by Winterhalter. Putting the machine back into service Open the on-site water stop cock. -
Page 29: Malfunctions
14 Malfunctions In this section you learn how to act in case of malfunctions. The table lists possible causes and instructions for remedial action. Contact a service technician authorised by Winterhalter if you are unable to rectify the fault yourself. -
Page 30: Calling Up The Error Code
Display in area (1): − Error code − Error remedy Contact a service technician authorised by Winterhalter if you are unable to rectify the fault yourself. Screen 33 is only displayed if the machine is connected to an energy optimisation system. -
Page 31: Poor Cleaning Results
Malfunctions 14.3 Poor cleaning results Possible cause Remedy Set the dosing quantity according to the information provided by the manufacturer Too little or no detergent dosing Check dosing lines (kinks, breaks, etc.) Replace the container Dishes are not cleaned Check the dosing device Dishes not loaded correctly Do not stack dishes on top of one another The wash field jets are blocked... -
Page 32: Pin Menu
PIN menu 15 PIN menu In the PIN menu, you can: − make general settings (date, time, contrast, language) 15.2 − program the automatic activation of the machine 15.3 − display operating data 15.4 − display data (hygiene logbook) 15.5 −... -
Page 33: Pin Menu
PIN menu 15.1 PIN menu Date, time, contrast, language 15.2 Automatic activation 15.3 Operating data 15.4 Screen 07 Hygiene logbook 15.5 After scrolling: Descaling / basic cleaning 15.6 Amount of detergent / rinse aid 15.7 Program connection terminals 15.8 Reset the countdown water meter 15.9 15.2 General settings 15.2.1... -
Page 34: Setting The Contrast
PIN menu 15.2.2 Setting the contrast Here, you can: − change the contrast to adapt the screen display to the lighting conditions in your kitchen. How to access the settings: Enter the PIN menu PIN 1575 Press the button Press the button Use the button to change the setting until you can see all the data clearly on the screen. -
Page 35: Automatic Activation
PIN menu 15.3 Automatic activation Here, you can: − enter when the machine is to start filling itself and heating up automatically. − enter a different time for each day of the week (weekly programme). − enter a time for a certain date which is different from the weekly programme. This date takes precedence over the weekly programme. -
Page 36: Operating Data
Together with a service technician authorised by Winterhalter, you can define which data is to be stored. On request, you can have deviations from the rated values displayed on the screen so that you can respond to malfunctions in good time. -
Page 37: Data Transfer To Pc (Option)
Using the descaling programme you can descale the inside of the dishwashing machine. The water-carrying pipes and the boiler can only be descaled by a service technician authorised by Winterhalter. For descaling you require an acid-based descaler which is suitable for commercial dishwashing machines. - Page 38 PIN menu How to start the descaling programme: If detergent is dosed using a dosing device which is installed outside the machine: Stop the dosing of detergents (e.g. pull out the suction tube or switch off the dosing device) in order to prevent the active chlorinated detergent coming into contact with descaler and producing chlorine gas.
-
Page 39: Basic Cleaning Programme
PIN menu 15.6.2 Basic cleaning programme New dishes or new glasses usually have a coating of soiling which can be removed using the basic cleaning programme. The programme can also be used the dishes are coated with starchy deposits for instance. How to start the basic cleaning programme: Enter the PIN menu PIN 1575... -
Page 40: Changing The Amount Of Detergent / Rinse Aid
PIN menu 15.7 Changing the amount of detergent / rinse aid When a new detergent or a new rinse aid is used, it may be necessary to change the dosing amount. Please observe the dosing recommendations on the packing. The dosing amount can be adjusted separately for every standard programme. IMPORTANT! In the next menu, only the dosing amount of the installed dosing devices is changed. -
Page 41: Programming Connection Terminals
PIN menu Example 2: The rinse aid dosing amount is to be increased for standard programme 2 Press button (1). The background of buttons (1) and (2) changes to white. The current detergent amount (3.0 ml/l) and the internal name (P068) is displayed in field (3). Press button (4). -
Page 42: Resetting The Countdown Water Meter
PIN menu 15.9 Resetting the countdown water meter INFO: not for machines with integrated water softener The countdown water counter has to be reset if on machines with a partial demineralisation unit or full demineralisation unit the symbol opposite flashes on the screen. How to reset the countdown water meter: Enter the PIN menu PIN 1575... -
Page 43: Disposal
Contact your dealer so that as many of the materials contained in the machine as possible can be recycled. 17 Technical data 17.1 Technical data Machine type Width [mm] Depth [mm] Height* [mm] UC-S 602.5 UC-M 602.5 UC-L 602.5 UC-XL 641.5... -
Page 44: Installation
− If the water hardness is more than 3°d total hardness (GH), we recommend connecting a water treatment unit upstream to prevent build-up of limescale in the machine and in order to achieve optimum cleaning and drying results. The service technician authorised by Winterhalter will be happy to offer advice. 20 Electrical connection Notes for the electrician: DANGER! Risk of fatal injury due to live components. -
Page 45: Mains Connection Cable
Section and number of wires appropriate for voltage, fusing and overall connection value Connection of the mains connection cable in the machine Exemplary images for a UC-L Remove the front cladding UC-S: additionally remove the Remove the bulkhead (1) towards the electric installation compartment right side cladding Strain relief... -
Page 46: Position Of The Dosing Points (Detergent, Rinse Aid)
21 Position of the dosing points (detergent, rinse aid) DANGER! Risk of fatal injury due to live components. Have the dosing devices installed and commissioned by a service technician authorised by Winterhalter. Danger Disconnect the machine from the mains and check that machine is de-energised. - Page 48 Winterhalter Gastronom GmbH Commercial Dishwashing Systems Tettnanger Strasse 72 88074 Meckenbeuren · Germany Telephone +49 (0) 75 42 4 02-0 Telefax +49 (0) 75 42 4 02-1 87 www.winterhalter.biz info@winterhalter.biz...
