  • Page 1 AZZA KT33-BV Mainboard Manual Cover Click Here Table Of Contents Click Here Introduction Click Here Hardware Installation Click Here BIOS Management Click Here...
  • Page 2 KT33 KT33- - - - BV Mainboard KT33 KT33 BV Mainboard BV Mainboard BV Mainboard Manual Manual Manual Manual SOCKET A DDR ATX Mainboard Version 1.x UM-KT33-BV-E1 Rev 1.0V Creation Date: 6 March 2002 AZZA KT33-BV Mainboard Page 1...
  • Page 3 If any of these items are damaged or missing, please contact your dealer or sales representative for assistance. Technical Support If you require additional information or assistance during installation please contact your dealer. Your dealer will be able to provide the latest information. Page 2 AZZA KT33-BV Mainboard...

  • Page 4: Table Of Contents

    Chapter 1:- Introduction Page 5 1.1. Mainboard and PC99 External Connector Layout ........5 1.2. Overview ....................6 1.2.1. The KT33-BV Mainboard ................. 6 1.2.2. Mainboard Dimensions ................6 1.2.3. Environmental Limitations ............... 6 1.3. Features and Specifications ............... 6 1.4.
  • Page 5 PC Health Status ..................42 3.10. Frequency/Voltage Control ..............43 3.11. Load Optimized Defaults ................ 44 3.12. Set Supervisor Password ................ 45 3.13. Set User Password .................. 45 3.14. Save & Exit Setup/Exit Without Saving ..........47 Page 4 AZZA KT33-BV Mainboard...

  • Page 6: Chapter 1:- Introduction

    Introduction Chapter 1 Chapter 1 Introduction Introduction Chapter 1 Introduction 1.1. Mainboard And PC99 ATX External Connector Layout AZZA KT33-BV Mainboard Page 5...

  • Page 7: Overview

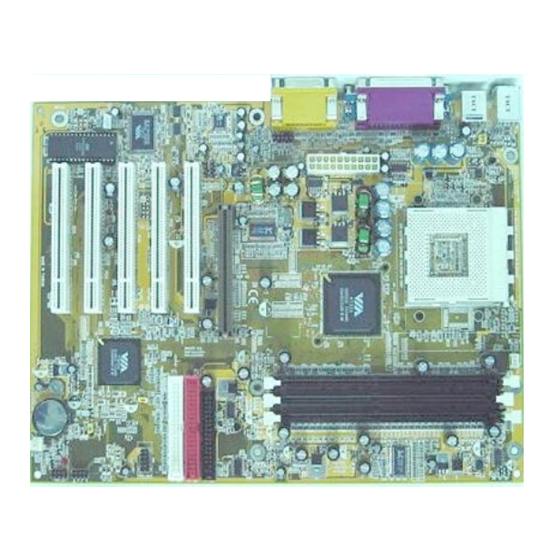

    1.2.1. The KT33-BV Mainboard The KT33-BV mainboards are AMD® Socket A platforms which can support Athlon™XP, Athlon™ or Duron™ CPU’s. They come with three onboard DDR DIMM slots that are able to support a maximum memory of 3GB. They also come with 5 PCI slots and 1 AGP (Accelerated Graphics Port) slot.
  • Page 8 8-bit, 16-bit, 32-bit, 64-bit • Address Path: 32-bit Front Side Bus Frequency (FSB) The KT33-BV mainboards are able to support a Front Side Bus Frequency (FSB) of 200MHz or 266MHz. BIOS • Award BIOS, Windows 95/98 Plug and Play (PnP) compatible.
  • Page 9 ATA/100 ATA/133 hard drives. • PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to 16.6MB/sec.). • Bus mastering reduces CPU utilization during disk transfer. • Supports ATAPI CD-ROM, LS-120 and ZIP. Page 8 AZZA KT33-BV Mainboard...

  • Page 10: System Health Monitor Functions

    720mA. ACPI Ready The mainboard is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that support OS Direct Power Management (OSPM) for round the clock PC operation. AZZA KT33-BV Mainboard Page 9...
  • Page 11 FAN has been installed correctly. 2. If the cooling FAN stops functioning the heat of the CPU will increase and the system will auto power-off to protect the CPU against overheating. Page 10 AZZA KT33-BV Mainboard...

  • Page 12: Chapter 2:- Hardware Installation

    External Connectors PS/2 Keyboard Connector PS/2 KB PS/2 Mouse Connector PS/2 MS Serial Port 1 COM1 Serial Port 2 COM2 Parallel Port Universal Serial Port 1 USB1 Universal Serial Port 2 USB2 CN18 Game/Audio Port Audio/Game AZZA KT33-BV Mainboard Page 11...

  • Page 13: Installation Steps

    Before you start installing your mainboard we strongly recommend that you use a grounded anti-static mat. We further recommend that you attach an anti-static wristband, which is grounded at the same location as the mat, to your wrist. Page 12 AZZA KT33-BV Mainboard...

  • Page 14: Expansion Slots, Jumpers And Internal Connectors

    Hardware Installation 2.3. Expansion Slots, Jumpers and Internal Connectors AZZA KT33-BV Mainboard Page 13...

  • Page 15: Cpu, Memory And Expansion Slots

    CPU. 2.4.2. Memory Modules The KT33-BV mainboards have three 184-pin DDR DIMM slots and are able to support a maximum of 3GB of DDR200/266/333 memory. The DDR DIMM slots are located on the right hand side of the board. To install the DIMM’s into these slots, make sure the white lever at each side of the slot has been pulled down to an angle of approximately 45°.

  • Page 16: Pci Slots

    This problem can also occur if an Advanced Graphic Port (AGP) video adapter is used. 2.4.3. PCI Slots PCI Slots The KT33-BV mainboards each come with five PCI slots. They are located on the left hand side of the board. Both PCI and PCI expansion cards may require IRQ’s.

  • Page 17: Agp (Accelerated Graphics Port) Slot

    66 MHz and transfers data at a rate up to 1066 MB/s. This allows 3D appli- 66 pins cations to run more smoothly. The KT33-BV mainboards each come with one AGP slot. These slots are able to support 2x and 4x AGP cards. 2.5. Internal Connectors 2.5.1.

  • Page 18: Cpu Fan And Chassis Fan Connectors

    Make sure the pins are correctly aligned. Find the correct orientation and push the plug down firmly. ATX Power Supply Connector +5VDC +12V 5VSB +5VDC -5VDC PWR_OK +5VDC PS_ON# +5VDC +3.3VDC -12VDC +3.3VDC +3.3VDC Pin 1 Pin 11 AZZA KT33-BV Mainboard Page 17...

  • Page 19: Wol (Wake On Lan) Connector

    The internal USB connectors allow you to add on an optional kit to ex- pand the total number of USB ports available. The KT33-BV mainboards has two internal USB connectors (CN30 and CN31). This enables you to use an extra two USB devices.

  • Page 20: Front Audio Connector

    Pin 1 Pin 2 Power On/OFF and Suspend Switch +5V DC Pull Up Ground Connector Standby LED Connector Standby DC Pull Ground HDD LED Connector +5V DC Pull Up Ground Reset Button Connector Reset Control Ground AZZA KT33-BV Mainboard Page 19...

  • Page 21: Pw: Power On/Off And External Suspend Switch Connector

    +5V and the SL LED will be on. If this LED is off it means that the AC power is “OFF” or has been disconnected. 2.6.3. IDE HDD LED Connector Any read and write activity by the HDD will turn this LED on. Page 20 AZZA KT33-BV Mainboard...

  • Page 22: Reset Button Connector

    2.8.2. PS/2 Mouse Connector. Connector: CN 2 Type: 6 pin female This connector only supports a PS/2 mouse plug. If a PS/2 mouse is de- tected then IRQ 12 will be directed to CN 2. AZZA KT33-BV Mainboard Page 21...

  • Page 23: Serial Port 1 (Com 1) And Serial Port 2 (Com 2) Connectors

    It can either be used to connect a joystick to the computer for game participation, or it can be used to attach an external MIDI device. All these motherboards have 3D audio interfaces onboard. SPK-OUT LINE-IN MIC-IN Page 22 AZZA KT33-BV Mainboard...

  • Page 24: Jumper Settings

    2.9. Jumper Settings Jumpers are built on the mainboard to allow the user flexibility to configure the mainboard settings to meet their specific requirements. The KT33-BV main- boards come with 4 jumpers, three 3-pin and one 2-pin jumper. When there is no jumper cap inserted into the jumper it is called “OPEN.”...

  • Page 25: Jp6: Cpu Fsb Clock

    Insert the jumper cap on Pin 2 and Pin 3 for 3 ~ 5 seconds. Pull out the jumper cap and replace it on Pin 1 and Pin 2. Turn your PC on and run the BIOS setup program Page 24 AZZA KT33-BV Mainboard...

  • Page 26: Chapter 3:- Managing The Pc Bios

    ← ← ← ← ↑ ↑ ↑ ↑ ↓ ↓ ↓ ↓ → → → → : Select Item Esc : Quit Time, Date, Hard Disk Type ... Note! BIOS software is continuously updated therefore the BIOS menus and the descriptions that are given in this manual are for reference purposes only. AZZA KT33-BV Mainboard Page 25...

  • Page 27: Standard Cmos Setup

    This mainboard supports four IDE Hard Drives. These fields allow you to set your Hard Drive parameters. Move the selection bar to the IDE Hard Drive you want to configure. Press the "ENTER" key. If you select “AUTO” the system BIOS will detect the HDD type automatically. Page 26 AZZA KT33-BV Mainboard...
  • Page 28 1024K Drive A /B The KT33-BV mainboard series can support up to two floppy disk drives. These two selection fields allow you to select the floppy drives that are in- stalled on your computer. Select the correct specifications for the diskette drive(s) installed on your computer.

  • Page 29: Advanced Bios Features

    X Typematic Rate (Chars/Sec) screen and alarm X Typematic Delay (Msec) beep. Security Option [Setup] PS/2 Mouse Function Control [Enabled] OS Select For DRAM > 64 MB [Non-OS2] HDD S.M.A.R.T Capability [Disabled] Video BIOS Shadow [Enabled] Page 28 AZZA KT33-BV Mainboard...
  • Page 30 40 or 80 tracks. Only 360-KB floppy drives have 40 tracks; drives with 720 KB, 1.2 MB, and 1.44 MB capacity all have 80 tracks. Very few modern PCs have 40-track floppy drives so we therefore recommend that you set this field to Disabled to save time. AZZA KT33-BV Mainboard Page 29...
  • Page 31 You may “enable” this option if your Hard Drive supports the S.M.A.R.T tech- nology (Self Monitoring Analysis Reporting Technology) feature. S.M.A.R.T will monitor and report your Hard Drive health status. Ask your Hard Drive vendor for more information. (Note: Using this feature may decrease system performance.) Page 30 AZZA KT33-BV Mainboard...

  • Page 32: Advanced Chipset Features

    The setting for this field will be automatically selected by the BIOS. !Current Dram Frequency The setting for this field will be automatically detected by the BIOS. The value that is selected in derived from the RAM clock. AZZA KT33-BV Mainboard Page 31...
  • Page 33 AGP without any translation. The default is 128MB. You may increase this memory when you need to have faster access for 3D graphics applications (e.g. games). !AGP Mode This item allows you to select 1x, 2x or 4x AGP mode. Page 32 AZZA KT33-BV Mainboard...
  • Page 34 You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. AZZA KT33-BV Mainboard Page 33...

  • Page 35: Integrated Peripherals

    The chipset contains a PCI IDE interface with support for two IDE channels. To activate the primary IDE interface select Enabled. If you want to disable the onboard IDE 1 and/or 2, then select Disabled. Page 34 AZZA KT33-BV Mainboard...
  • Page 36 These two selection fields allow you to select the I/O address and corre- sponding interrupts for the first and second serial port. !UART Mode Select Your system may offer a variety of infrared modes on the second serial port. The options are Standard, HPSIR or ASKIR. AZZA KT33-BV Mainboard Page 35...
  • Page 37 This item allows you to determine the I/O address and the IRQ for the on- board parallel port. The default settings are adequate and should not give you any problems. If they do you can try to change them. Page 36 AZZA KT33-BV Mainboard...
  • Page 38 Block mode is also known as block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode select “Enabled” for automatic detection of the optimal number of block read/writes per sector the drive can support. AZZA KT33-BV Mainboard Page 37...

  • Page 39: Power Management Setup

    When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. Suspend Mode When enabled, after the set time of system inactivity, all devices except the CPU will be shut off. Page 38 AZZA KT33-BV Mainboard...
  • Page 40 Soft-Off by PWRBTN Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system has “hung”. PWRON After PWR-Fail See the following table for all the options. AZZA KT33-BV Mainboard Page 39...
  • Page 41 An input signal from the modem/LAN will wake up the system from a soft off state. !RTC Alarm Resume When enabled, you can use the following two fields to select the time and date to wake up the PC system from power saving mode. Page 40 AZZA KT33-BV Mainboard...

  • Page 42: Pnp/Pci Configuration

    × × × × IRQ Resources [Press Enter] capable operating [Disabled] PCI/VGA Palette Snoop system. Select No if [Enabled] Assign IRQ For VGA you need the BIOS to [Enabled] Assign IRQ For USB configure non-boot devices. AZZA KT33-BV Mainboard Page 41...

  • Page 43: Pc Health Status

    CPU Warning Temperature This field allows you to select an operating temperature range for your CPU. If the CPU temperature moves out of this range, any warning mechanism you have programmed into your system will be activated. Page 42 AZZA KT33-BV Mainboard...

  • Page 44: Frequency/Voltage Control

    Phoenix - Award BIOS CMOS Setup Utility Frequency/Voltage Control Auto Detect DIMM/PCI Clk [Enabled] Item Help Spread Spectrum [Disabled] Menu Level ! ! ! ! X Linear Spread Model X Linear Spread Range CPU Clock [100MHz] AZZA KT33-BV Mainboard Page 43...

  • Page 45: Load Optimized Defaults

    PC. If you lose your CMOS data or you don’t know how to complete the setup pro- cedure, you may use this option to load the Optimized default values from the BIOS default table. Page 44 AZZA KT33-BV Mainboard...

  • Page 46: Set Supervisor Password

    The User Password can be used to check the user's authority. However, this password entry is different from the "SUPERVISOR PASSWORD". The User Password has a different function to the "Supervisor Password" and the "Security Option" setup in Section 3.5: AZZA KT33-BV Mainboard Page 45...
  • Page 47 2. When "System" is selected in Security Option: When you turn on your PC, you will be requested to enter the Password. With- out the correct password, the PC system will stop and the operation system will not be loaded. Page 46 AZZA KT33-BV Mainboard...

  • Page 48: Save & Exit Setup/Exit Without Saving

    CMOS RAM. If you do not want to save any of the changes, or settings you selected in the BIOS SETUP utility, move the selection bar to the “EXIT WITHOUT SAVING” option. Press the “Enter” key. Then press “Y” AZZA KT33-BV Mainboard Page 47...
