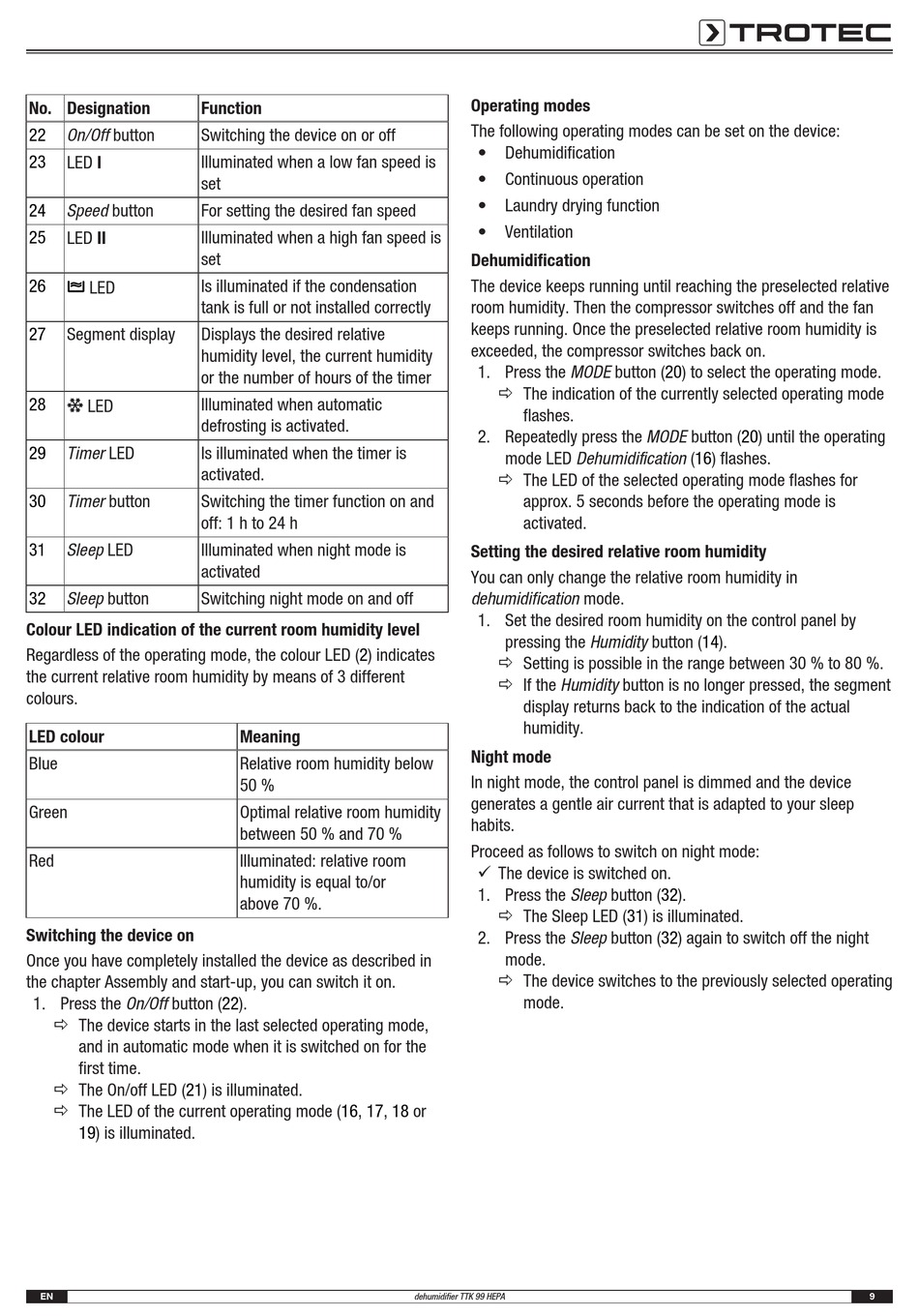

Trotec TTK 99 HEPA Operating Manual page 9

No. Designation
22 On/Off button
23
LED I
24 Speed button
25
LED II
26
LED
27 Segment display
28
LED
29 Timer LED
30 Timer button
31 Sleep LED
32 Sleep button
Colour LED indication of the current room humidity level
Regardless of the operating mode, the colour LED (2) indicates
the current relative room humidity by means of 3 different
colours.
LED colour
Blue
Green
Red
Switching the device on
Once you have completely installed the device as described in
the chapter Assembly and start-up, you can switch it on.
1. Press the On/Off button (22).
ð The device starts in the last selected operating mode,
and in automatic mode when it is switched on for the
first time.
ð The On/off LED (21) is illuminated.
ð The LED of the current operating mode (16, 17,
19) is illuminated.
EN
Function
Switching the device on or off
Illuminated when a low fan speed is
set
For setting the desired fan speed
Illuminated when a high fan speed is
set
Is illuminated if the condensation
tank is full or not installed correctly
Displays the desired relative
humidity level, the current humidity
or the number of hours of the timer
Illuminated when automatic
defrosting is activated.
Is illuminated when the timer is
activated.
Switching the timer function on and
off: 1 h to 24 h
Illuminated when night mode is
activated
Switching night mode on and off
Meaning
Relative room humidity below
50 %
Optimal relative room humidity
between 50 % and 70 %
Illuminated: relative room
humidity is equal to/or
above 70 %.
Operating modes
The following operating modes can be set on the device:
• Dehumidification
• Continuous operation
• Laundry drying function
• Ventilation
Dehumidification
The device keeps running until reaching the preselected relative
room humidity. Then the compressor switches off and the fan
keeps running. Once the preselected relative room humidity is
exceeded, the compressor switches back on.
1. Press the MODE button (20) to select the operating mode.
ð The indication of the currently selected operating mode
flashes.
2. Repeatedly press the MODE button (20) until the operating
mode LED Dehumidification (16) flashes.
ð The LED of the selected operating mode flashes for
approx. 5 seconds before the operating mode is
activated.
Setting the desired relative room humidity
You can only change the relative room humidity in
dehumidification mode.
1. Set the desired room humidity on the control panel by
pressing the Humidity button (14).
ð Setting is possible in the range between 30 % to 80 %.
ð If the Humidity button is no longer pressed, the segment
display returns back to the indication of the actual
humidity.
Night mode
In night mode, the control panel is dimmed and the device
generates a gentle air current that is adapted to your sleep
habits.
Proceed as follows to switch on night mode:
ü The device is switched on.
1. Press the Sleep button (32).
ð The Sleep LED (31) is illuminated.
2. Press the Sleep button (32) again to switch off the night
mode.
ð The device switches to the previously selected operating
mode.
18 or
dehumidifier TTK 99 HEPA 9
