Steps to Installation

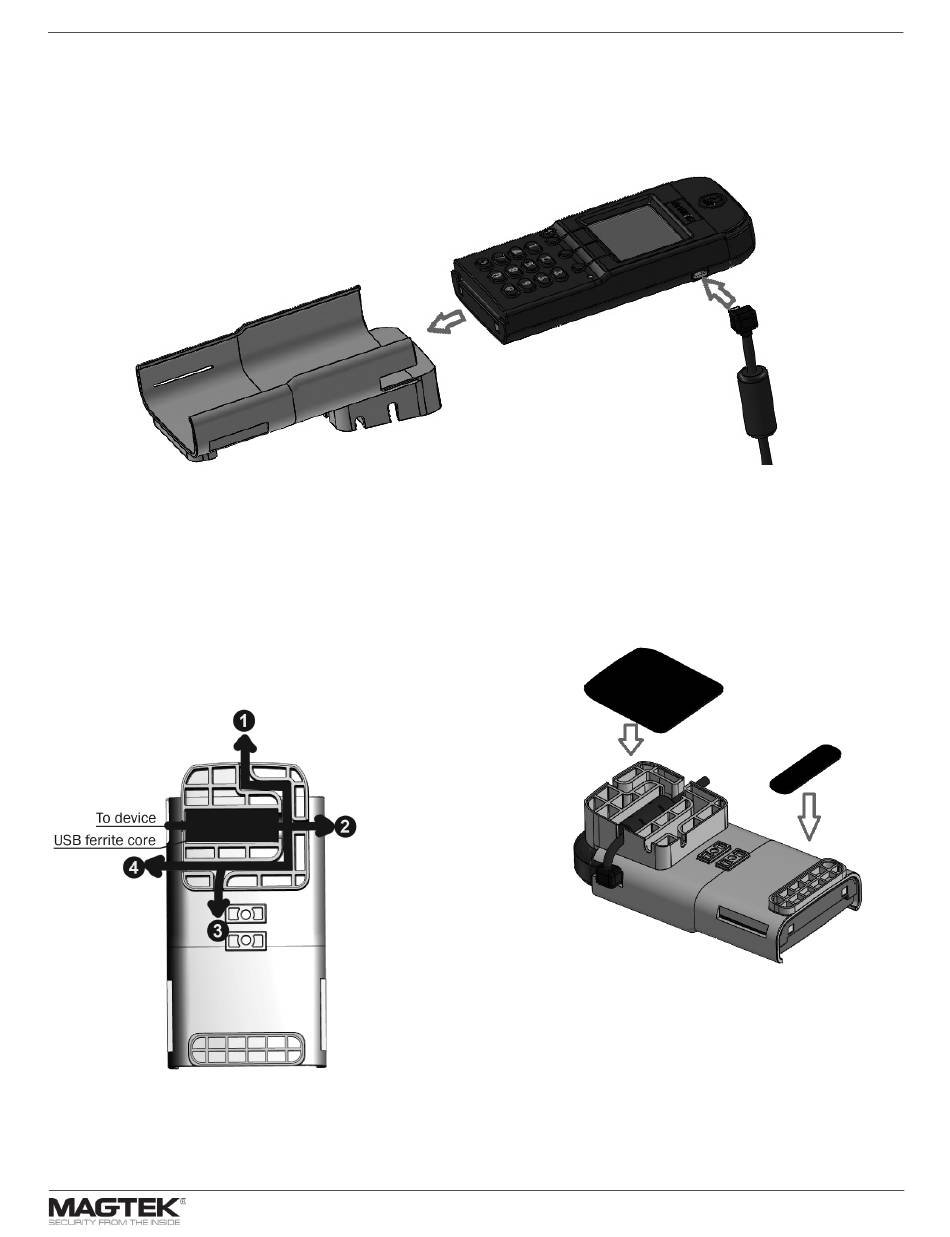

1. Place the DynaPro Go into the Cradle
Slide the DynaPro Go into the DynaPro Go Cradle housing.
2. Plug the USB cable into the DynaPro Go
Plug the micro USB cable end into the DynaPro Go with the cable falling downward
3. Route USB cable
Route the USB cable through the cable management base.
This keeps your cable securely in place and guards against
cable pull and disengagement. The USB ferrite core fits
snuggly in the center. There are 4 different cable channels
possible:
1. Top exit
2. Left side exit
3. Bottom exit
4. Right exit
MagTek Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
®
DynaPro Go Cradle - Wire Management Cradle PIN Pad Accessory
4. Apply foot pads
Peel the backer off of the foot pads, one at a time, being
careful not to touch the sticky side. Align and press the foot
pad firmly onto the cable management base, then rub across
the cable channel foot pad to remove air pockets. Align and
press the foot pad firmly onto the Cradle foot base, then rub
across the Cradle foot pad.
5. Ready to Accept Transactions
You are now ready to use your DynaPro Go and accept
transactions. You can place the Cradle on the countertop,
attach to a mount, or use as a handheld device.
Technical Support
When contacting the support team please have part number
and serial number(s) available, contact support@magtek.com
