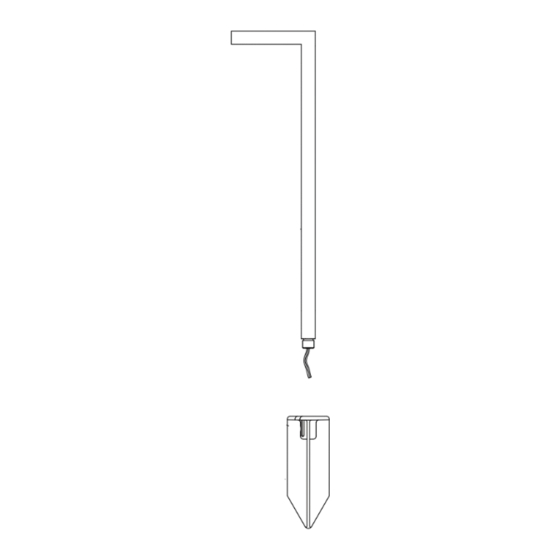

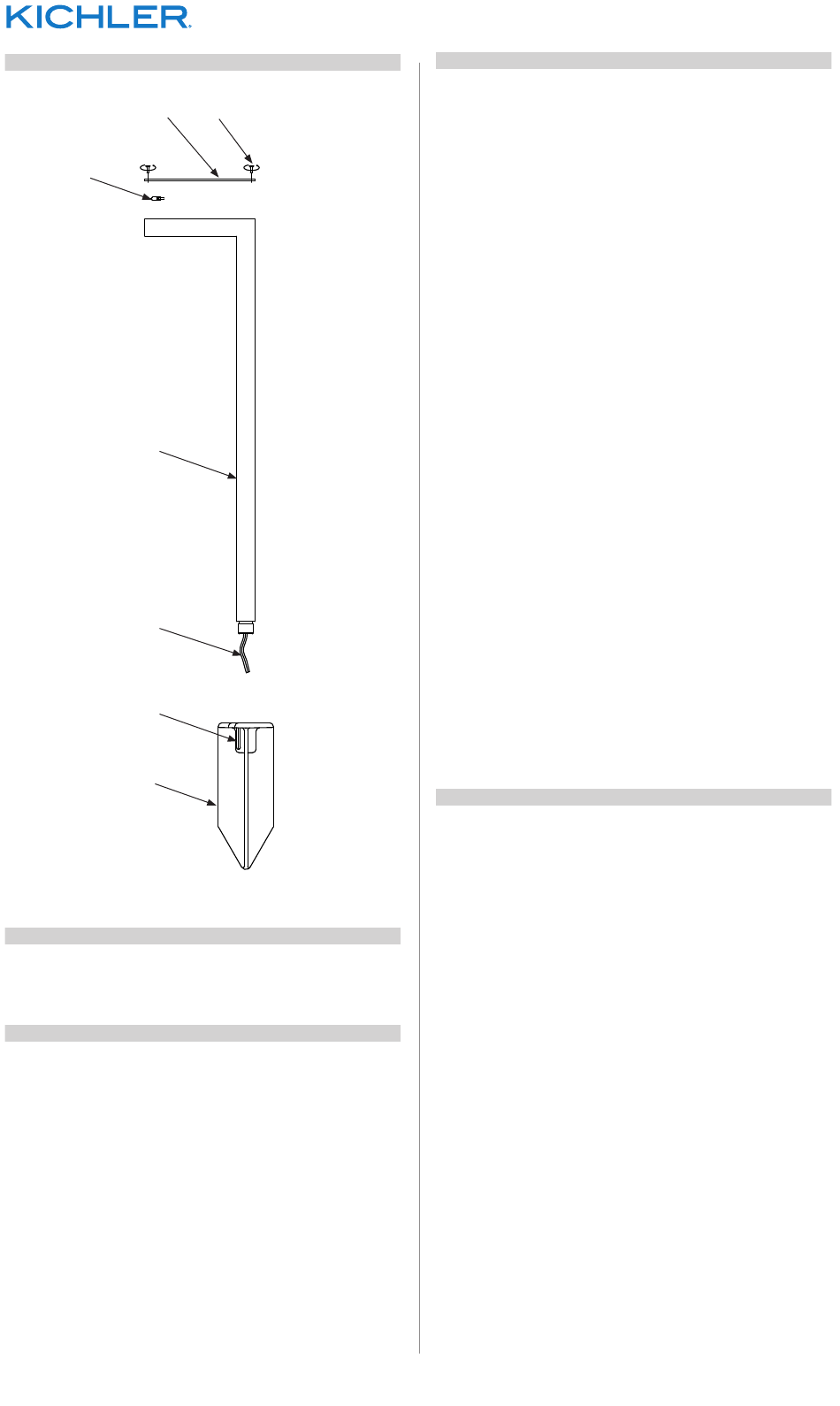

Fixture Diagram / Diagrama de Accesorios
F
E
D
C
B
A

Parts List

[A] Stake
[C] Cable
[B] Wireway
[D] Stem
Opening
[E] Lamp

Cautions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY
TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO
PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when
turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense,
it may cause "sunburn".)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any
time. Use a soft cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing
lens.
G
[F] Cover
[G] Screws
For warranty information please visit: http://www.kichler.com/warranty
Para informacion de la garantia por favor visite: http://www.kichler.com/warranty
We're here to help
Cautions (continued)

SAFETY INSTRUCTIONS

READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance
with the National Electric Code (NEC) and Local code
specifications. Failure to adhere to these codes and
instructions may result in serious injury and/or property
damage and will void the warranty.
1) WARNING: This fixture is not to be installed within 10
feet (3M) of a pool, spa or fountain.
2) This fixture is to be used only with a power unit
(transformer) rated a maximum of 300 W (25 AMPS)
15 volts.
3) The #18 ga. fixture wire is not intended for direct burial.
4) Direct burial rated wire is to be buried a minimum of 6"
[152mm] beneath the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact
your local Kichler® landscape distributor.
8 GA wire can be purchased in length of 250' (76 M),
15503-BK.
10 GA wire can be purchased in length of 250' (76 M),
15504-BK.
12 GA wire can be purchased in lengths of 100' (30
M), 15501-BK; 250' (76 M), 15502-BK; 500' (152M),
15505-BK; and 1000' (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the
fixture is marked for use with such lamps.
6) Wiring connections must be made with approved/listed
wire connection device(s) suitable for the application.
Do not exceed manufacturers' wiring combination
specifications for size and quantity of conductors.
CAUTION
When installing Kichler Landscape Lighting (line voltage
or low voltage), care should be taken to keep clear of
potentially combustible materials.
When maintaining the fixtures, be sure to remove leaves,
pine needles, grass clippings, mulch, or any debris that has
accumulated on the light bulb, lens, or body of the fixture.

Assembly and Installation

1) TURN OFF POWER.
2) Determine desired location for mounting fixture. At
desired location, hammer stake[A] into ground. To avoid
damage to stake, place a board on top of stake while
hammering or use a rubber mallet. If ground is hard and
stake is difficult to install, make a crosscut in ground
using a flat shovel.
3) Clear away area in ground at wireway opening[B] in
stake.
4) Route fixture cable[C] through wireway opening and
screw stem[D] into stake. Care should be taken to ensure
wire is not twisted. If assembly does not look straight,
adjust by pushing or pulling on stake only.
5) Install lamp[E] (not provided) into socket inside fixture.
NOTE: Use caution when installing. Use a soft cloth to
handle lamp; DO NOT touch glass envelope with bare
hands. If this happens, clean lamp with denatured
alcohol and a lint free cloth.
6) Attach cover[F] to fixture using screws[G].
7) Make wire connections using an approved wiring
connectors (not supplied.) following instructions
provided by manufacturer.
866-558-5706
Hrs: M-F 9am to 5pm EST
IS-15844-US
