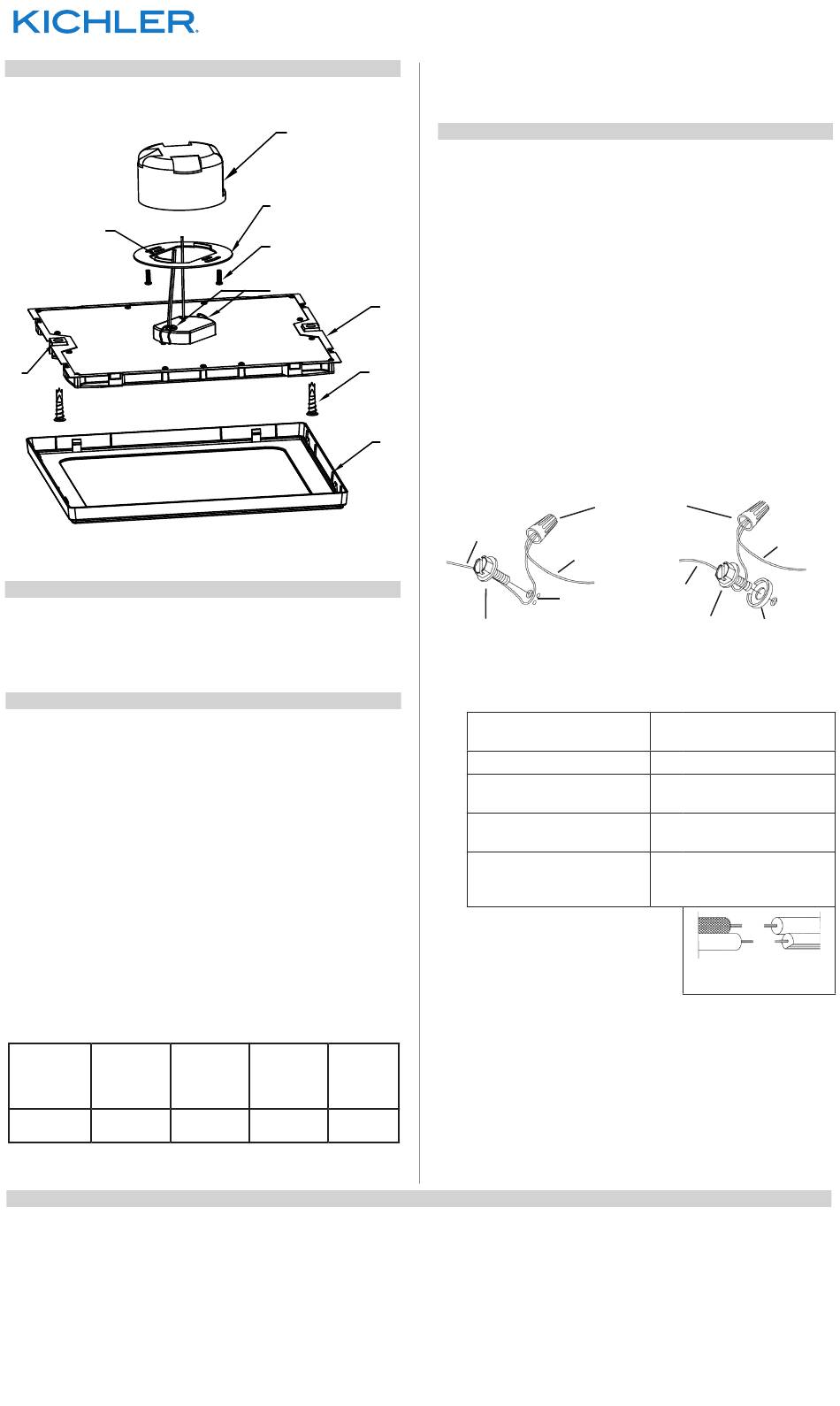

Fixture Diagram
F
G
Parts List
[A] Mounting
[D] Fixture
[E] Spring Clips
Plate
[B] Outlet Box
[F] Installation
[C] Mounting
[G] Anchor Holes
Screws
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
Warning:
This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
Kichler Zeo Junction Box Requirements
To comply with the National Electric Code (NEC), Kichler Zeo
light fixtures require a junction box with a minimum internal
volume of 18 cubic inches (in3) for installation (internal
volume is typically called out on the inside panel).
The junction boxes listed below meet the minimum
requirements. Be sure to select a size and shape that has a
depth greater than or equal to the specified minimum depth.
Junction
4"
Box Shape
Square
and
Diameter
Minimum
1-1/2"
Depth
FCC Information:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
B
A
C
E
[H] Drywall
Anchors
Screws
[I] Decorative
Bracket Tabs
Ring
4"
3"
4"
Octagonal
Round*
Round
2-1/8"
3"
2-1/4"
*Note: Due to the mounting hole configuration in many joist-
mounted 3" round junction boxes, square Zeo fixtures (44245,
44247 and 44249) may not mount square with the walls of the
room.
Installation Instructions
1) Check to make sure fixture will be oriented correctly
once installation is complete. Mounting plate can be
adjusted to suit position of fixture.
2) Remove decorative trim[I] by carefuly pressing on rear
edge until the snap clips disengage.
3) Connect fixture ground to outlet box ground using
supplied connector.
4) Grounding instructions: (See Illus. a or b).
a) On fixtures where mounting strap is provided with a
hole and two raised dimples, wrap ground wire from
D
outlet box around green ground screw, and thread
into hole.
b) On fixtures where a cupped washer is provided,
attach ground wire from outlet box under cupped
H
washer and green ground screw then thread into
mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire
connector (Not provided) after following the above
I
steps. Never connect ground wire to black or white
power supply wires.
a
OUTLET BOX
GROUND
GREEN GROUND
SCREW
5) Make wire connections. Reference chart below for
correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
*Parallel cord (round &
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
6) Position the fixture[D] over the outlet box[B] making
sure the center of the fixture is centered over the outlet
box. Align spring clips[E] and tabs[F] in mounting
bracket and insert until spring clips pull the fixture
to ceiling surface. NOTE: Be certain wires do not get
pinched between fixture and ceiling.
7) Push the drywall anchor screws[H] through the anchor
holes[G] in the fixture then screw them into the ceiling
to secure the fixture in place.
8) Install decorative trim by pressing trim firmly against
fixture until snap clips engage.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for
help.
We're here to help
WIRE CONNECTOR
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
SCREW
Connect White Supply
Black
*Parallel cord (square &
smooth)
Clear, Brown, Gold or Black
Insulated wire (other
than green) with silver
866-558-5706
Hrs: M-F 9am to 5pm EST
b
FIXTURE
GROUND
CUPPED
WASHER
Wire to:
White
ridged)
with Tracer
conductor
Neutral Wire
IS-44249LED-US
