Fixture Diagram
450 mm
[17.7 in]
320 mm
[12.6 in]
TEMPLATE
UP
D
F
E
Parts List

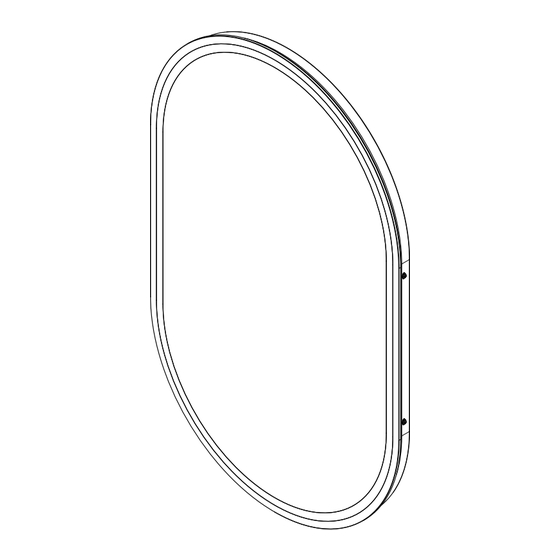

[A] Mirror
[C] #8 Screws
[B] Wall Anchors for
[D] Keyhole Slots
3/8"- 1/2" Drywall
Cautions
IMPORTANT SAFETY INSTRUCTIONS
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main fusebox before starting and
during the installation.
WARNING:
This fixture is intended for installation in accordance with the National Electrical Code
(NEC) and all local code specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
DIMMING:
This LED fixture is not compatible with wall dimmer switches. Light output can only be
adjusted by using the touch dimming switch on the bottom of the mirror.
CLEANING:
Always be certain that electric current is turned off before cleaning.
• Only a soft damp cloth should be used. Harsh cleaning products may damage the finish.
Read all instructions before using this fixture.
When using an electrical furnishing, basic precautions should always be followed,
including the following:
Read all instructions before using (this furnishing).
DANGER – To reduce the risk of electric shock:
1. Turn off mirror before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this furnishing is used by, or near children, invalids,
or disabled persons.
FCC Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1)
This device may not cause harmful interference, and
2)
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
REV 09-DEC-2020
Cautions (continued)
2. Use this furnishing only for its intended use as described in these instructions. Do not
use attachments not recommended by the manufacturer.
3. Never operate this mirror if it has been dropped or damaged, or dropped into water.
Return the mirror to a service center for examination and repair.
4. Never drop or insert any object into any opening.
5. Do not use outdoors.
6. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
7. WARNING: Risk of Electric Shock – Connect this furnishing to a properly grounded
outlet only. See Grounding Instructions.
For household and commercial use.
Fixture Rating: 86008, 120Vac, 50/60Hz, 0.530A, 65W max
Installation Instructions
1) Using the included paper template, determine the desired mounting location for the
2) Use a 5/16" drill bit to drill pilot holes at the locations marked in step 1. Insert wall
3) Screw all but 1/8" length of each #8 screw[C] into the wall anchors.
A
4) Grounding instructions:
5) Make wire connections. Reference chart below for correct connections and wire
C
B
6) Gently push mirror to the wall, carefully aligning keyhole slots in back of mirror with
[E] Touch Dimming
Switch
[F] Outlet Box
ON/OFF, Dimming, and Color Temperature Change Instructions
1) To turn the light on or off, or to change the color temperature of the light, gently tap
2) To adjust the brightness level of the light, once the light is on, gently press and hold
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
For warranty information please visit: kichler.com/warranty
SAVE THESE INSTRUCTIONS
mirror[A]. Mark the locations required for the wall anchors[B].
NOTE: Mirror can be mounted in a horizontal or vertical position, but should be
mounted so that the touch dimming switch is either at the very "bottom" of the
mirror, or on the left side of the mirror.
anchors into pilot holes.
If fixture is provided with ground wire, connect fixture ground wire to outlet box
ground wire with wire connector. Never connect ground wire to black or white power
supply wires.
accordingly.
Connect Black or Red
Connect White Supply Wire
Supply Wire to:
Black
*Parallel cord (round &
*Parallel cord (square &
smooth)
Clear, Brown, Gold or Black
Clear, Brown, Gold or Black
without Tracer
Insulated wire (other
Insulated wire (other than
than green) with copper
green) with silver conductor
conductor
*Note: When parallel wire (SPT 1 &
SPT 2) are used. The neutral wire
is square shaped or ridged and the
other wire will be round in shape or
smooth (See illus.)
the #8 screws protruding from the wall anchors. Hang mirror on the #8 screws by
carefully lowering the keyhole slots[D] in the back of the mirror onto the 1/8" length
of each #8 screw that is protruding from the wall anchors.
NOTE: When hanging the mirror, mirror should be oriented so that the narrow
portion of the keyhole slots in the back of the mirror are pointing up.
the touch dimming switch[E] on the bottom of the mirror.
tap
ON
OFF
3000K
the touch dimming switch[E] until the desired brightness setting is reached. If the
light is turned off, it will remember this brightness setting when turned back on.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
to:
White
ridged)
with Tracer
Neutral Wire
tap
tap
ON
5000K
IS-86008-US
OFF
