Kichler Lighting 2700K Quick Start Manual

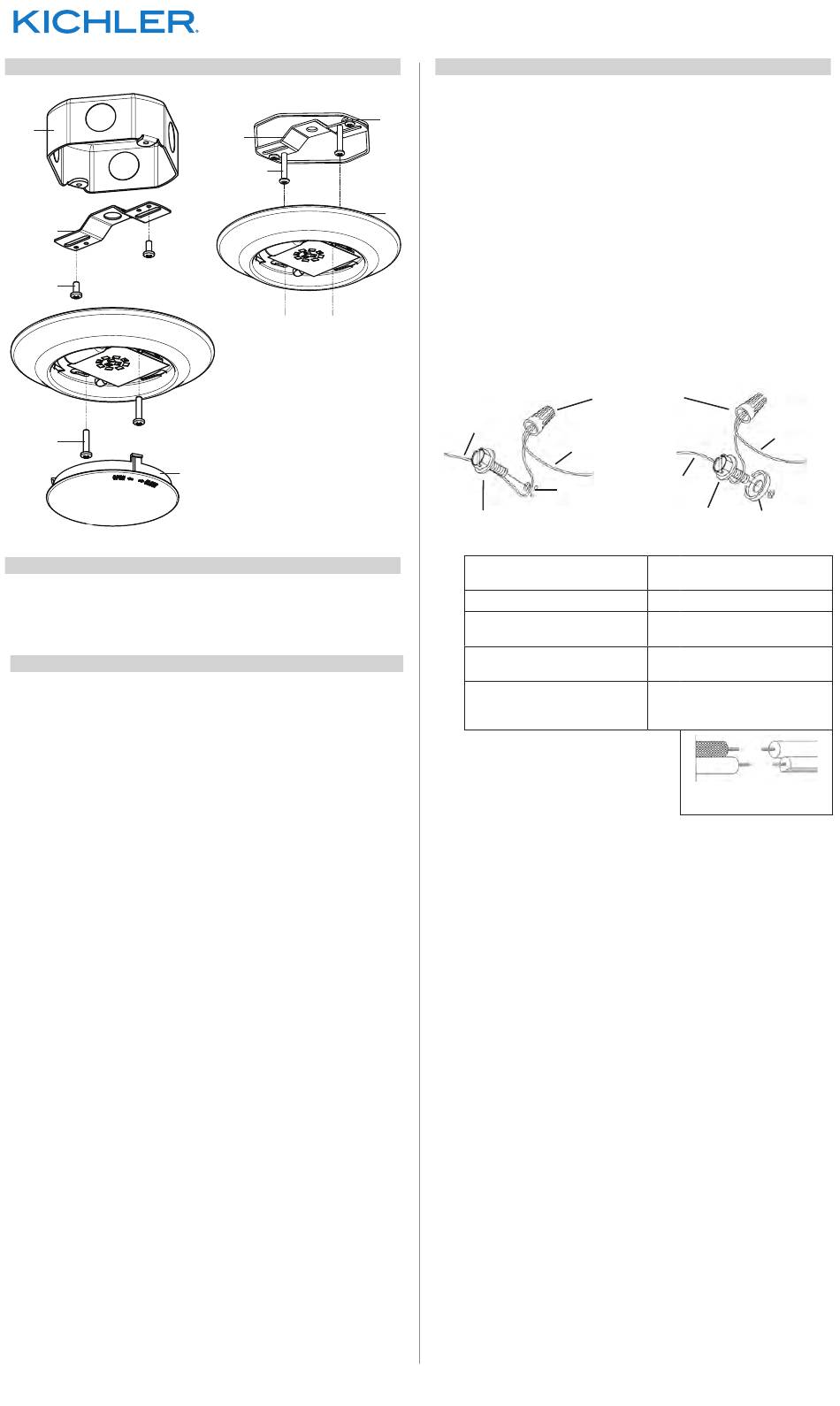

Fixture Diagram

B
A
C
D

Parts List

[A] Mounting [D] Fixture
Strap
[B] Outlet Box
[C] Mounting
Strap Screws

Cautions

CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance with the
National Electrical Code (NEC) and all local code specifications.
If you are not familiar with code requirements, installation by a
certified electrician is recommended.

DIMMING:

This LED fixture is compatible with electronic low voltage dimmers
only.
1) Read and understand all instructions and illustrations
completely before proceeding with assembly and
installation of fixture.
2) If you have any doubts about how to install this fixture, or
if the fixture fails to operate completely, please contact a
qualified electrician.
3) All parts must be used as indicated in the instructions. Do
not substitute any parts, leave parts out, or use any parts
that are worn or broken. Failure to obey this instruction
could invalidate the UL listing, C.S.A. certification, and/or
ETL listing of this fixture.
4) Fixture is to be connected to a single branch circuit.

CLEANING:

• Always be certain that electric current is turned off before
cleaning.
• Only a soft damp cloth should be used. Harsh cleaning
products may damage the finish.
REV 18-NOV-2020
A
D
Figure A
E
[E] Lens Cover
Mounting [F] Fixture
Screw
For warranty information please visit: kichler.com/warranty

Installation Instructions

1) Mounting surface should be clean, dry, flat and 1/4" larger than
the fixture housing surface.
2) Find the appropriate threaded holes on the mounting strap[A]
B
and attach mounting strap to outlet box[B] using mounting
strap screws[C] provided. These are the shorter of the two
screws.
3) Attach the fixture mounting screws[D] to mounting strap (see
figure A).
4) Remove lens cover[E] from fixture[F] by twisting lens cover
F
counter-clockwise.
5) Grounding instructions: (See Illus. a or b).
a) On fixtures where mounting strap is provided with a hole
and two raised dimples, wrap ground wire from outlet box
around green ground screw, and thread into hole.
If fixture is provided with ground wire, connect fixture ground
wire to outlet box ground wire with wire connector (Not
provided) after following the above steps. Never connect
ground wire to black or white power supply wires.
6) Make wire connections. Reference chart below for correct
connections and wire accordingly.
a
OUTLET BOX
GROUND
GREEN GROUND
SCREW
Connect Black or Red
Supply Wire to:
Black
*Parallel cord
(round & smooth)
Clear, Brown, Gold or Black
without Tracer
Insulated wire
(other than green) with
copper conductor
*Note: When parallel wire (SPT 1 &
SPT 2) are used. The neutral wire
is square shaped or ridged and the
other wire will be round in shape or
smooth (See illus.)
7) Push fixture over outlet box, carefully passing fixture mounting
screws through the slotted holes in the fixture (see figure A).
8) Secure fixture to ceiling by tightening fixture mounting screws.
9) Any gaps in the mounting surface exceeding 3/16" should be
corrected as required.
10) Replace the lens cover back on the fixture by lining up tabs on
lens and turning clockwise to lock in place.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
WIRE CONNECTOR
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
SCREW
Connect White Supply Wire
*Parallel cord
(square & ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire
(other than green) with
silver conductor
Neutral Wire
b
FIXTURE
GROUND
CUPPED
WASHER
to:
White
IS-43878-US
