CAUTION – RISK OF SHOCK – Disconnect Power at the main circuit breaker panel or
main fuse box before starting and during the installation. \
WARNING: This fixture is intended for installation in accordance with the National
Electric Code (NEC) and all local code specifications. If you are not familiar with code
requirements, installation by a certified electrician is recommended.
CLEANING: Always be certain that electric current is turned off before cleaning. Only
a damp cloth should be used. Harsh cleaning products may damage the finish.
INSTALLATION
• Read and understand all instructions and illustrations completely before proceed
ing with assembly and installation of fixture.
• If you have any doubts about how to install this fixture, or if the fixture fails to
operate completely, please contact a qualified electrician.
• All parts must be used as indicated in the instructions. Do not substitute any parts,
leave parts out, or use any parts that are worn or broken. Failure to obey this
instruction could invalidate the UL listing, C.S.A. certification, and/or ETL listing of
this fixture.
• Fixture is to be connected to a single branch circuit.
• Mounting surface should be clean, dry, flat and 1/4" larger than the fixture housing
surface.
5) END CAP
7) WIRE
CONNECTOR
4) FINIAL
8) HOLE
7) WIRE CONNECTOR
8) HOLE
Grounding instructions: (See Illus. A or B).
A)
On fixtures where mounting strap is provided with a hole and two raise dimples.
Wrap ground wire from outlet box around green ground screw, and thread into
hole.
B) On fixtures where a cupped washer is provided. Put ground wire from outlet box
under cupped washer and green ground screw and thread screw into hole in
mounting strap.
If fixture is provided with ground wire. Connect fixture ground wire to outlet box
ground wire with wire connector, (not provided) after following the above steps. Never
connect ground wire to black or white power supply wires.
A
OUTLET BOX
GROUND
GREEN GROUND
SCREW
Make wire connections. Reference chart below for correct connections and wire
accordingly.
Connect Black or
Red Supply Wire to:
Black
*Parallel cord (round & smooth)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
1)
Unthread final.
2)
Remove end cap.
3)
Remove diffuser and set aside.
4)
Unthread opposite side finial.
5)
Remove opposite side end cap.
6)
Care should be taking NOT to touch LEDs with fingers/hands. Grasp top/bottom of
LED board assembly and pull off canopy.
For models 11142LED, 11143LED, and 11144LED continue with steps 7 and 8. For
11141LED, skip to step 9.
7)
Carefully pull Wire Connector from LED board. Do NOT pull out using the wires.
Note: this step is not required for 11141LED.
Date Issued: 12/21/16

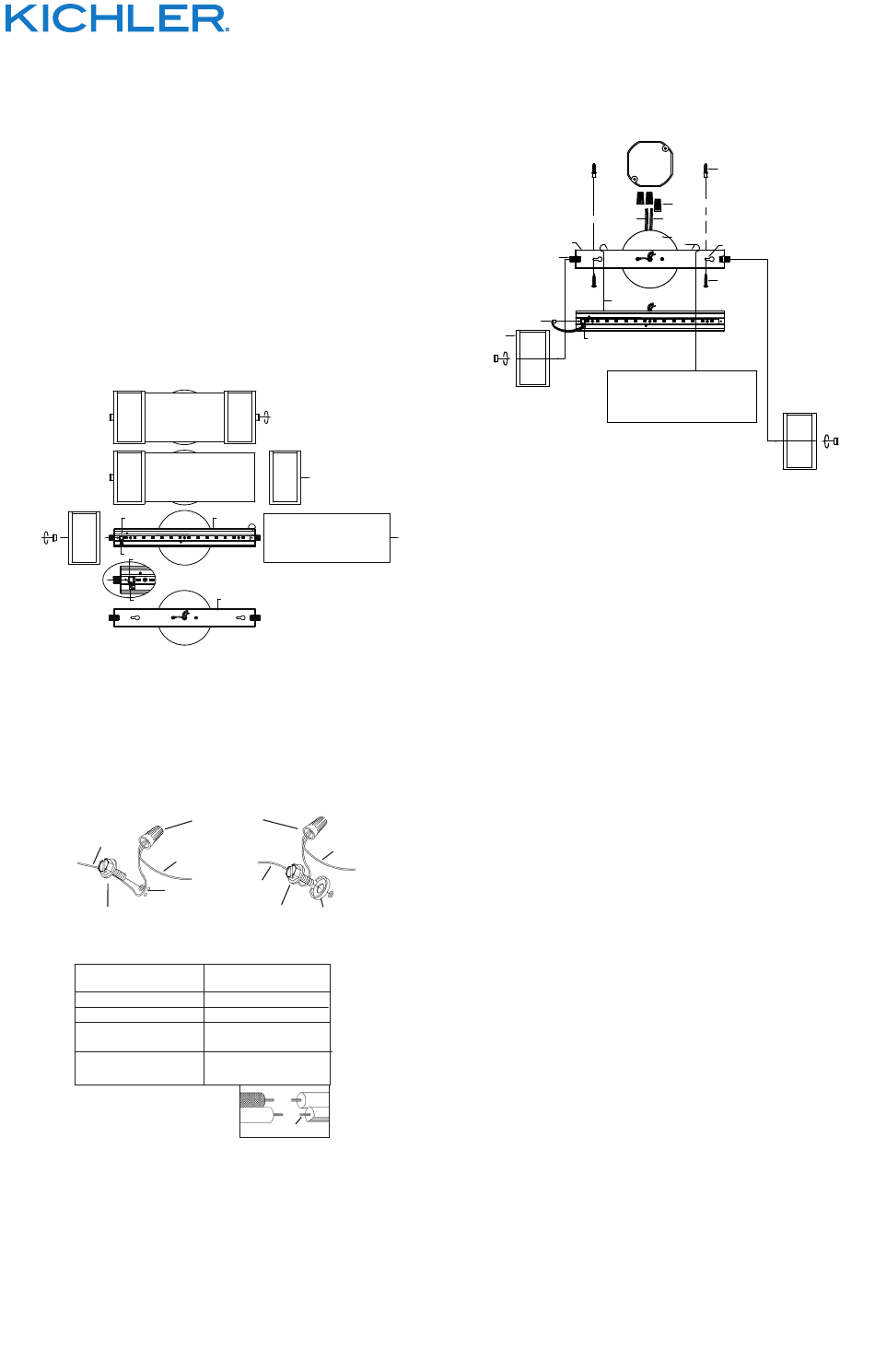

INSTALLATION INSTRUCTIONS

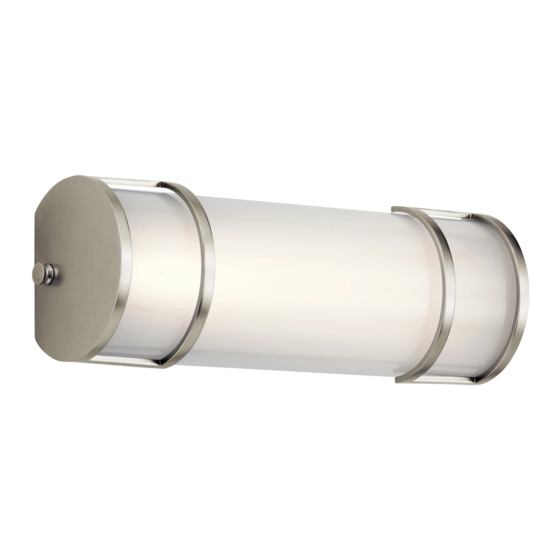

Model 11141LED / CP180252
Model 11142LED / CP180253
Model 11143LED / CP180254
Model 11144LED / CP180255
DISASSEMBLY
1) FINIAL
2) END CAP
6) LED BOARD
ASSEMBLY
CANOPY
GND
B
WIRE CONNECTOR
(NOT PROVIDED)
FIXTURE
GROUND
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
CUPPED
WASHER
SCREW
Connect
White Supply Wire to:
White
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
Neutral Wire
8)
Pass Connector thru hole in LED Front Cover. Set LED Board assembly aside.
Note: this step is not required for 11141LED.
THREADED NIPPLE
19) WIRE CONNECTOR
21) END CAP
FINIAL
9)
Position Fixture over outlet box and center back Round Cover over outlet box.
10) Level Fixture either horizontal or vertical and mark center of small side of Keyhole
slots. Remove Fixture from outlet box and set aside.
11) Find drill bit smaller than size of Plastic Wall Anchors and drill on marks. Install
3) DIFFUSER
Plastic Anchors into wall and tap until flush with wall.
12) Insert Mounting Screws into Wall Anchors and tighten leaving approximately 1/4" of
thread length.
13) Attach the grounding conductor to Ground Wire(s) from Fixture using provided
connectors. Never connect black or white power supply wires to the grounding
screw.
14) Make wire connections with provided connectors. Connect Black Wire to black
wire. Connect White Wire to white wire.
15) Carefully push wire connections back into outlet box making sure all connections
remain secure.
16) Place Fixture over outlet box carefully passing the two Mounting Screws through
keyholes in the Fixture. Slide Fixture over to small side of Keyholes.
17) Tighten Mounting Screws to secure Fixture to wall.
18) Pass wire connector thru Hole in LED Board Assembly.
19) Carefully insert Connector back into LED Board. Connector is keyed and only fits
one way. Push excess wire inside hole.
20) Guiding excess wires into Canopy, snap LED Board Assembly onto canopy.
21) Install one side End Cap (or bottom if mounted vertically). Thread finial on threaded
nipple and tighten to secure.
22) Pass diffuser over fixture and slide into end cap. While holding Diffuser in position,
install other End Cap. Thread Finial onto Threaded Nipple and tighten to secure.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
We're here to help
OUTLET BOX
WIRE CONNECTORS
13) GROUND WIRES
14) BLACK/WHITE WIRES
9) FIXTURE BACK COVER
CANOPY
GND
20) LED BOARD ASSEMBLY
18) HOLE
22) DIFFUSER
SEE OTHER SIDE FOR SPANISH TRANSLATIONS.
VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.
866-558-5706
Hrs: M-F 9am to 5pm EST
11) PLASTIC WALL ANCHORS
10) KEYHOLES
12) MOUNTING
SCREWS
END CAP
FINIAL
IS-11141LED-US
