- Page 1 Outdoor Network Waterproof Column Speaker User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. G u a n g z h o u D S P PA A u d i o C o . , L t d .
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the Outdoor Network Waterproof Column Speaker POE6368. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center.
-
Page 3: Table Of Contents
1.1 About POE6368 Network Column Speaker....................1 1.2 Specification..............................1 2. Appearance Description............................1 3. Connection Diagram..............................2 3.1 System Application Diagram of POE6368.....................2 4. Setup Instruction of POE6368 on the host....................... 3 5. Installation Diagram..............................4 6. Performance indicator diagram..........................4 Safety precautions.................................5 Packing list..................................6... -
Page 4: Product Description

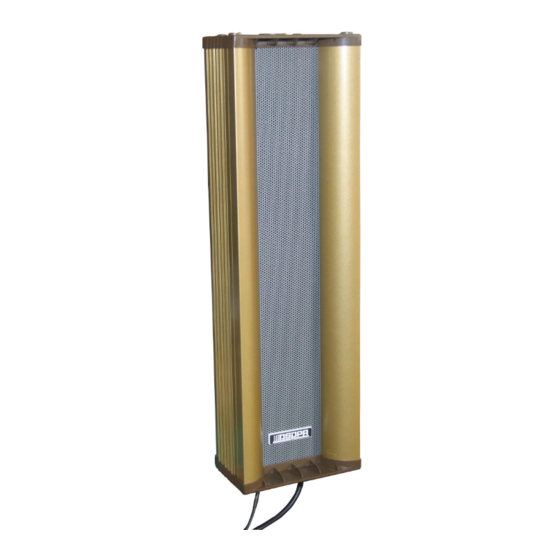

1.1 About POE6368 Network Column Speaker POE6368 is a full digital analog conversion signal processor with high fidelity speaker based on the TCP / IP protocol network which is able to realize the overall design of processor and column speaker. It can be installed at any place where there is network. -
Page 5: Connection Diagram
2. It is illustrated by examples in the above figure. For specific connections, please refer to the schematic diagram of system connection. 3. POE6368 must be connected in the system through IEEE 802.3at standard interface, and the corresponding address shall be arranged for connection with the host. -
Page 6: Setup Instruction Of Poe6368 On The Host
* Network PA System Network Column Speaker 4. Setup Instruction of POE6368 on the host This speaker can be customized to modify the network parameters. Please read this section in detail if you want to use this feature Method 1: 1. -
Page 7: Installation Diagram
* Network PA System Network Column Speaker Installation Diagram Installation Methods: Install the randomly attached wall-mounted orifice on the upper part of the back of the sound column and pay attention to the direction of the wall-mounted orifice (See the above diagram on the left); Select the appropriate position on the façade where the sound column needs to be installed and install a nail with a diameter of 5mm, leaving a 5-8.5mm distance between the pins and the wall;... -
Page 8: Safety Precautions
For the non-mentioned problem or precautions in the instruction, please contact the dealer or visit our company's web page http://www.DSPPA.com; http://www.dsppatech.com In case of failure in the warranty period, please contact our company's service personnel (or contact the ... -
Page 9: Packing List
* Network PA System Network Column Speaker Packing list List Quantity 3000mm/8mm Network cable Crystal head User Manual Certificate/Warranty Card 08 Big bend piece of hanger frame (spraying) 08 Small bend piece of hanger frame (spraying) 08 Straight piece of hanger frame (spraying) TTM8 Outer Hexagon Nut/colorful TT8×14 Hexagon Nut/colorful Specification... - Page 10 The device is connected via a power cord and power supply when device happens damage or danger, unplug the power cord can disconnect the device from the grid, so it requires to place the power outlet on where can easily do power cord plug operation. Guangzhou DSPPA Audio Co., Ltd.
